TSD Portrait OLED SH1107 Controller 128*64 dots 0.96 inch Oled Display

  • Model Name: TSO12864-A04
  • Type: 0.96 inch OLED Display
  • Color: White
  • Dot Matrix: 128x64 dots
  • Driver IC: SH1107
  • Interface: 4 wire SPI, I2C
  • Drive Duty: 1/64
  • Dot Pitch: 0.17x0.17
  • Module Weight: 1.99g
  • Operating Temperature: -40 ~ +70℃
  • Storage Temperature: -40 ~ +85℃

Description:



Team Source Display model TSO12864-A04 is a monochrome OLED display module with 128×64 dot matrix. The characteristics of

this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, 4-wire SPI, I2C interface. high technology for low consumption without backlight. the structure is very thin, and available to add with touch screen or cover glass on top.

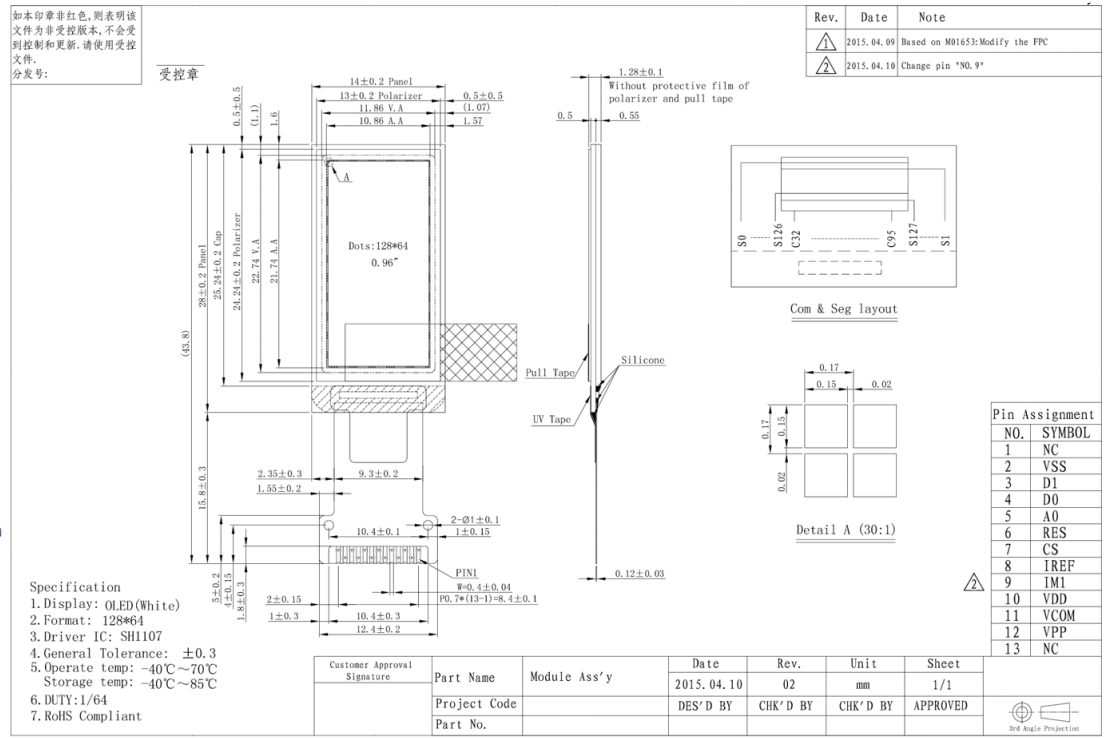

Drawing:

www.tslcd.com




Specifications:



General Specification
Display mode
0.96'' OLED Monochrome Display
Part No.  TSO12864-A04
Outline Dimension(mm)

14(W)x28(H)x1.28(D)

Active Area(mm) 10.86(W) x 21.74(H)
Resolution(dots) 128×64 dots
Dot Size 0.15x0.15mm
Color White
Operating temperature(°C) -40 ~ +70°C
Storage temperature(°C) -40 ~ +85°C
Operating Voltage
3V
Touch panel  could support with cover glass and touch screen
Driver IC SH1107
Interface 4 wire SPI, I2C
Duty 1/64
Weight(g) 1.99g
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Module lifetime(Hours) 30,000-50000





Pin No.  Symbol Description
1 NC Not conenct
2 VSS
Ground pin.
3 D1
Serial data input PIN
4 D0
Serial clock input PIN
5
A0
This pin is Data/Command control pin connecting to the MCU.
6
RES
reset signal input pin
7 CS
This pin is the chip select input connecting to the MCU.
8
IREF
This pin is the segment output current reference pin.
A resistor should be connected between this pin and VSS.
9
IM1
MCU bus interface selection pins.Table 5-1
10
VDD
VDD must always set to be equivalent to or higher than VDD.
11 VCOM
COM signal deselcted voltage level.
A capacitor should be connected between this pin and VSS. No external power supply
is allowed to connect to this pin.
12 VPP
Power supply for panel driving voltage.
13 NC Not connect




Applications:



For this 0.96 inch white OLED Display 128x64 resolution, suitable for Industrials Equipment,

Medical devices, Household appliances, consumer products.




Product Features:



1. Wide temperature range.

2. Low power consumption.

3. Thin and light structure
