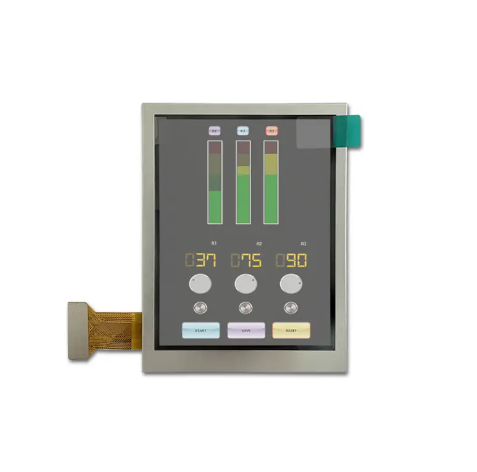

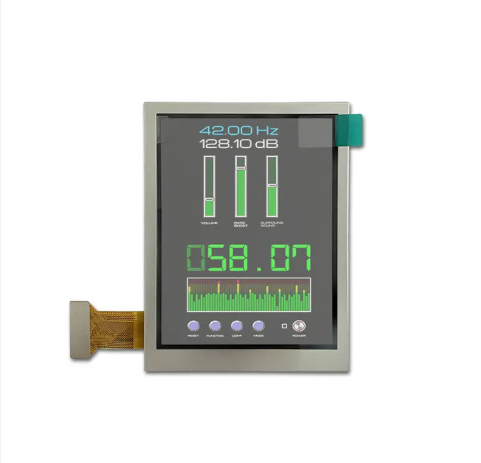

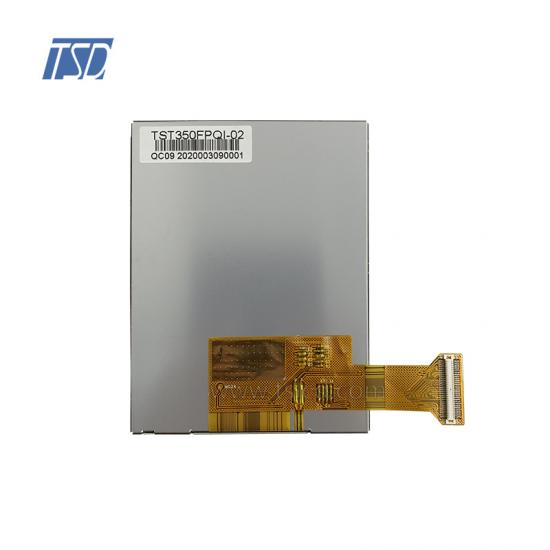

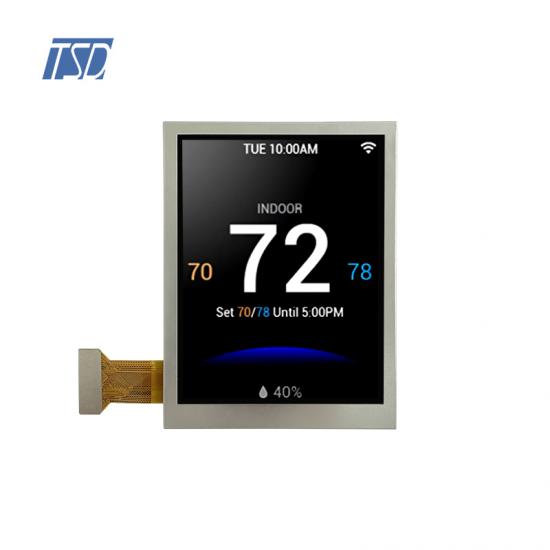

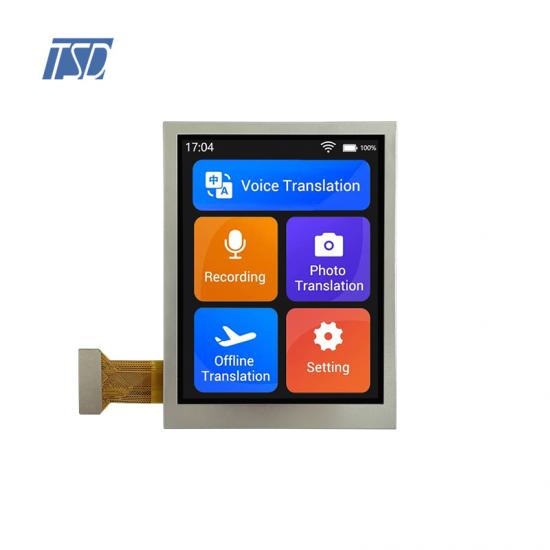

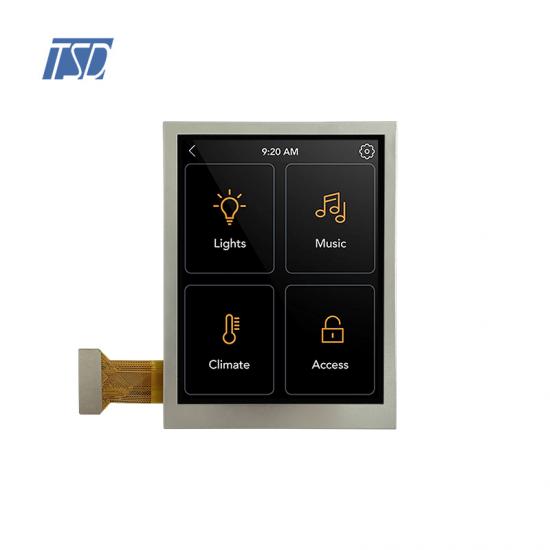

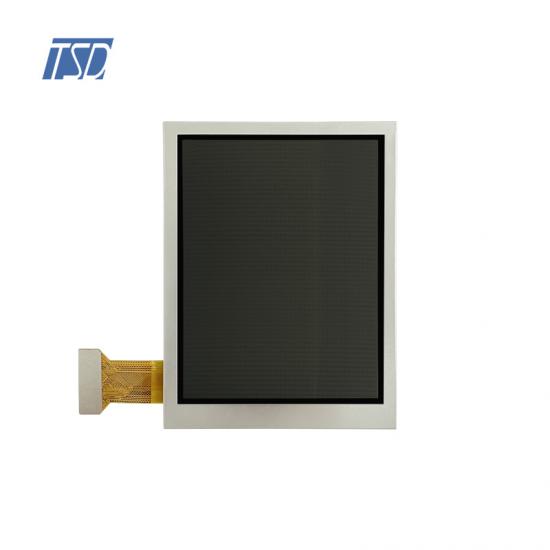

TSD 3.5 Inch TFT LCD Customization lcd panel 240*320 resolution

Part number: TST350FPQI-02

Resolution: 240*320

View Direction: All o’clock

Active area: 53.64 (W) x 71.52(H)

LCM: 64(W) x85(H) x 4.2(D)

Driver IC: ILI9341V

Backlight: 6 LEDs

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:

TST350FPQI-02 is a transmissive type color active matrix liquid crystal display which uses amorphous thin film transistor as switching devices. this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 3.2 inches diagonally measured and the native resolution is 240*320. feathers of this product are listed in the following table.

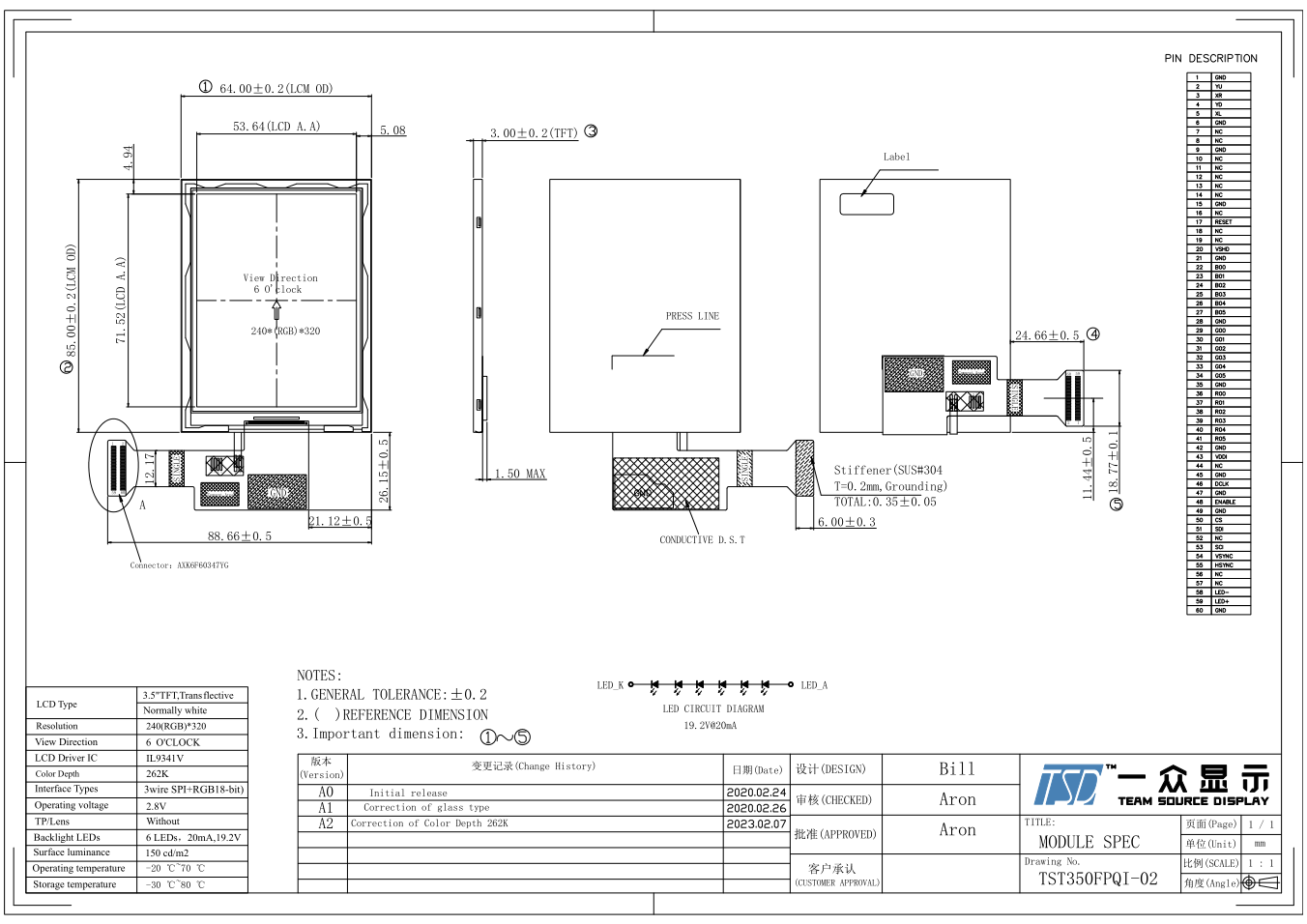

Drawing:



Specification



General Specification

Part No.

TST350FPQI-02P

Display Size(Diagonal)

3.5 inch

LCD type

TFT,Transflective,Normally white

Resolution

240 x (RGB) × 320

View Direction

ALL o’clock

Module Outline

64(W) x85(H) x 4.2(D)

Active Area

53.64 (W) x 71.52(H)

Viewing Area

ALL o’clock

Back light

6 LEDs

Driver IC

ILI9341V

Interface

3wire SPI+RGB18-bit

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-2070

Storage Temperature

-3080



Pin No.

Symbol

Description

1

VL1

Anode of LED(High voltage)

2

GND

Power ground

3

VL2

Cathode of LED(Low voltage)

4

GND

Power ground

5

VSHD

Power supply for digital

6

GND

Power ground

7

GND

Power ground

8

GND

Power ground

9

VSYNC

Vertical sync. in RGB mode

10

GND

Power ground

11

R ESET

Reset(Low active)

12

GND

Power ground

13

GND

Power ground

14

GND

Power ground

15

CS

Chip select input(Low enable)

16

GND

Power ground

17

SDO

Serial data output

18

SD1

Serial data input

19

GND

Power ground

20

SCL

Serial interface clock

21

GND

Power ground

22

B5

Blue data bus

23

B4

Blue data bus

24

B3

Blue data bus

25

B2

Blue data bus

26

B1

Blue data bus

27

B0

Blue data bus

28

ENAB

Display enable pin from controller

29

GND

Power ground

30

HSYNC

Horizontal sync. in RGB mode

31

GND

Power ground

32

DCLK

Pixel clock signal in RGB mode

33

GND

Power ground

34

G5

Green data bus

35

G4

Green data bus

36

G3

Green data bus

37

G2

Green data bus

38

GI

Green data bus

39

G0

Green data bus

40

GND

No connect

41

R5

Red data bus

42

R4

Red data bus

43

R3

Red data bus

44

R2

Red data bus

45

Rl

Red data bus

46

RO

Red data bus

47

GND

Power ground

48

GND

Power ground

49

GND

Power ground

50

GND

Power ground





 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
