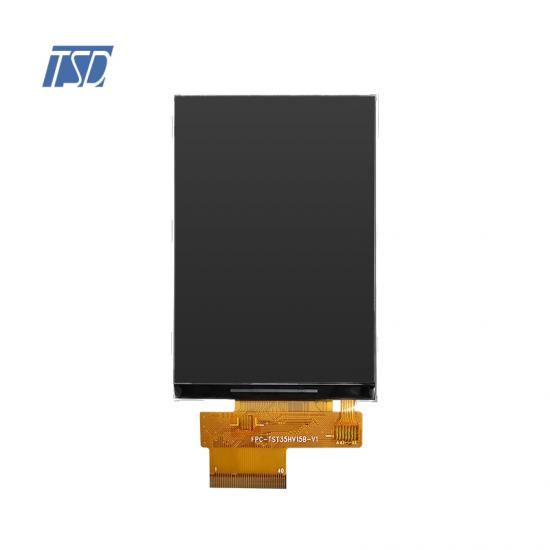

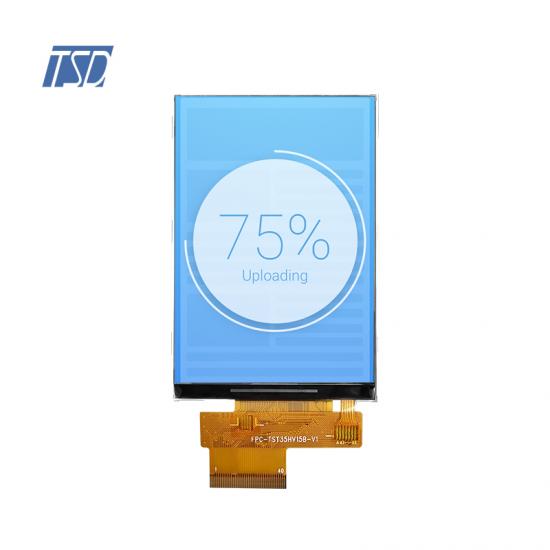

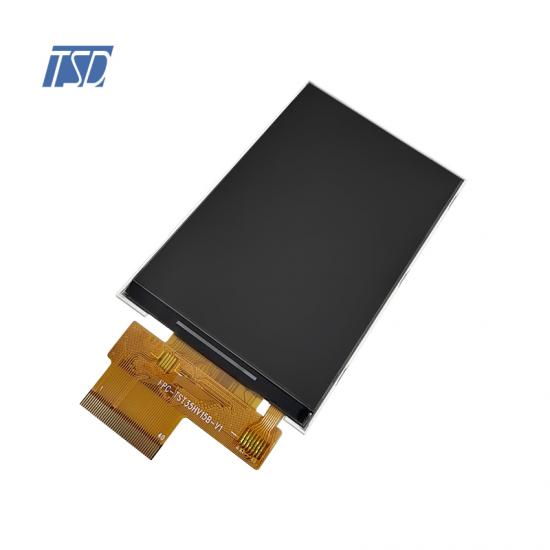

Description:
TST035HVSI-53 is a color active matrix TFT-LCD Panel using amorphous silicon TFT's as an active switching devices. this model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 48.96 (W) x 73.44 (H) mm diagonally measured active area with 320 x (RGB) × 480 resolutions.

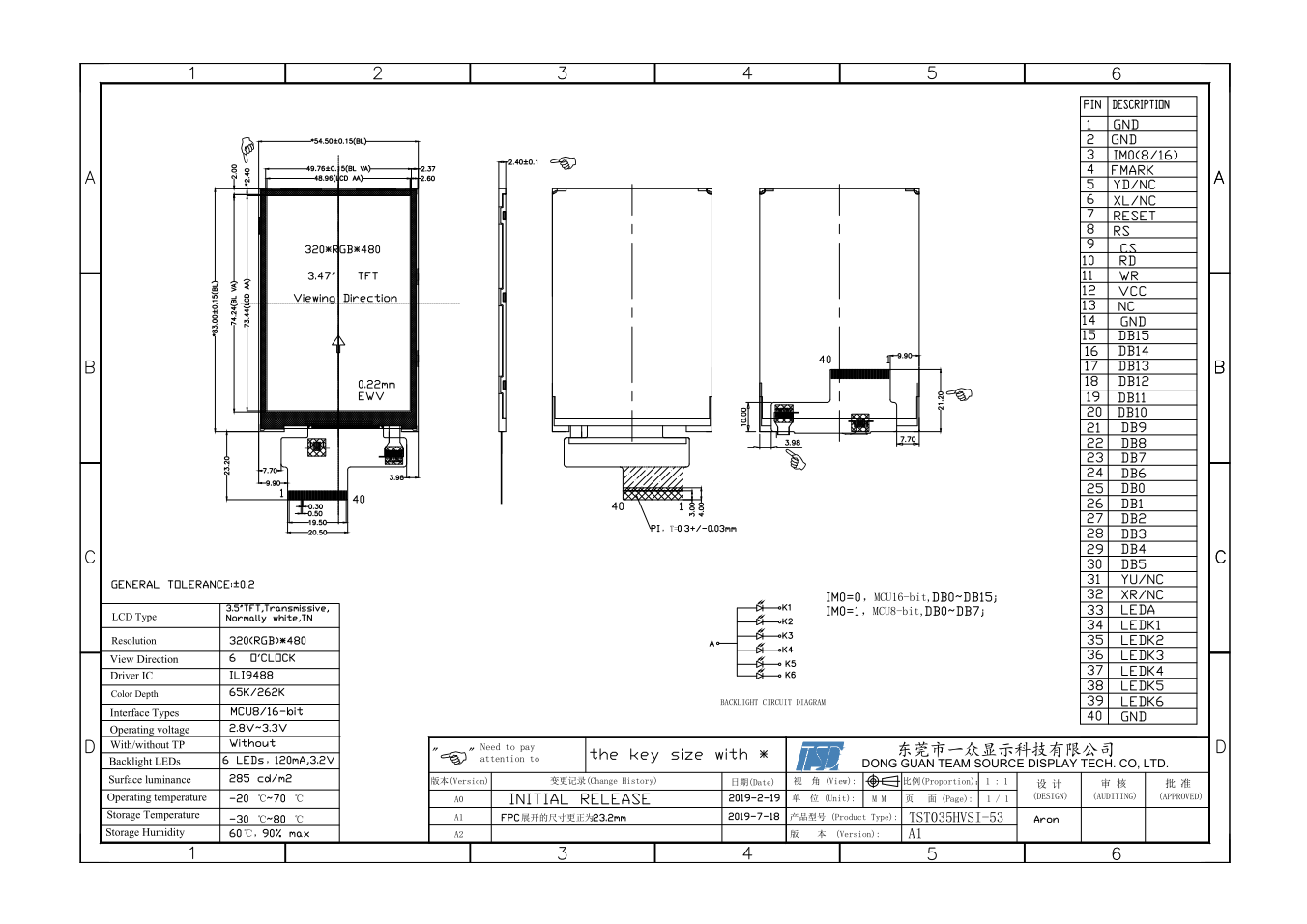

Drawing:
Specifications:
|
General Specification |
||
|
Part No. |
TST035HVSI-53 |
|
|
Outline Dimension(mm) |
54.5(W) x 83.0(H) x 2.4(D) |
|
|
Active Area(mm) |
48.96 (W) x 73.44 (H) |
|
|
Resolution(dots) |
320 x (RGB) × 480 |
|
|
Operating temperature(°C) |
-20 ~ +70°C |
|
|
Storage temperature(°C) |
-30 ~ +80°C |
|
|
Brightness |
285cd/m2 |
|
|
Touch panel |
No |
|
|
Pixel arrangement |
RGB-stripe |
|
|
Display mode |
Normal black, IPS |
|
|
Surface treatment |
Antiglare |
|
|
View direction |
All o'clock |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
|
B/L system |
TBD(Typ.) |
|
Interface |
MCU 8/16-bit |
|
|
Ic |
ILI9488 |
|
|
Pins Description |
||
|
Pin No. |
Symbol |
Description |
|
1 |
GND |
System Ground. (0V) |
|
2 |
GND |
System Ground. (0V) |
|
3 |
IM0 |
IM0=0: MCU16-BIT, DB0~DB15 IM0=0: MCU16-BIT, DB0~DB15 |
|
4 |
FMARK |
Tearing Effect output signal |
|
5 |
NC |
Reset input signal |
|
6 |
NC |
Chip select signal |
|
7 |
RESET |
Reset input signal |
|
8 |
RS |
Data/Command Selection pin |
|
9 |
CS |
Chip select signal. |
|
10 |
RD |
read signal |
|
11 |
WR |
serves as a write signal |
|
12 |
VCC |
Power supply +2.8V |
|
13 |
NC |
|
|
14 |
GND |
System Ground. (0V) |
|
15~24 |
DB15~DB6 |
Data BUS |
|
25~30 |
DB0~DB5 |
Data BUS |
|
31 |
NC |
No connect |
|
32 |
NC |
No connect |
|
33 |
LEDA |
Backlight A Aothod input pin. |
|
34~39 |
LEDK1~LEDK6 |
Backlight K Cathode input pin. |
|
40 |
GND |
System Ground. (0V) |
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
