TSD 128*64 oled display FSTN /Positive/ Transflective

LCD Type : FSTN /Positive/ Transflective

Driver Condition : 1/65 duty, 1/9bais

Viewing Direction 6 O’clock

Backlight Color White Color

Module weight: About 22.0g

Interface:  6800/8080

LCD driver IC: ST7567S-G4

ROHS2.0 : YES

Description:

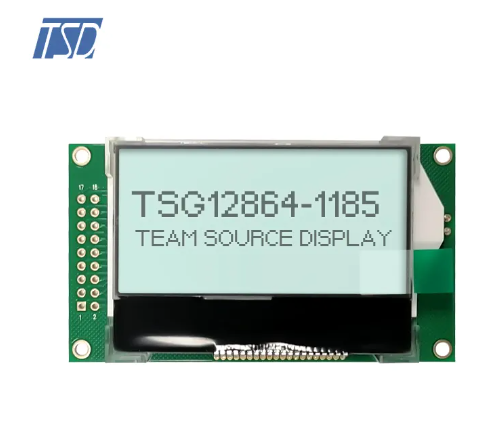

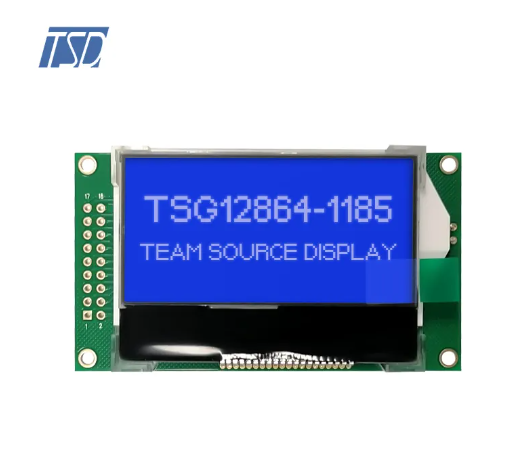

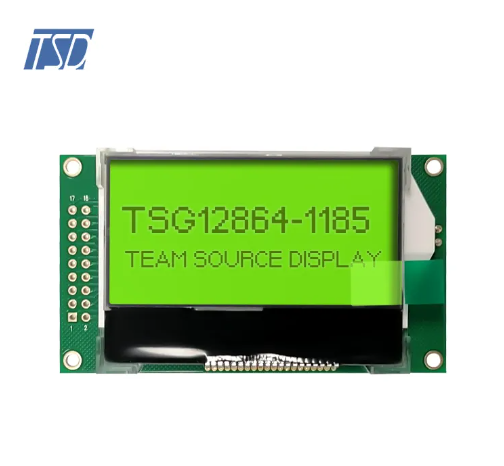

TSG12864-1185 is 1.3 inch 128*64 Dots resolution mono LCD display with 6800/8080interface, weight is about 22g. For this mono lcd module, driver IC is ST7567S-G4, viewing direction is 6 O’clock , Active Area is 46.05(L) * 23.01(w), this lcd module is without standard Capacitive touch panel, customized design are also welcome.

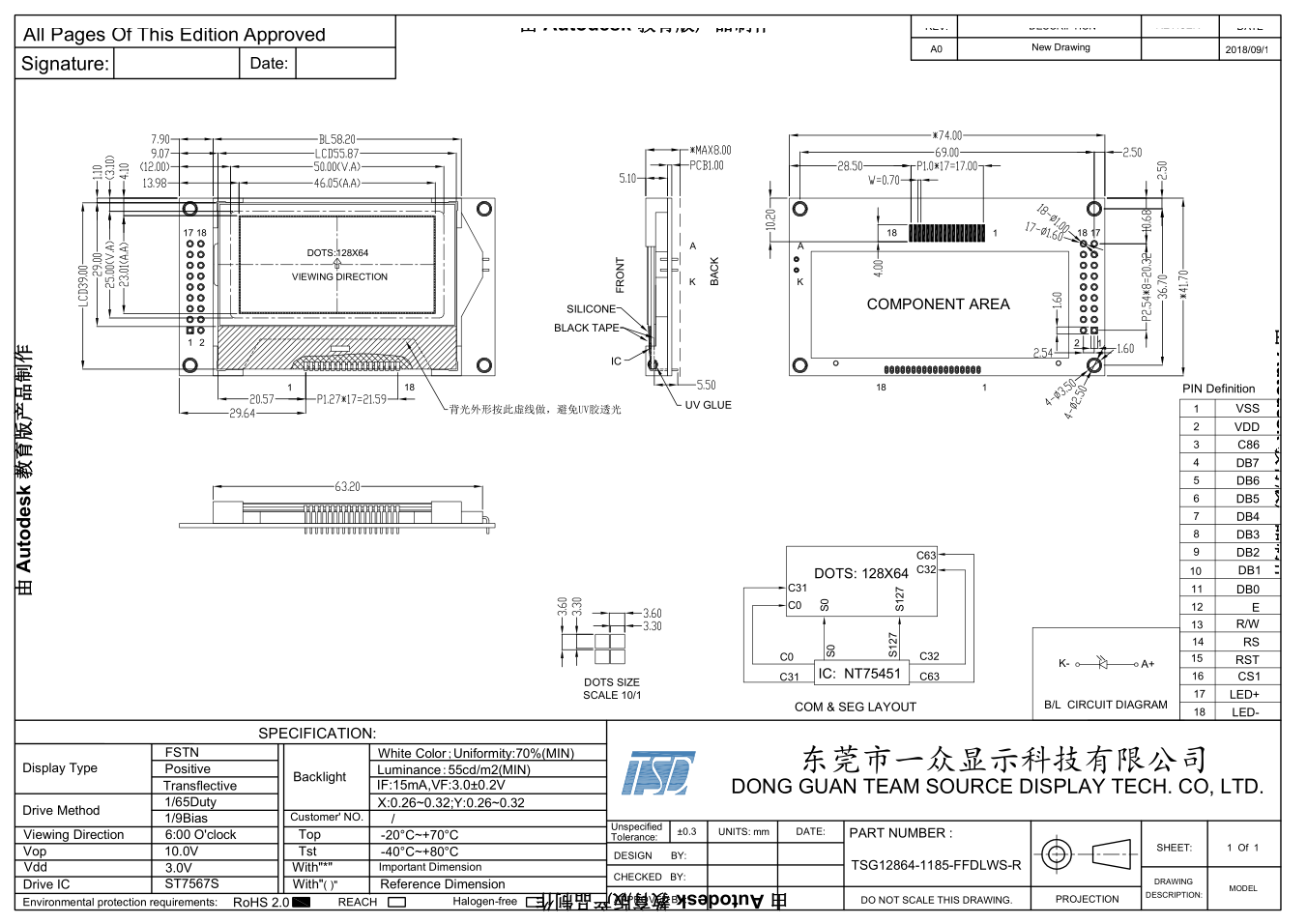

Drawing:





Specification



General Specification

Display Type

128*64 Dots

LCD Type

FSTN /Positive/ Transflective

Driver Condition

1/65 duty, 1/9bais

Viewing Direction

6 O’clock

Backlight Color

White Color

Module weight

About 22.0g

Interface

6800/8080

LCD driver IC

ST7567S-G4

ROHS2.0

YES

Outline Dimension

58.20(L) *39.00(w) *8.00 (H) (Exclude the pin)

Viewing Area

50.00(L) * 25.00(w)

Active Area

46.05(L) * 23.01(w)

Dots Size

0.33(L) *0.33(w)



Pins Description

Pin No.

Symbol

Description

1

VSS

Power Ground

2

VDD

Main Power supply for the LCM

3

C86

This is the MPU interface selection pin.

C86 = “H”: 6800 Series MPU interface.

C86 = “L”: 8080 Series MPU interface.

4

DB7

8-bit Bi-direction databus D[7:0].



5

DB6



6

DB5



7

DB4



8

DB3



9

DB2



10

DB1



11

DB0



12

RD(E)

Enable clock input for 6800 series MPU

13

RW(R/W)

Read/Write signal for 6800 series MPU.

14

RS

Command/Data selection control pin.H for display data and L for

command data



15

/RST

Hardware reset pin. Low active

16

/CS1

Chip selection control pin. Low active

17

LED+

LED anode .

18

LED-

LED cathode



Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
