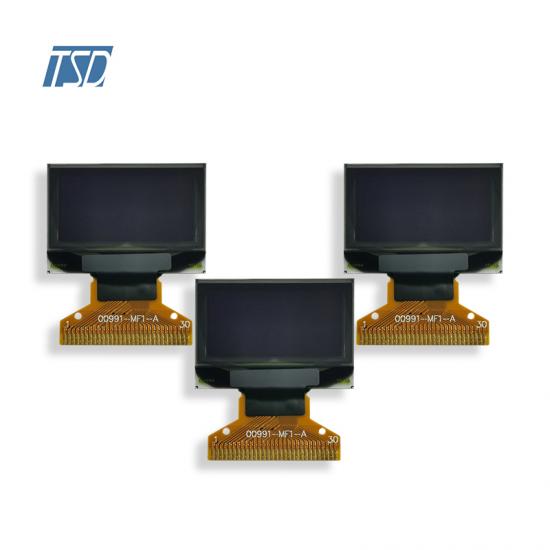

TSD Small OLED Display 128*64 dots 0.96 inch white Oled Module

  • Model Name: TSO12864-A07
  • Type: 0.96 inch OLED Display
  • Color: White
  • Dot Matrix: 128x64 dots
  • Driver IC: SH1106G
  • Interface: SPI, I2C
  • Drive Duty: 1/64
  • Dot Pitch: 0.17x0.17
  • Operating Temperature: -40 ~ +70℃
  • Storage Temperature: -40 ~ +85℃



Description:



Team Source Display model TSO12864-A07 ismonochrome OLED display module with 128×64 dot matrix. The characteristics of

this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C interface. high technology for low consumption without backlight. the structure is very thin, and available to add with touch screen or cover glass on top.

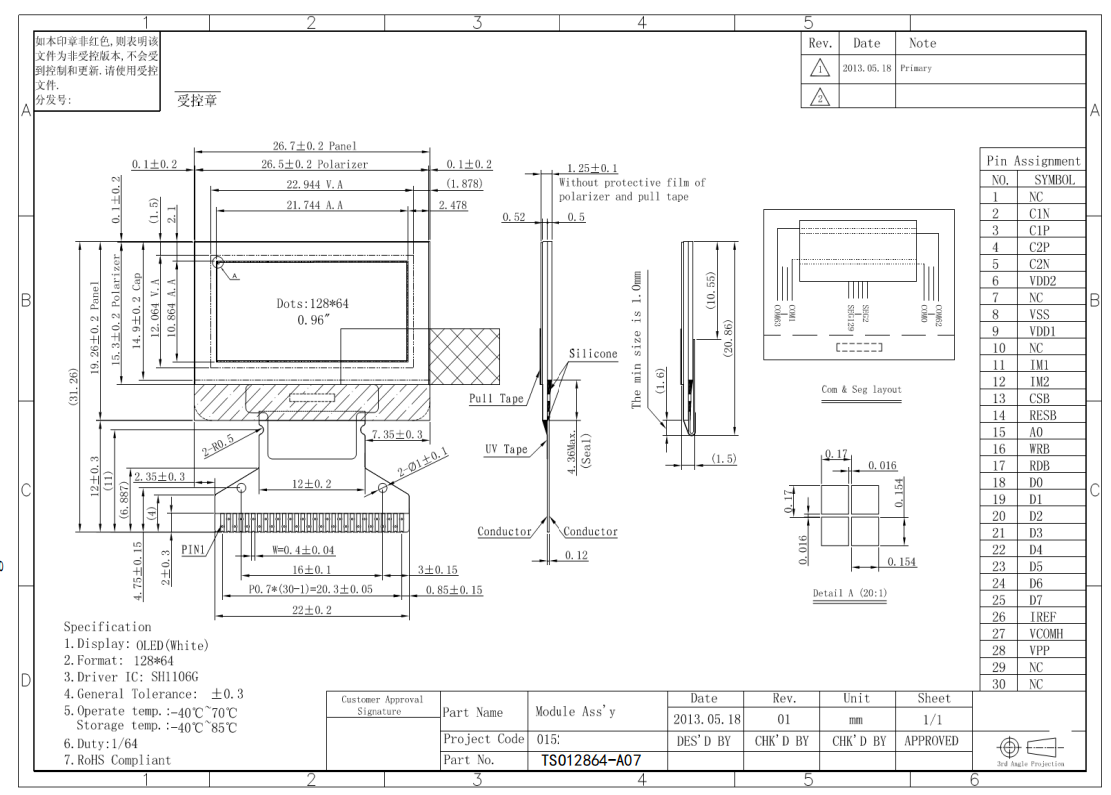

Drawing:




Specifications:



General Specification
Display mode
0.96'' OLED Monochrome Display
Part No.  TSO12864-A07
Outline Dimension(mm)

26.7(W)x31.26(H)x1.25(D)

Active Area(mm) 21.74(W) x 10.86(H)
Resolution(dots) 128×64 dots
Color White
Operating temperature(°C) -40 ~ +70°C
Storage temperature(°C) -40 ~ +85°C
Operating Voltage
3V
Touch panel  could support with cover glass and touch screen
Driver IC SH1106G
Interface SPI, I2C
Brightness 80nits
Duty 1/64
Weight(g) 1.27g
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Module lifetime(Hours) 30,000-50000





LCM interface definition

Pin No.  Symbol
1 NC
2 C1N
3 C1P
4 C2P
5
C2N
6 VDD2
7 NC
8 VSS
9 VDD1
10 NC
11 IM1
12 IM2
13 CSB
14 RESB
15 A0
16 WRB
17 RDB
18-25 D0~D7
26 IREF
27 VCOMH
28
VCOMH
22
VPP
29 NC
30 NC




Applications:



For this 0.96 inch white OLED Display 128x64 resolution, suitable for Industrials Equipment,

Medical devices, Household appliances, consumer products.




Product Features:



1. Wide temperature range.

2. Low power consumption.

3. Thin and light structure
