TSD 128x64 dots 2.42 inch white Oled Display with SPI & I2C interface

  • Model Name: TSO12864-Z04
  • Type: 2.42 inch OLED Display
  • Color: White
  • Dot Matrix: 128x64 dots
  • Driver IC: SSD1309
  • Interface: SPI, I2C
  • Drive Duty: 1/64
  • Weight: 8.60g
  • Operating Temperature: -40 ~ +70℃
  • Storage Temperature: -40 ~ +85℃



Description:



Team Source Display model TSO12864-Z04 is the standard passive matrix display mode OLED monochrome screen. with optional colors version like white&blue&yellow. 128x64 dots resolution with 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C interface. high technology for low consumption without backlight. the structure is very thin, and available to add with touch screen or cover glass on top.

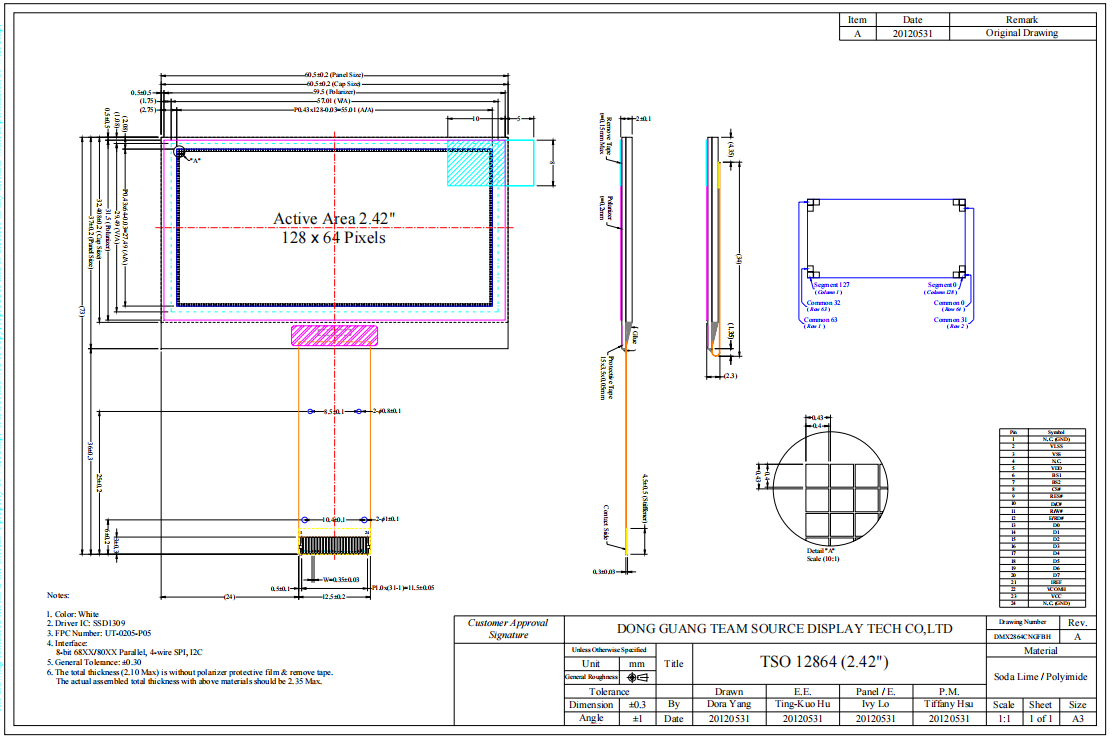

Drawing:




Specifications:



General Specification
Display mode
2.42'' Passive Matrix OLED Monochrome Display
Part No.  TSO12864-Z04
Outline Dimension(mm)

60.5(W)x37(H)x2(D)

Active Area(mm) 55.01(W) x 27.49(H)
Resolution(dots) 128×64 dots
Color White
Operating temperature(°C) -40 ~ +70°C
Storage temperature(°C) -40 ~ +85°C
Operating Voltage
2.8V
Touch panel  could support with cover glass and touch screen
Driver IC SSD1309
Interface SPI, I2C
Brightness 80nits
Duty 1/64
Weight(g) 8.60g
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Module lifetime(Hours) 30,000-50000





LCM interface definition

FPC Number: UT-0205-P05

Pin No.  Symbol
1 NC(GND)
2 VLSS
3 VSS
4 NC
5 VDD
6 BS1
7 BS2
8 CS#
9 RES#
10 DC#
11 RW#
12 E/RD#
13 D0
14 D1
15 D2
16 D3
17 D4
18 D5
19 D6
20 D7
21 IREF
22 VCOMH
23 VCC
24 NC(GND)




Applications:



For this 2.42 inch white OLED Display 128x64 resolution, suitable for Industrials Equipment,

Medical devices, Household appliances, consumer products.




Product Features:



1. Different color versions, white&blue&yellow

2. Wide temperature range.

3. Low power consumption.
