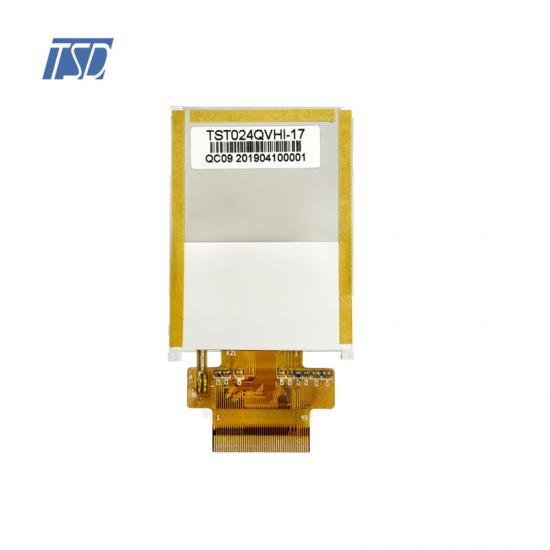

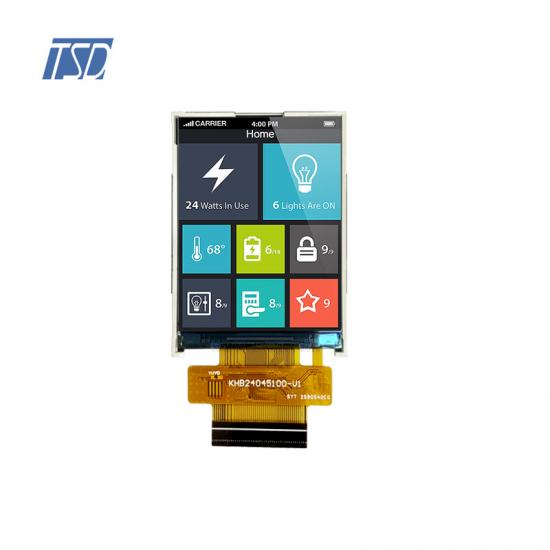

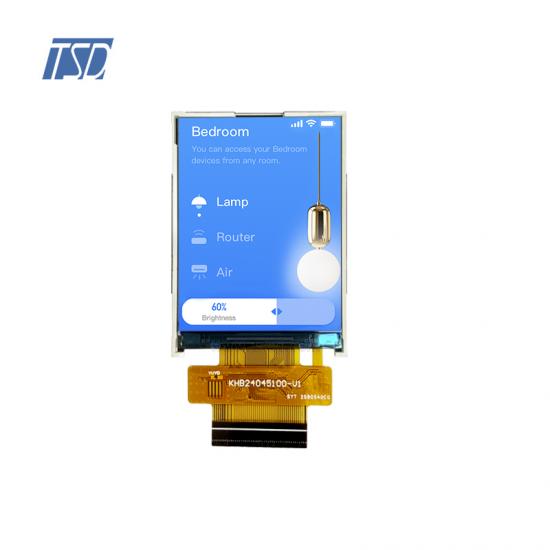

TSD 2.4 inch 240(RGB)*400 Resolution MCU8-bit Interface types

LCD Type: 2.42"TFT, Transmissive,Normally black,ips

Resolution: 240(RGB)*400

View Direction: All o'clock

LCD driver IC: ST7796S

Interface types: MCU8-bit

Operating voltage: 2.8V

With TP/Lens: with CTP

Backlight: 4 LEDs,60mA(typ)

Surface luminance: 350 cd/m²(typ)

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:



TST024QVBS-25C is a color active matrix TFT-LCD Panel using amorphous silicon TFT's as an active switching devices. this model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 36.72x48.96 mm diagonally measured active area with 240xRGBx400 resolutions.

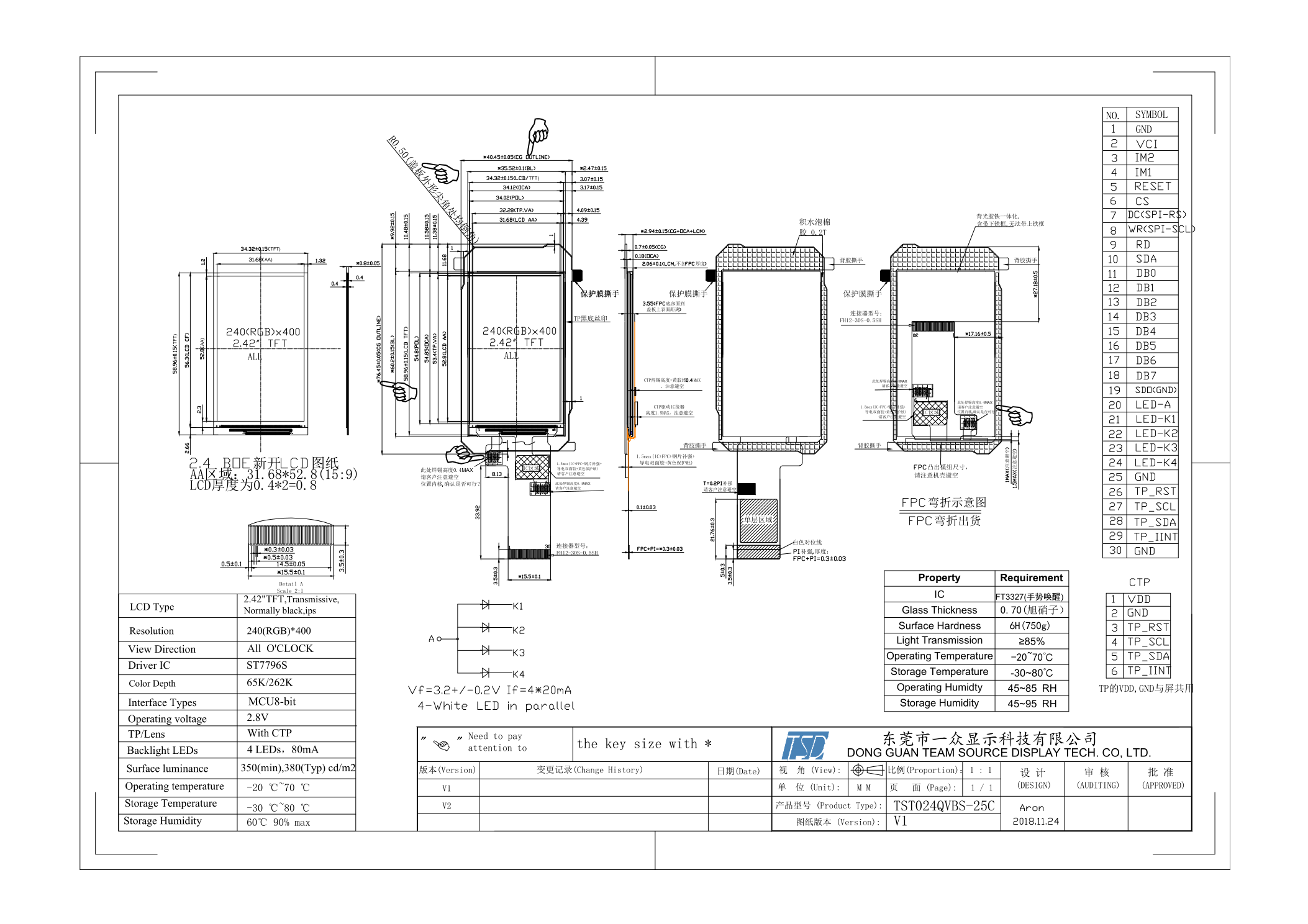

Drawing:



Specifications:





General Specification

Part No.

TST024QVBS-25C

Outline Dimension(mm)

40.45x76.45x2.94

Active Area(mm)

31.68x52.8

Resolution(dots)

240xRGBx400

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Brightness

380cd/m2

Touch panel

Yes

Pixel arrangement

RGB-stripe

Display mode

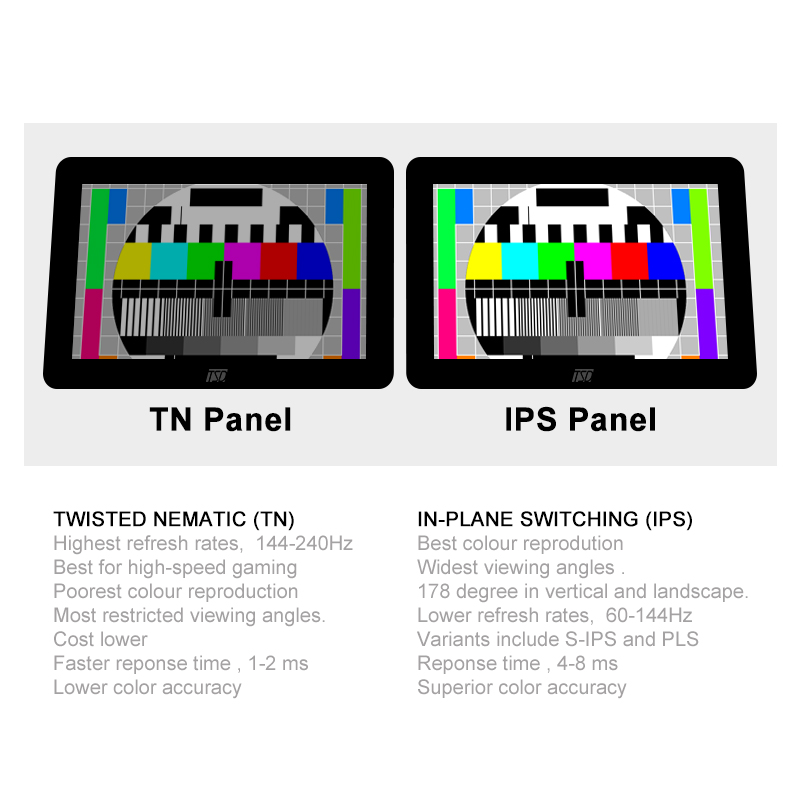

Normal black, IPS

Surface treatment

Antiglare

View direction

All o'clock

Weight(g)

TBD

Power Consumption(w)

TBD(Typ.)

TBD(Typ.)

Interface

MCU





Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.



7. Information Terminal Display: POS, PDA, Handheld devices.
