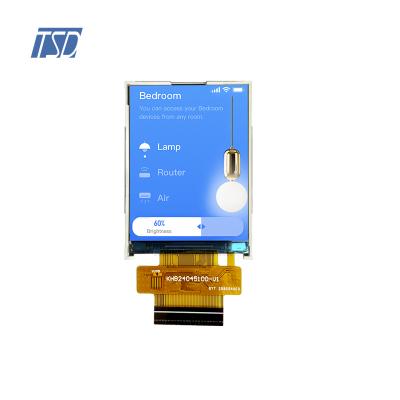

TSD 2.4 inch 240x400 IPS TFT LCD module with oncell touch

  • Model Name: TST024QVBS-25C
  • LCD Type: 2.4 inch TFT LCD display
  • Resolution: 240x400
  • Viewing angle: All o'clock
  • Brightness: 380 cd/m2
  • Driver IC: ST7796S
  • Interface: MCU 8 bits
  • Touch Screen: with oncell Capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST024QVBS-25C is 2.4 inch 240x400 resolution MCU 8-bits interface LCD display module, with standard oncell capacitive touch panel. Outline dimension is 40.45x76.45x2.94 mm, active area is 31.68x52.8mm. Backlight is 380 nits, White LEDs is 4, backlight current is 80mA, which could be customized. For this 2.4 inch TFT LCD module, driver IC is ST7796S, viewing direction is free, all o'clock, color depth is 65K/262K, white backlight and transmissive mode.

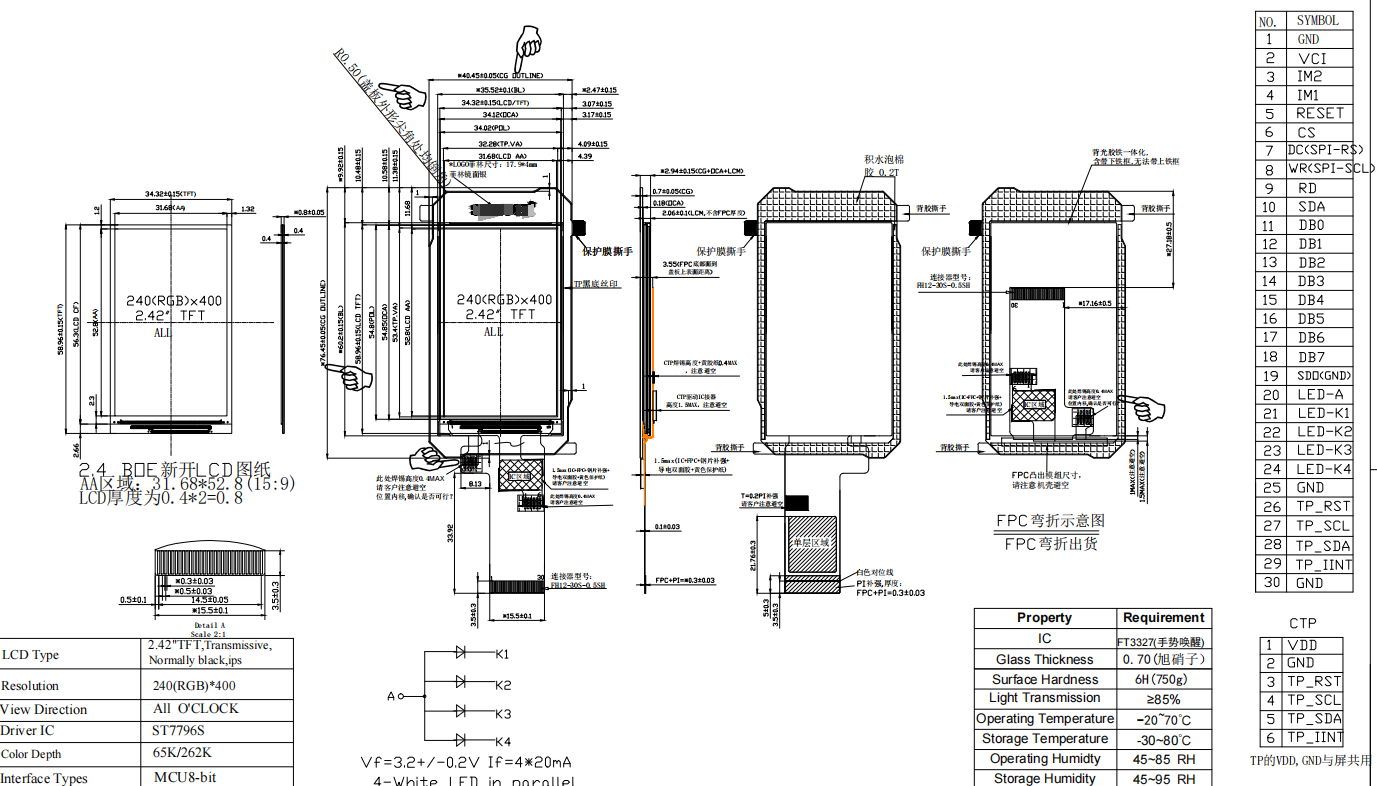

Drawing:




Specifications:



General Specification
Part No.  TST024QVBS-25C
Outline Dimension(mm)

40.45x76.45x2.94

Active Area(mm) 31.68x52.8
Resolution(dots) 240x320
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 240(H)xRGBx320(V)
Touch panel  with oncell CTP
Driver IC ST7789V
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 2.4 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MCU 8 bits
Module lifetime(Hours) 20,000-30,000





Pins Description
Pin No.  Symbol
1 GND
2 VCI
3 IM2
4 IM1
5 RESET
6 CS
7 DC(SPI-RS)
8 WR(SPI-SCL)
9 RD
10 SDA
11-18 DB0-DB7
19 SDD/GND
20 LEDA
21-24 LEDK1-LEDK4
25 GND
26 TP-RST
27 TP-SCL
28 TP-SDA
29 TP-INT
30 GND




Applications:



For our 2.4 inch LCD display TST024QVBS-25C, normally used in smart home product, such as smart thermostat, temperature and humidity control panel, to make it very intelligent life.


Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 2.4" contains 240x400 dots and can display up to 65K/262k colors.
