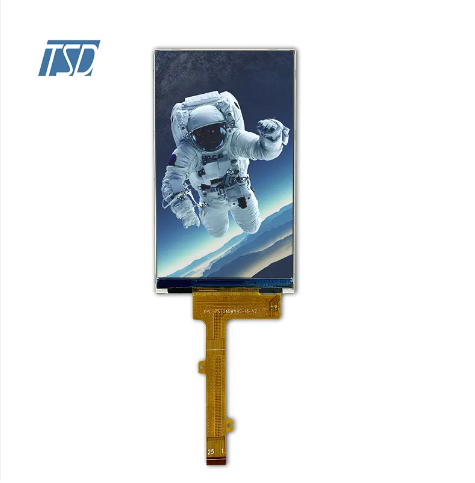

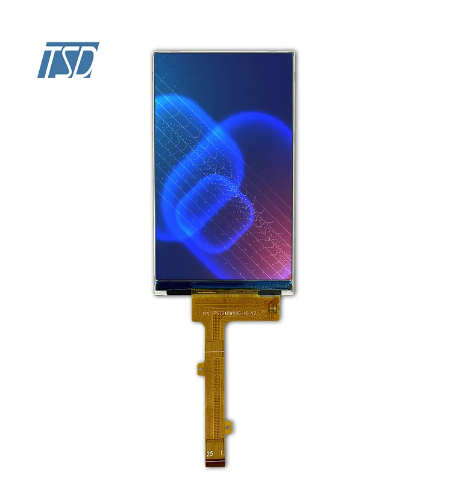

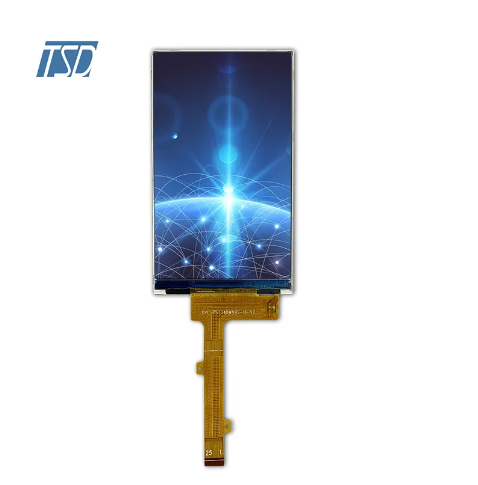

TSD 3.97 Inch TFT LCD Customization lcd panel 480 x (RGB) × 800 resolution

Part number: TST040WVHS-16

Resolution: 480 x (RGB) × 800

View Direction: All o’clock

Active area: 51.84 (W) x 86.4 (H)

LCM: 57.14(W) x 96.85(H) x 2.1(D)

Driver IC: ST7701S

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:

TST040WVHS-16 is a transmissive type color active matrix liquid crystal display which uses amorphous thin film transistor as switching devices. this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 51.84 (W) x 86.4 (H)  and the native resolution is 480 x (RGB) × 800 feathers of this product are listed in the following table

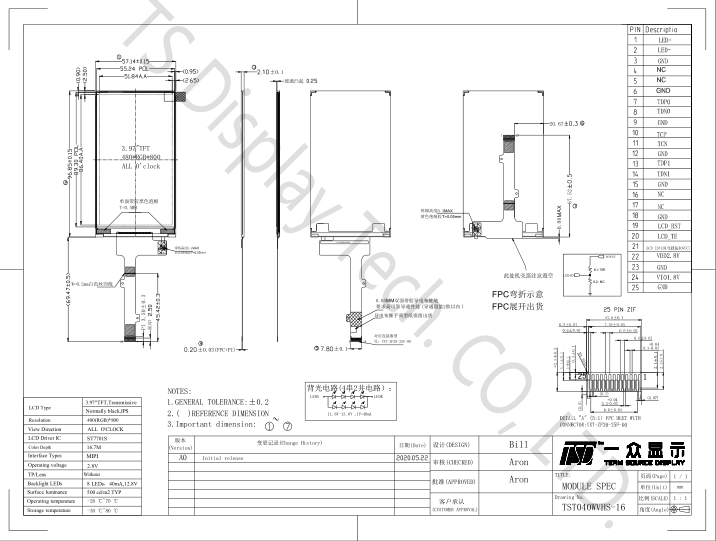

Drawing:



Specification



General Specification

Part No.

TST040WVHS-16

Display Size(Diagonal)

3.97 inch

LCD type

TFT,Transmissive,Normally black,IPS

Resolution

480 x (RGB) × 800

View Direction

ALL o’clock

Module Outline

57.14(W) x 96.85(H) x 2.1(D)

Active Area

51.84 (W) x 86.4 (H)

Viewing Area

ALL o’clock

Backlight

LED

Driver IC

ST7701S

Interface

MIPI

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-20~70

Storage Temperature

-30~80





Pins Description

Pin No.

Symbol

Description

1

LED+

Backlight A Aothod input pin.

2

LED-

Backlight K Cathode input pin.

3

GND

System Ground. (0V)

4

NC

No connect

5

NC

No connect

6

GND

System Ground. (0V)

7

TDP0

MIPI data aothod input pin

8

TDN0

MIPI data c athode input pin

9

GND

System Ground. (0V)

10

TCP

MIPI clock aothod input pin

11

TCN

MIPI clock c athode input pin

12

GND

System Ground. (0V)

13

TDP1

MIPI data aothod input pin

14

TDN1

MIPI data c athode input pin

15

GND

System Ground. (0V)

16

NC

No connect

17

NC

No connect

18

GND

System Ground. (0V)

19

LCD_RST

Reset input signal

20

LCD_TE

Tearing Effect output signal

21

LCDID(10K to IOVCC)

10K resistor connect IOVCC

22

VDD2.8V

Power supply +2.8V t

23

GND

System Ground. (0V)

24

VIO1.8V

Voltage input pin for logic I/O +1.8V

25

GND

No connect



 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
