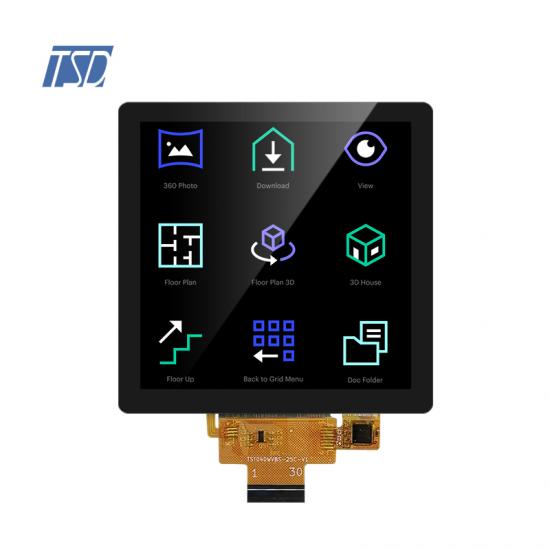

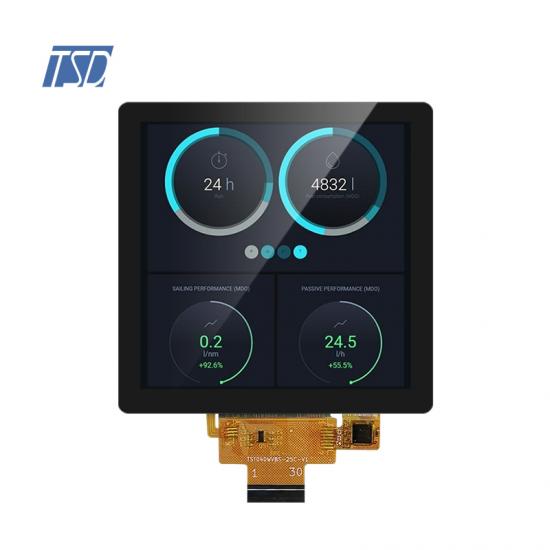

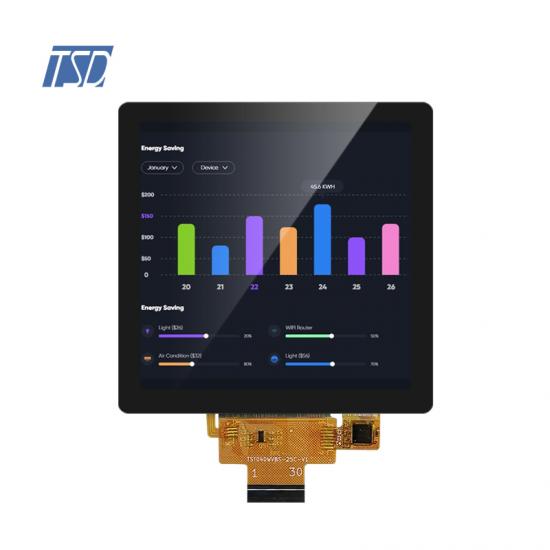

TSD 4 inch TFT LCD 720X720 with touch screen panel


4 inch lcd touch screen
4 inch lcd touch screen 4 inch lcd touch screen 4 inch lcd touch screen 4 inch lcd touch screen 4 inch lcd touch screen

TSD 4 inch TFT LCD 720X720 with touch screen panel





Inquiry now

TSD 4 inch TFT LCD 720X720 with touch screen panel



Specification

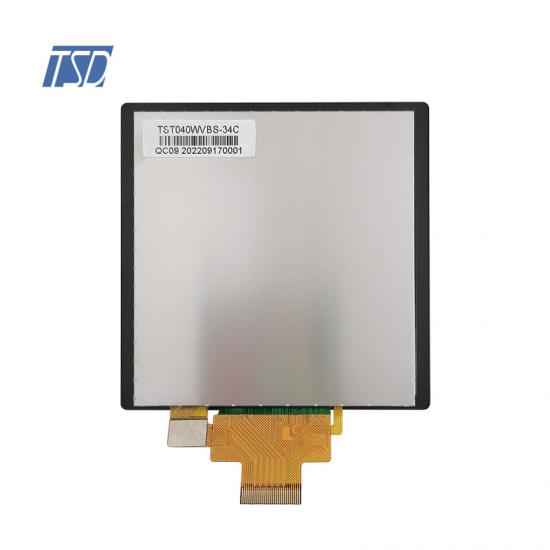

Part No. TST040WVBS-34C
Outline Dimension(mm)
84.00x84.00x3.41mm
Active Area(mm) 71.93x71.93mm
Resolution(dots) 720x720
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 720RGB(H)xRGBx720(V)
Touch panel CTP
Driver IC  ST7703
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 4 inch TFT
Surface treatment Antiglare
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system 1.728(Typ.)
Interface MIPI Interface
Module lifetime(Hours) 50,000-100,000
