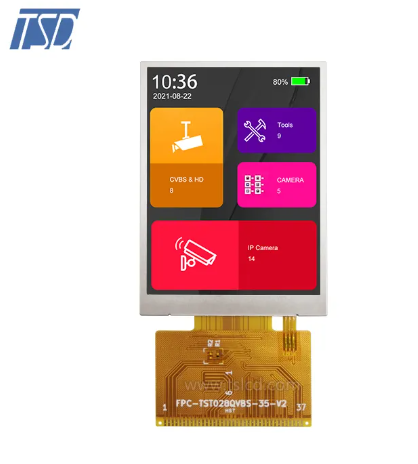

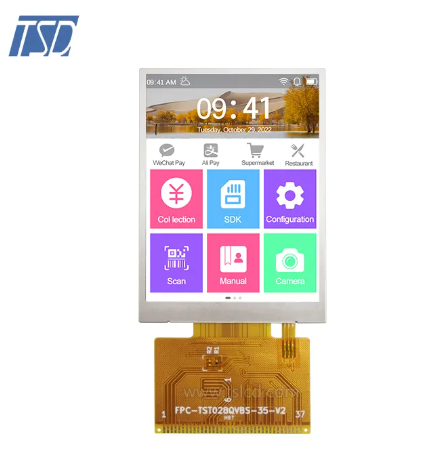

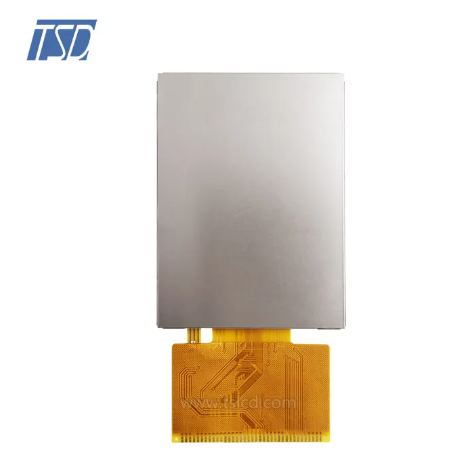

TSD Custom 2.8 Inch TFT LCD 240x (RGB) × 320 Resolution

Name: TST028QVBS-35

Resolution: 240x (RGB) × 320

View Direction:ALL o’clock

LCD driver IC: ST7789V

Interface types:RGB-stripe

With TP/Lens: without

Backlight: 1500

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:



TST028QVBS-35 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a Backlight.This TFT LCD has a 2.83 inch diagonally measured active area with 240×320 resolutions (240 horizontal by 320 vertical pixel array).

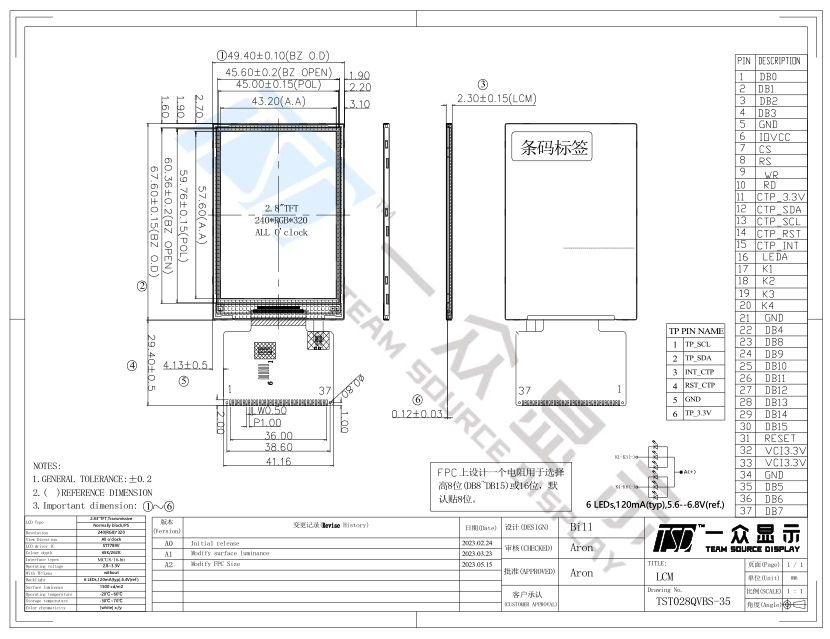

Drawing:



Specifications:

General Specification

Part No.

TST028QVBS-35

Outline Dimension(mm)

49.4(H) x 67.6(V) x2.3(T)

Active Area(mm)

43.2 (H) x 57.6 V)

Resolution(dots)

240x (RGB) × 320

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Brightness

1500 cd/m 2 (typ)

Touch panel

Without

Pixel arrangement

RGB-stripe

Display mode

Normally black

Surface treatment

Antiglare

View direction

ALL o’clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Interface

MCU8 / 16-bi

Driver IC

ST7789V







Pins Description

Pin No.

Symbol

Description

1~4

DB0~DB3

parallel interface data bus.

5

GND

System Ground. (0V)

6

IOVCC

Power Supply for I/O System.

7

CS

Chip selection pin. Low enable

8

RS

Display data/command selection pin.

9

WR

Write enable

10

RD

Read enable

11

CTP_VCC

CTP power supply (+3.3V)

12

CTP_SDA

I2C data input/output

13

CTP_SCL

Clock input , active low

14

CTP_RST

Reset pin, Low is active

15

CTP_INT

interrupt to the host

16

LEDA

Backlight AAnode input pin.

17~20

 K1~K4

Backlight K1~K4 Cathode input pin.

21

GND

System Ground. (0V)

22

DB4

parallel interface data bus

23~30

DB8~DB15

parallel interface data bus

31

RESET

This signal will reset the device

32

VCI3.3V

power supply (+3.3V)

33

VCI3.3V

power supply (+3.3V)

34

GND

System Ground. (0V)

35~37

DB5~DB7

I parallel interface data bus



 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
