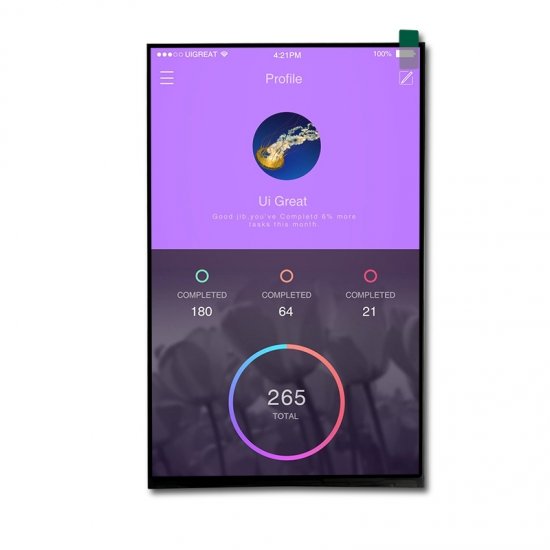

TSD 800x1280 resolution 10.1 inch IPS lcd panel with MIPI interface

  • Model Name: TST101HDBI-62
  • LCD Type: 10.1 inch TFT LCD display
  • Resolution: 800*1280
  • Viewing angle: IPS all viewing angle
  • Brightness: 300 cd/m2
  • Interface: MIPI
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃











Description:

TST101HDBI-62 is 10.1  inch 800*1280 resolution LCD display with MIPI interface, standard brightness is 300cd/m2. For this 10.1 inch TFT LCD module, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V,  this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. this 5 inch lcd is suitable for handheld devices. such as Pos machine. etc





Specification
LCD type 10.1 inch ips display
Display type 10.1 inch TFT, 16.7M color, normally black
Driver element color active matrix thin film transistor
Viewing angle All
Outline Dimension(mm) 143.10(W)*228.60(H)*2.50(T)
Active Area.(mm) 135.36(H)x216.576(V)
Resolution(dots) 800xRGBx1280
Operating Voltage 3.3V
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Pixel arrangement  RGB Vertical Stripe
Display mode Normally Black
Luminance(cd/m2) 270(typ.)
Contrast Ratio 800(typ.)
Application Notebook, advertisement display, etc.
Number of pins 40
Interface  MIPI
Module lifetime(Hours) 50,000-100,000

Drawing:

Interface Description:

Pin No.  Symbol Description
1 GND Ground
2 LEDK Backlight K Cathode input pin.
3 LEDA Backlight A Aothod input pin.
4 GND Ground
5 NC No connect
6 VBAT Power supply +3.5-4.5V
7 GND Ground
8 NC No connect
9 GND System Ground. (0V)
10 D3N MIPI data cathode input pin
11 D3P MlPl data aothod input pin
12 GND Ground
13 DON MIPI data cathode input pin
14 DOP MIP data aothod input pin
15 GND Ground
16 CLKN MIPI data cathode input pin
17 CLKP MIP data aothod input pin
18 GND Ground
19 D1N MIPI data cathode input pin
20 D1P MIP data aothod input pin
21 GND Voltage input pin for logic I/O +1.8V
22 D2N MIPI data cathode input pin
23 D2P MIP data aothod input pin
24 GND Ground
25 RESET Reset input signal
26 TE Tearing Effect output signal
27 NC No connect
28 GND Ground
29 PWR EN Power switch enable
30 NC No connect

Applications:



For our 10.1 inch LCD display TST101HDBI-62, it's widely using in handheld device.

Product Features:

1.10.1 inch 800*1280res. with 30pins MIPI interface

2. IPS lcd : full viewing angle

3.Atractive price

4.Vertical lcd type with capacitive touch

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
