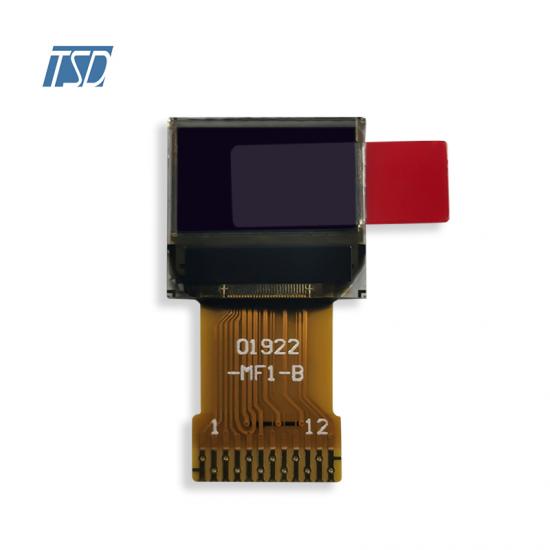

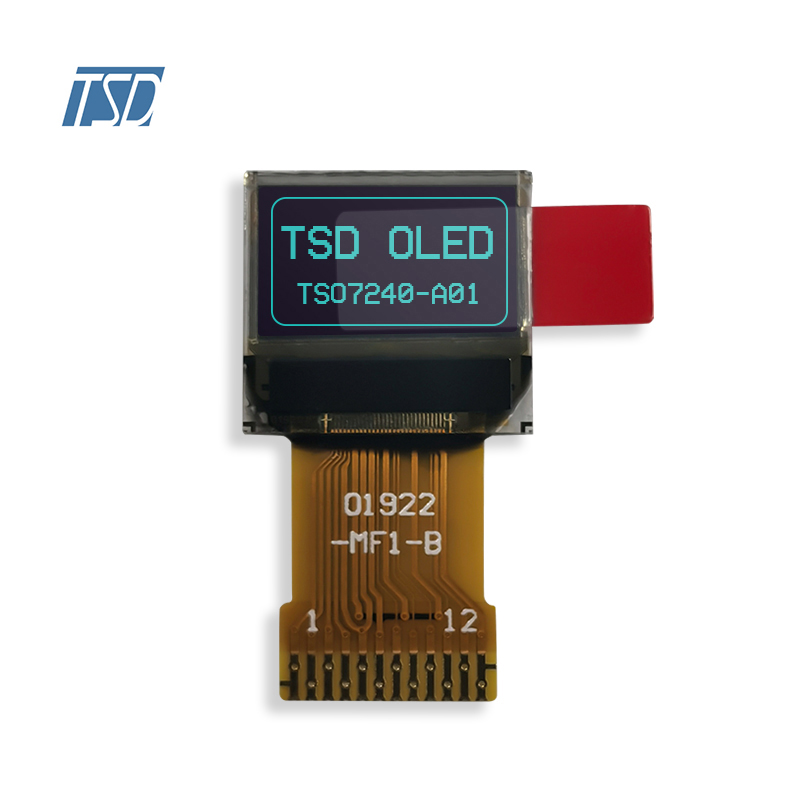

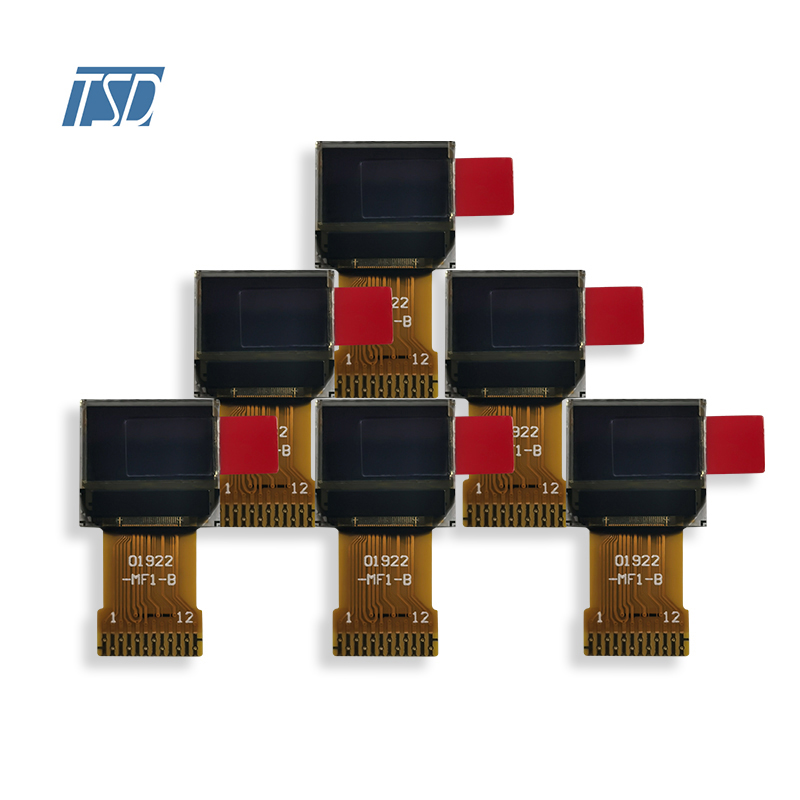

TSD 0.42 inch 72x40 dot matrix OLED display with IIC interface

  • Model Name: TSO7240-A01
  • Type: 0.42 OLED Display
  • Color: White
  • Dot Matrix: 72x40 dots
  • Driver IC: SH1106
  • Interface:  I2C
  • Dot Pitch: 0.128x0.13mm
  • Weight: 0.37g
  • Operating Temperature: -40 ~ +70℃
  • Storage Temperature: -40 ~ +85℃



Description:



Team Source Display model TSO7240-A01 is a monochrome OLED display module with 72×40 dot matrix. I2C interface. high technology for low power consumption without backlight.  high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and available to add with touch screen or cover glass on top.

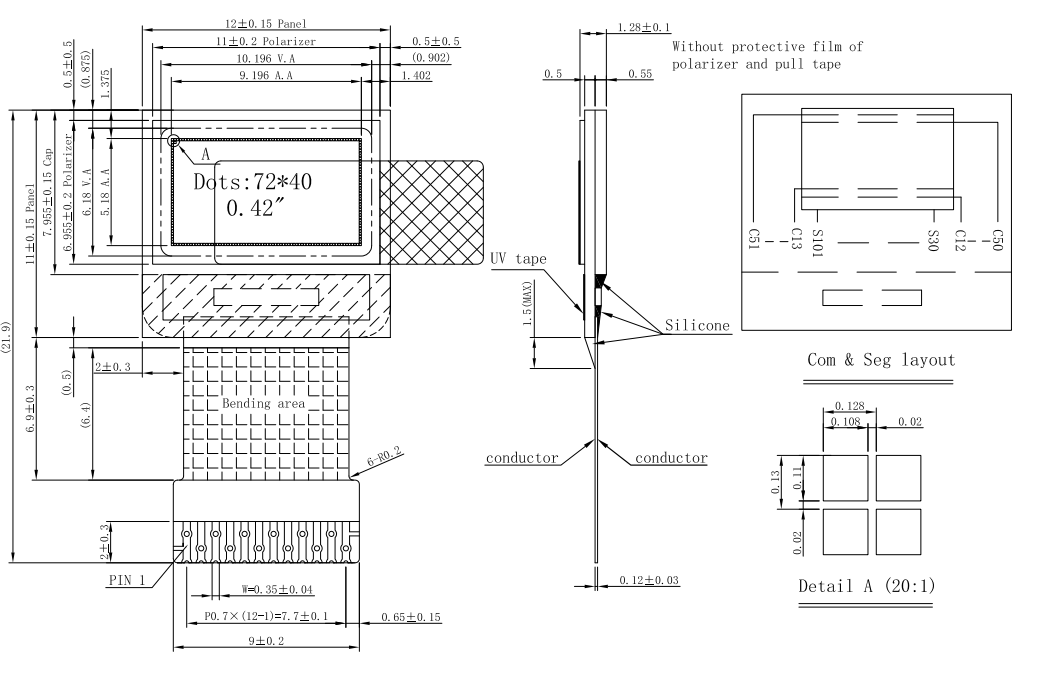

Drawing:




Specifications:



General Specification
Display mode
0.42'' Passive Matrix OLED Monochrome Display
Part No.  TSO7240-A01
Outline Dimension(mm)

12(W)x11(H)x1.28(D)

Active Area(mm) 9.196(W) x 5.18(H)
Resolution(dots) 72×40 dots
Color White
Operating temperature(°C) -40 ~ +70°C
Storage temperature(°C) -40 ~ +85°C
Operating Voltage
3.3V
Touch panel  could support with cover glass and touch screen
Driver IC SH1106
Interface  I2C
Dot size 0.108x0.11
Duty 1/64
Weight(g) 0.37g
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Module lifetime(Hours) 30,000-50000





LCM interface definition



1 C1N
C1P/CIN - Pin for charge pump capacitor; Connect to each other with a capacitor.
2 C1P C1P/CIN - Pin for charge pump capacitor; Connect to each other with a capacitor.
3 C2P C2P/C2N - Pin for charge pump capacitor; Connect to each other with a capacitor.
4 C2N C2P/C2N - Pin for charge pump capacitor; Connect to each other with a capacitor.
5 VDD-3.3V 3.3V power supply pad for Power supply for charge pump circuit.. This pin should be disconnected when VPP is supplied externally.
6 VSS  ground pin.
7 /RES This is a reset signal input pad. When /RES is set to “L, the settings are initialized. The reset operation is performed by the /RES signal level.
8 SCL The serial clock input pad
9 SI The serial data input pad
10 IREF
This is a segment current reference pad. A resistor should be connected between this pad and VSS.
11 VCOMH
This is a pad for the voltage output high level for common signals. A capacitor should be connected between this pad and VSS.
12 VPP
OLED panel power supply. Generated by internal charge pump. Connect to capacitor. It could be supplied externally.




Applications:



For this 0.42 inch white OLED Display 72x40 resolution, suitable for Industrials Equipment,

Medical devices, Household appliances, Handheld devices and Consumer products.


Product Features:



1. Wide temperature range.

2. Low power consumption.

3. High contrast ratio.
