Description:

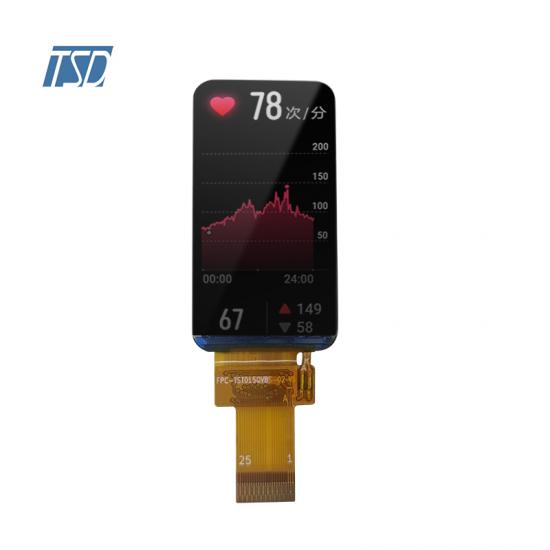

TST029FWBS-X12 is 2.9 inch ips tft lcd display with MIPI interface, available to make the customization of touch screen. This specification applies to the TFT transmissive dot matrix LCD module that is supplied by TEAM SOURCE DISPLAY.
LCD specification: Duty 1/480, Dots 376xRGBx960, operating temperature is -30 to 85℃, storage temperature is -40 to +90℃. As to basic specification of the driver IC, refer to the IC (ST7701S) specification and datasheet. o, suitable for automotive application, such as 2 wheels.

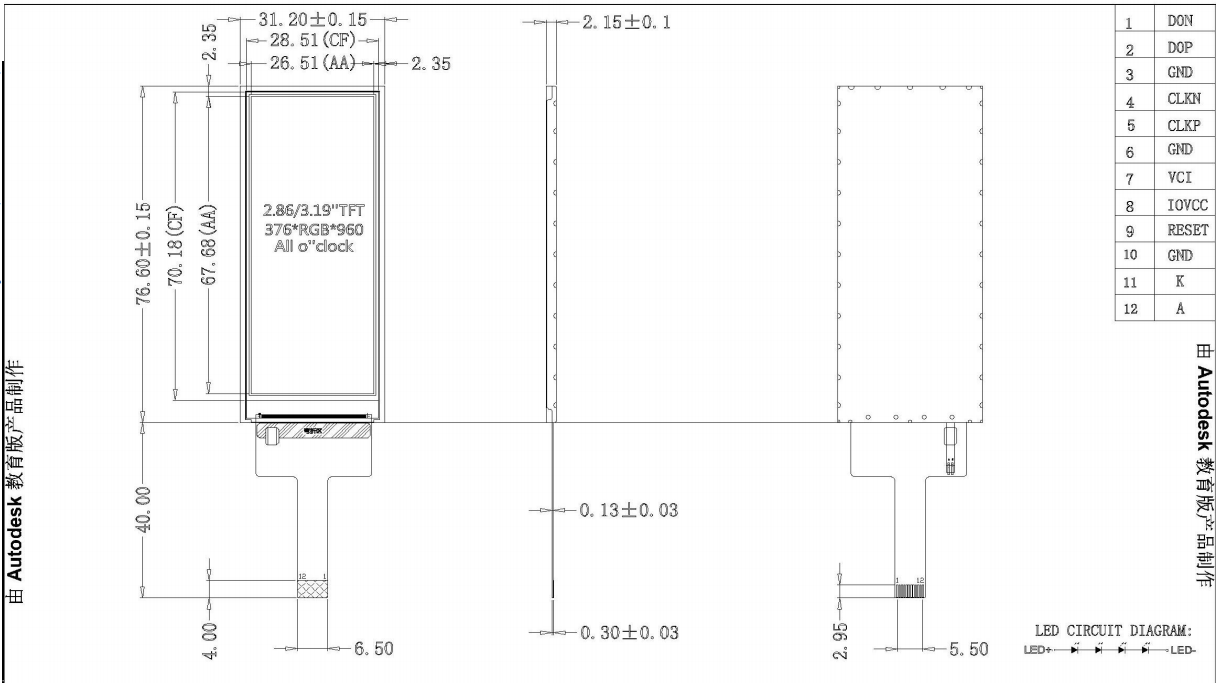

Drawing:
Specifications:
| General Specification | ||
| Part No. | TST029FWBS-X12 | |
| Outline Dimension(mm) | 31.2x76.6x2.15 | |
| Active Area(mm) | 26.51x67.88 | |
| Resolution(dots) | 376x960 | |
| Operating temperature(°C) | -30 ~ +85°C | |
| Storage temperature(°C) | -40 ~ +90°C | |
| Number of Pixel(pixels) | 376(H)xRGBx960(V) | |
| Touch panel | without | |
| Driver IC | ST7701S | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,IPS, 2.9 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | MIPI |
|
| Module lifetime(Hours) | 30,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | D0N | MIPI data signal |
| 2 | D0P | MIPI data signal |
| 3 |
GND |
Ground |
| 4 | CLKN | MIPI clock signal |
| 5 | CLKP | MIPI clock signal |
| 6 | GND | Ground |
| 7 | VCI | Power voltage (2.8V~3.3V) |
| 8 | IOVCC | Power supply for I/O System (1.8V~3.3V) |
| 9 | RESET | Reset pin |
| 10 | GND | Ground |
| 11 | K | Backlight (-) |
| 12 | A | Backlight (+) |
Applications:
Our 2.9 inch color TFT LCD or also call 2.86 inch LCD module is specifically designed for automotive and mobility applications, including electric scooters, motorcycles, and other compact vehicle systems. This compact yet robust display delivers clear visibility, high brightness (optional), and wide viewing angles, ensuring critical information (speed, battery level, navigation, etc.) remains readable in various lighting conditions.
Key Features for Vehicle Integration:
✔ Sunlight Readability: High-luminance options (up to 1000 nits) for outdoor visibility
✔ Wide Temperature Range (-30°C to +85°C or custom) for reliable operation in all climates
✔ Vibration & Shock Resistant: Reinforced structure for durability on rough roads
✔ Custom Interface: Supports MIPI interface; can display speedometer, battery icons, warning indicators, etc.
Typical Applications:
Electric scooter/motorcycle dashboards
Battery management system displays
Compact vehicle telemetry screens
