TSD 2.8inch IPS 240x320 QVGA SPI TFT display

Part number: TST028QVHS-43

Resolution: 240 x (RGB) × 320

View Direction: All o’clock

Active area: 43.2 (W) x 57.6 (H)

LCM: 49.7(W) x 68.85(H) x 2.82(D)

Backlight: 6 LEDs, 120mA, 3.2V

Brightness: typ 450nits

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:

This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) . This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 2.8”contains 320*240 dots and the Active area is 43.2 (W) x 57.6 (H)

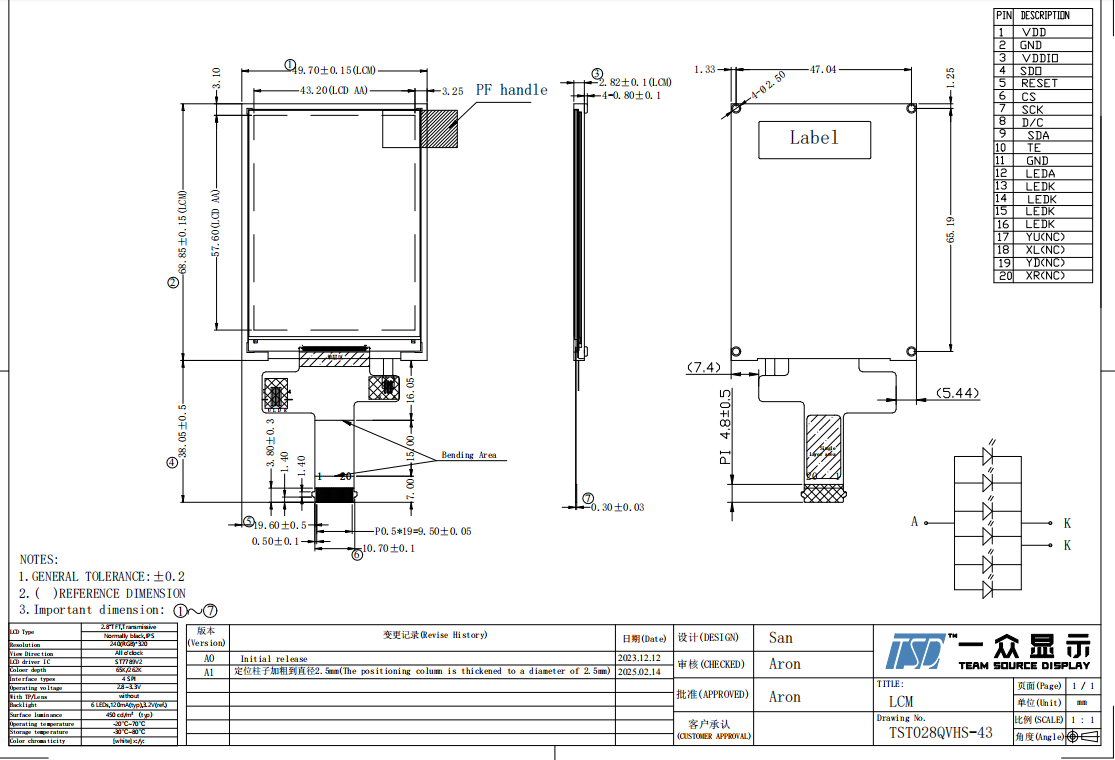

Drawing:



Specification



General Specification

Part No.

TST028QVHS-43

Display Size(Diagonal)

2.8 inch

LCD type

a-Si TFT,Transmissive,Normally black,  IPS

Resolution

240 x (RGB) × 320

View Direction

ALL o’clock

Module Outline

49.70 (W) x 68.85(L) x 2.82(T)

Active Area

43.2 (W) x 57.6 (L)

Viewing Area

All o’clock

Back light

6-LEDs White Color

Driver IC

ST7789V2

Interface

SPI

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-2070

Storage Temperature

-3080



Pins Description

Pin No.

Symbol

1

VDD

2

GND

3

VDDIO

4

SDO

5

RS

6

CS

7

SCK

8

D/C

9

SDA

10

TE

11

GND

12

LEDA

13

LEDK

14

LEDK

15

LEDK

16

LEDK

17

YU

18

XL

19

YD

20

XR



 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
