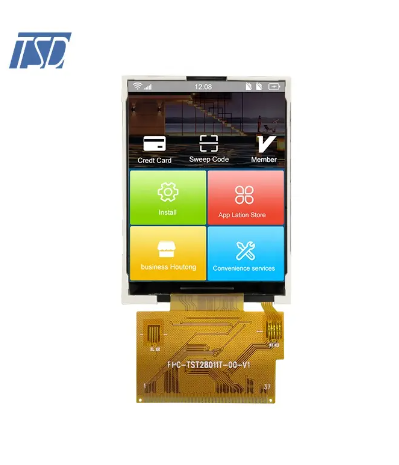

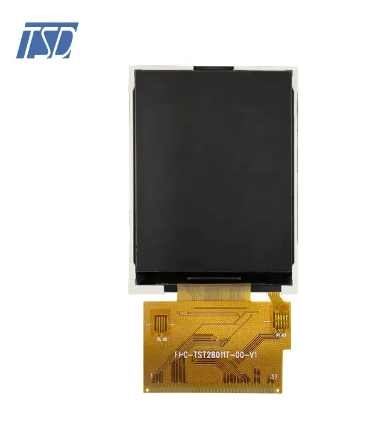

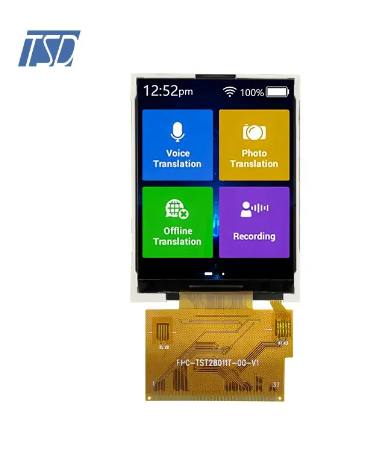

TSD 2.8 Inch TFT LCD Module 320 x (RGB) × 240 resolution

Part number: TST28011T-00

Resolution: 240 x (RGB) × 320

View Direction: All o’clock

Active area: 43.2 (W) x 57.6 (H)

LCM: 50.0W) x 69.2(H) x 2.25(D)

Backlight: 4 LEDs,80mA

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:

This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) . This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 2.8”contains 320*240 dots and the Active area is 43.2 (W) x 57.6 (H)

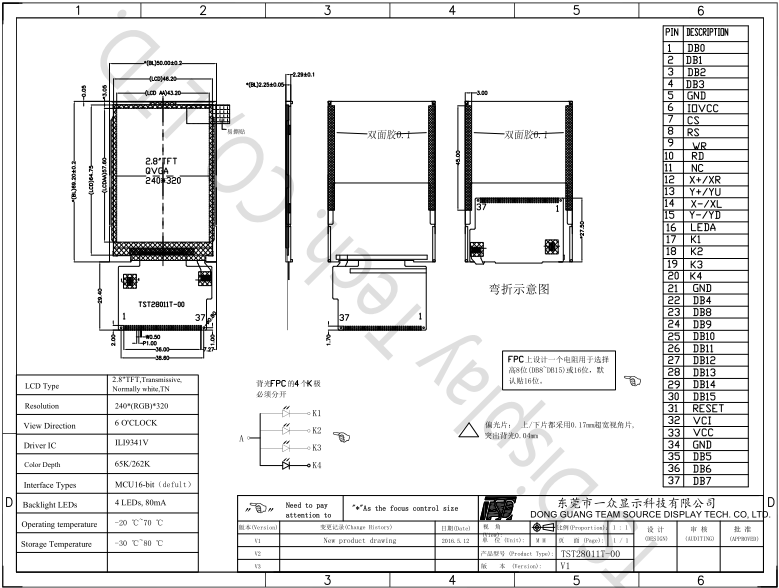

Drawing:

Specification



General Specification

Part No.

TST28011T-00

Display Size(Diagonal)

2.8 inch

LCD type

a-Si TFT,Transmissive,Normally white,TN

Resolution

240 x (RGB) × 320

View Direction

6 o’clock

Module Outline

46.70 (L) x 34.70(W) x 2.55(T)

Active Area

35.04 (L) x28.03 (W)

Viewing Area

6 o’clock

Back light

2-LED White Color

Driver IC

4 LEDs,80mA

Interface

MCU 8/16-bit

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-2070

Storage Temperature

-3080



Pins Description

Pin No.

Symbol

Description

1~4

DB0~DB3

Data BUS

5

GND

System Ground. (0V)

6

IOVCC

Power supply +2.8V or 1.8V

7

CS

Chip select signal.

8

RS

Data/Command Selection pin

9

WR

write signal

10

RD

read signal

11

NC

-

12

X+/XR

NC

13

Y+/YU

NC

14

X-/XL

NC

15

Y-/YD

NC

16

LEDA

Backlight A Aothod input pin.

17

LEDK1~LEDK4

Backlight K Cathode input pin.

21

GND

System Ground. (0V)

22

DB4

Data BUS

23~30

DB8~DB15

Data BUS

31

RESET

Reset input signal

32

VCI

Power supply +2.8V

33

VCC

Power supply +2.8V or 1.8V

34

GND

System Ground. (0V)

35~37

DB5~DB7

Data BUS



 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
