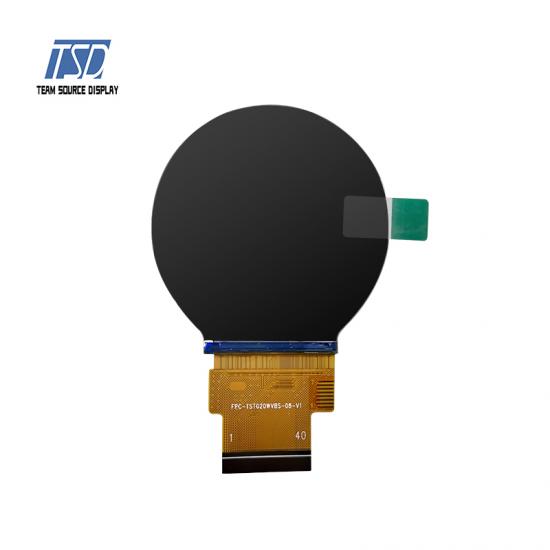

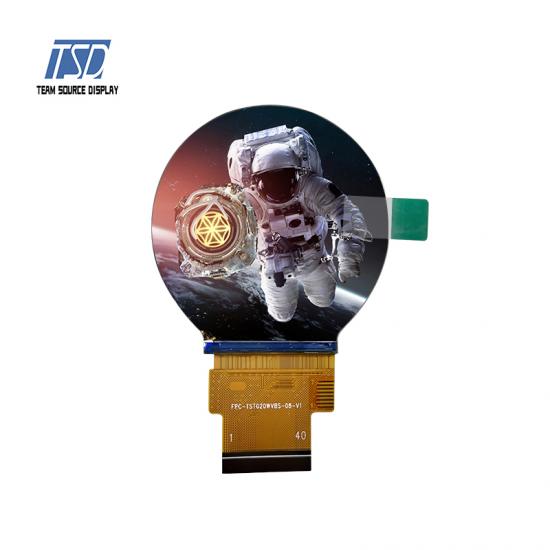

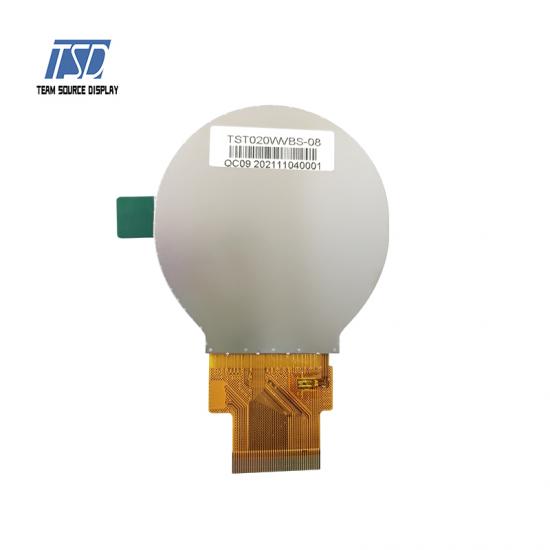

2.1 Inch IPS Round Transmissive 480*480 Resolution Color Screen SPI RGB Interface TFT LCD Display

2.1 Inch 480*480 Resolution TFT LCD IPS LCD Display Screen Display Module with MCU Interface ST7701S IC



2.1 Inch 480*480 Resolution TFT LCD IPS LCD Display Screen Display Module with MCU Interface ST7701S IC



Specification
LCD type TFT, Transmissive
Display type 2.1 inch TFT lcd WVBS, 262k color, normal black
Driver element a-si TFT Active matrix
Outline Dimension(mm) 56.18x59.71x2.24
A.A.(mm) 53.28x53.28
Driver IC ST7701S
Item 2.1 inch tft lcd
Resolution(dots)_ 480*RGB*480
Viewing Direction All o'clock
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 480(H)x RGB x 480(V)
Pixel Pitch 0.111x0.111
Operating Volatge 2.8v
Pixel arrangement RGB Stripe
Display mode Normally Black
Surface treatment Antiglare, Hard-Coating(3H)
Weight(g) TBD
Backlight 4 LEDs, 20mA
Touch screen without
Interface SPI+RGB
Module lifetime(Hours) 50,000-100,000
Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
