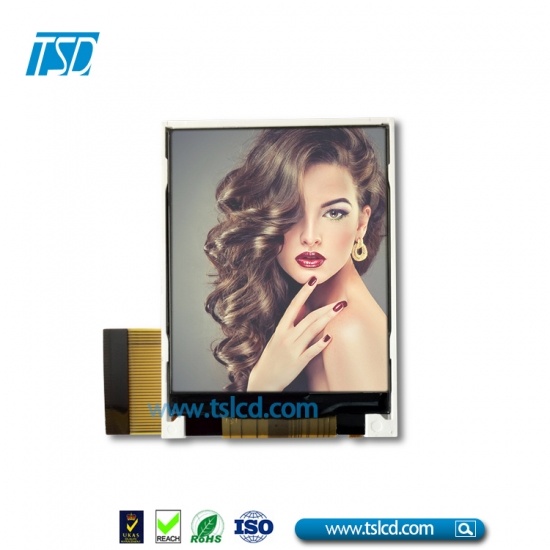

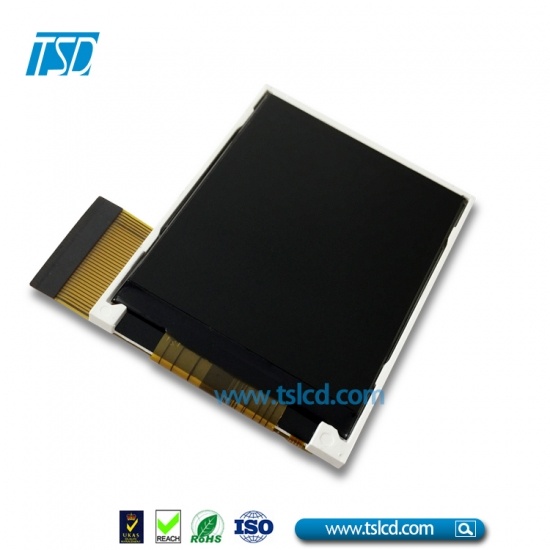

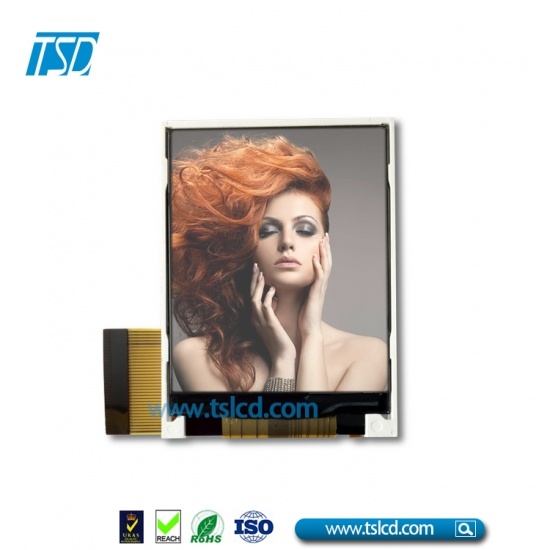

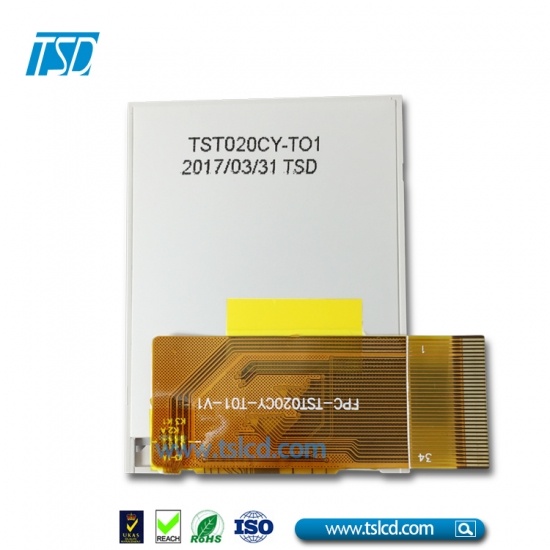

2.0" lcd panel 2 inch TFT lcd module 8bit parallel MCU interface lcd screen display

2.0" tft lcd screen display

176*220 resolution tft lcd

8bit parallel MCU interface

2.0" TFT lcd 176*220 with resistance touch screen

Specification
LCD type TFT,Transmissive,TFT color LCD
Display type 2 inch TFT, 262k color, normal white
Description 2.0" tft lcd 176*220
Driver element a-si TFT Active matrix
Outline Dimension(mm) 37.88*51.5*2.5mm
A.A.(mm) 30.6*40.8mm
Driver IC ILI9341
Resolution(dots)_ 240*RGB*320
Viewing Direction 6H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 320(H)x 3RGB x 240(V)
Pixel arrangement RGB Vertical Stripe
Display mode Normally white
Weight(g) TBD
Backlight  4LED, White
Touch panel 4 wire resistive touch panel
Weight(g) TBD
Interface 8080 system 8 bits parallel bus interface
Module lifetime(Hours) 50,000-100,000
