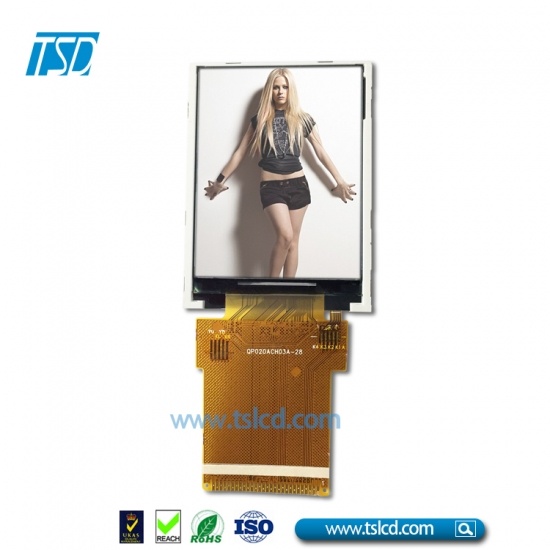

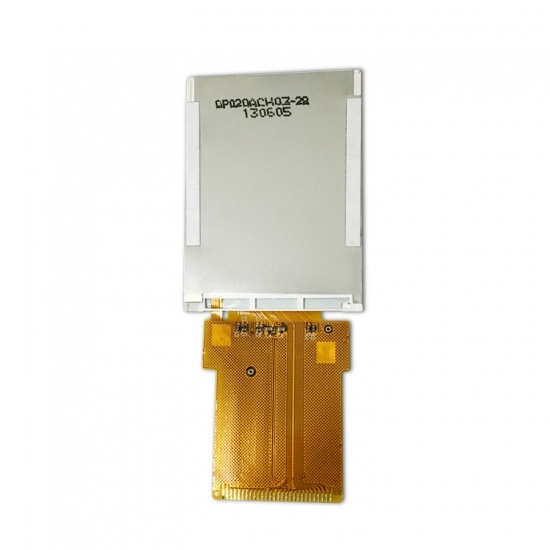

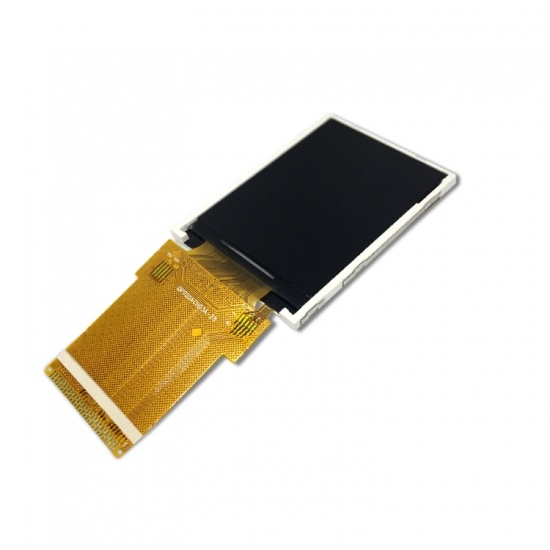

2 inch lcd module 176x220 resolution MCU interface TFT lcd display

2.0" tft lcd screen display

176x220 pixels tft small lcd module display

8bit parallel MCU interface

Inquiry now Data sheet

2.0" TFT lcd 176xRGBx220 with resistance touch screen

Specification
LCD type	TFT,Transmissive,TFT color LCD
Display type	2 inch TFT, 262k color, normal white
Description	2.0" tft lcd 176xRGBx220
Driver element	a-si TFT Active matrix
Outline Dimension(mm)	37.68x51.3x2.15mm
A.A.(mm)	31.68x39.60mm
Driver IC	ILI9225B
Resolution(dots)_	176xRGBx220
Viewing Direction	12H
Operating temperature(°C)	-20-70
Storage temperature(°C)	-30-80
Number of Pixel(pixels)	176xRGBx220
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally white
Weight(g)	TBD
Backlight	3 LED, White
Touch panel	4 wire resistive touch panel
Weight(g)	TBD
Interface	8080 system 8 bits parallel bus interface
Module lifetime(Hours)	50,000-100,000
