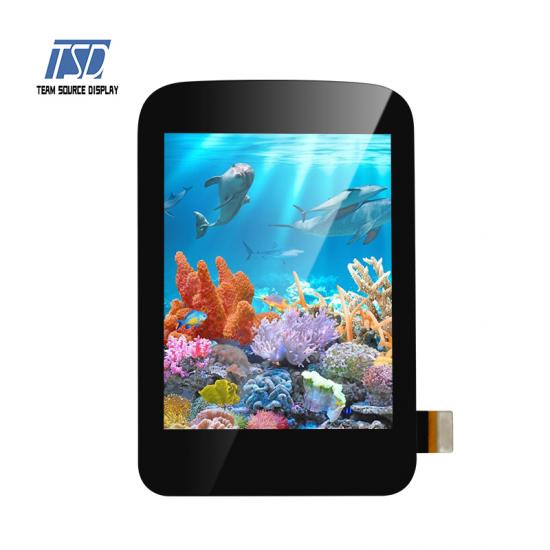

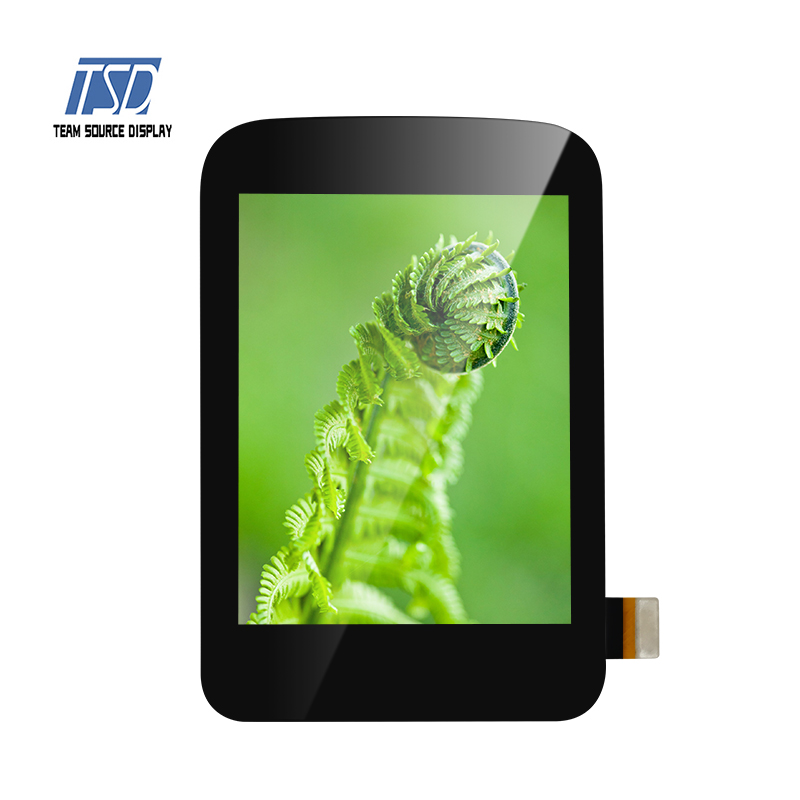

TSD 2.8 inch IPS 350 nits MIPI TFT Module

  • Model Name: TST028QVBS-23C
  • LCD Type: 2.8 inch TFT LCD display
  • Resolution: 240x320
  • Viewing angle: All o'clock
  • Brightness: 350 cd/m2
  • Driver IC: ST7785M
  • Interface: MIPI interface
  • Touch Screen: with Capacitive touch panel
  • Operating Temperature: -20 ~ +60℃
  • Storage Temperature: -30 ~ +70℃

Description:



TST028QVBS-23C is 2.8 inch 240x320 pixel MIPI interface LCD module, which is with standard capacitive touch panel. The touch panel is with single gesture touch feature. Backlight is 350 nits. It is suitable for smart home and appliances product. The backlight has 4 white LEDs, backlight current is 20mA and backlight voltage is 12.4V, which could be customized for different configuration. This 2.8 inch TFT LCD module is designed with ST7785M, viewing direction is all o'clock, color depth is 16.7M, white backlight and transmissive type.


Drawing:




Specifications:



General Specification
Part No.  TST028QVBS-23C
Outline Dimension(mm)

53.88x82.58x4.78

Active Area(mm) 43.2x57.6
Resolution(dots) 240x320
Operating temperature(°C) -20 ~ +60°C
Storage temperature(°C) -30 ~ +70°C
Number of Pixel(pixels) 240(H)xRGBx320(V)
Touch panel  w/o CTP
Driver IC ST7785M
Touch IC FT6336U (signle touch)
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 2.8 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MIPI 1 lane
Module lifetime(Hours) 30,000





Pins Description
Pin No.  Symbol
1 GND
2 LCM_DATA0_N
3 LCM_DATA0_P
4 GND
5 NC
6 NC
7 GND
8 NC
9 NC
10 GND
11 NC
12 NC
13 GND
14 GND
15 LCD_CLK-N
16 LCD_CLK-P
17 GND
18 NC
19 NC
20 LCD_RST
21 LPTE
22 NC
23 LCD_ID
24 VDD1V8
25 GND
26 CTP_SCL
27 CTP_SDA
28 CTP_RST
29 NC_INT
30 VDD2V8




Applications:



For our 2.8 inch LCD display TST028QVBS-23C, normally used in smart home product, such as smart thermostat, temperature and humidity control panel, to make it very intelligent life.




Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 2.8" contains 240x320 dots and can display up to 16.7M colors.
