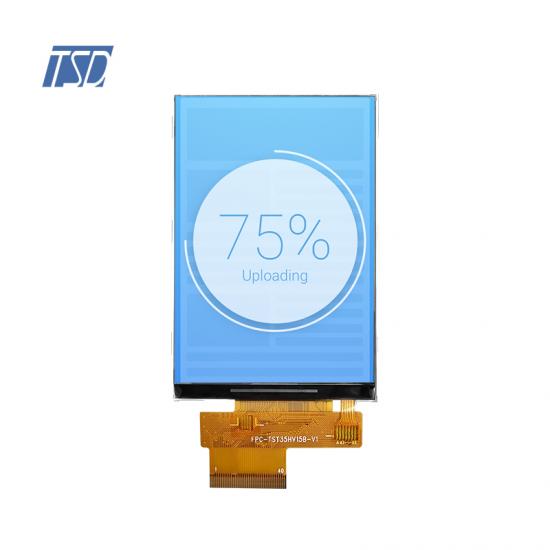

TSD Main products are Color TFT, capacitive, resistive touch screen, Monochrome LCD & LCM, character dot matrix .segment LCD cover TN, HTN,STN, FSTN, VA etc,TSD products widely used in household appliances,consumer, automotive,education, security, industrial control, medical and intelligent equipment, power equipment,aerospace,military and many other fields
Drawing:

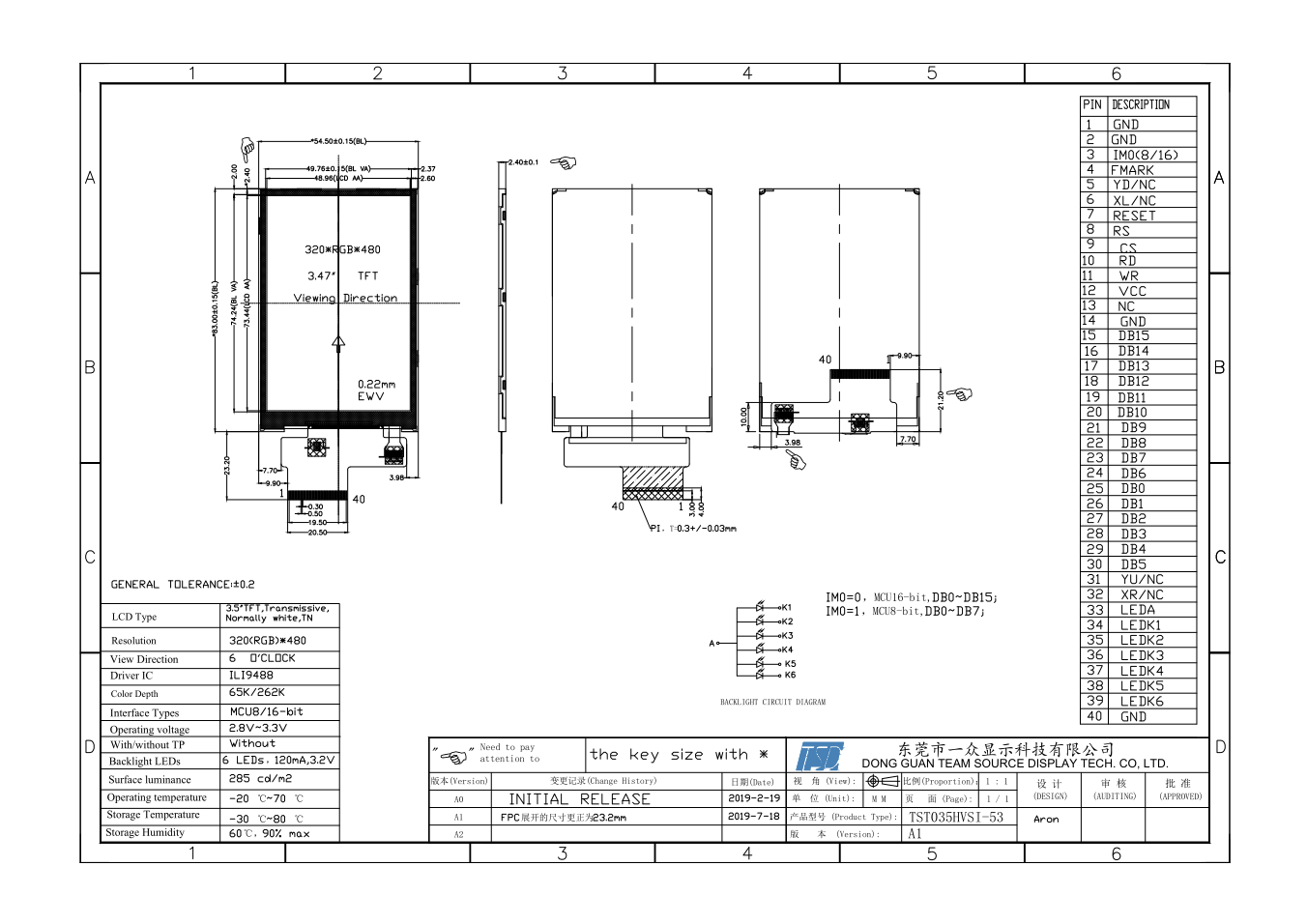

Specifications:
|
General Specification |
|
|
Part No. |
TST035HVQI-45 |
|
Outline Dimension(mm) |
68.0(W)x100.0(H)x4.13(D) |
|
Active Area(mm) |
48.96W) x 73.44(H) |
|
Resolution(dots) |
320*RGB*480 |
|
Operating temperature(°C) |
-20 ~ +70°C |
|
Storage temperature(°C) |
-30 ~ +80°C |
|
Number of Pixel(pixels) |
320RGB(H)xRGBx480V) |
|
Touch panel |
CTP |
|
Driver IC |
ILI9488 |
|
Pixel arrangement |
RGB-stripe |
|

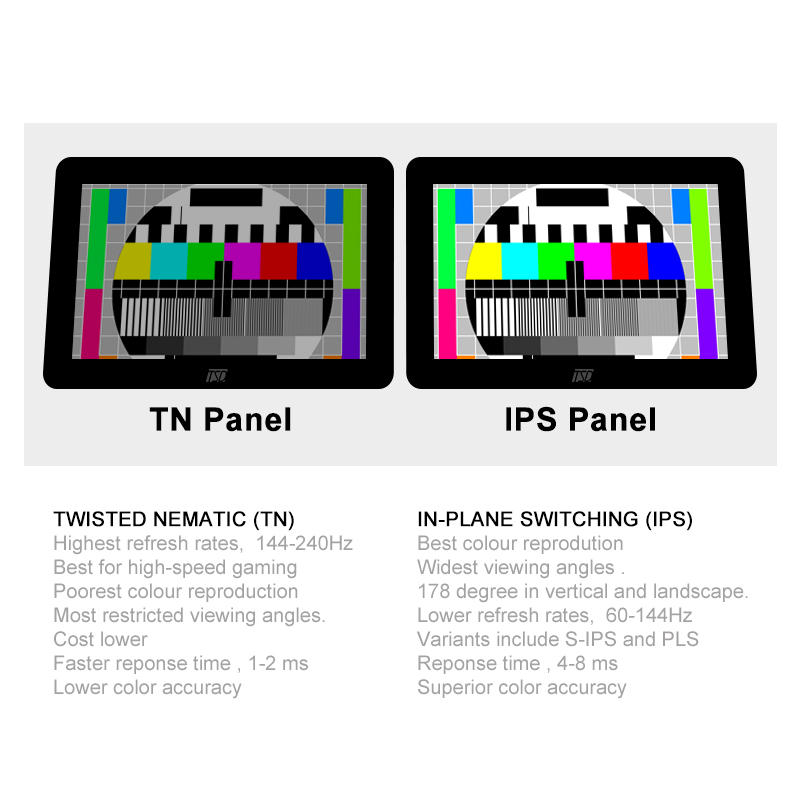

Display mode |
3.5"TFT, Transmissiv |
|
Surface treatment |
Antiglare |
|
View direction |
All o'clock |
|
Weight(g) |
TBD |
|
PIN NO. |
Symbol |
Description |
|
1 |
GND |
System Ground.(OV) |
|
2 |
GND |
System Ground.(OV) |
|
3 |
IMO |
IMO=0: MCU16-BIT, DB0~DB15 |
|
4 |
FMARK |
Tearing Effect output signal |
|
5 |
NC |
|
|
6 |
NC |
|
|
7 |
RESET |
Reset input signal |
|
8 |
RS |
Data/Command Selection pin |
|
9 |
CS |
Chip select signal. |
|
10 |
RD |
read signal |
|
11 |
WR |
serves as a write signal |
|
12 |
VCC |
Power supply +2.8V |
|
13 |
NC |
|
|
14 |
GND |
System Ground.(OV) |
|
15-24 |
DB15~DB6 |
Data BUS |
|
25-30 |
DB0~DB5 |
Data BUS |
|
31 |
NC |
|
|
32 |
NC |
|
|
33 |
LEDA |
Backlight A Aothod input pin. |
|
34-39 |
LEDK1~LEDK6 |
Backlight K Cathode input pin. |
|
40 |
GND |
System Ground.(OV) |
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
