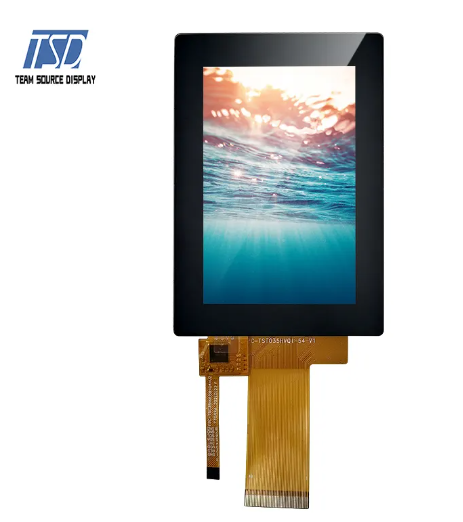

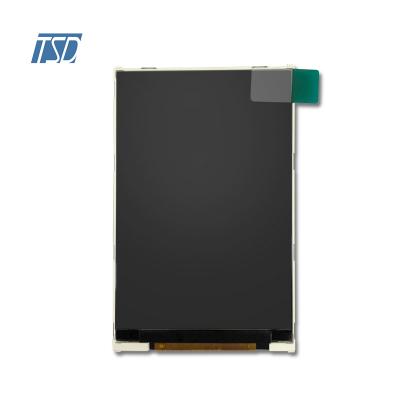

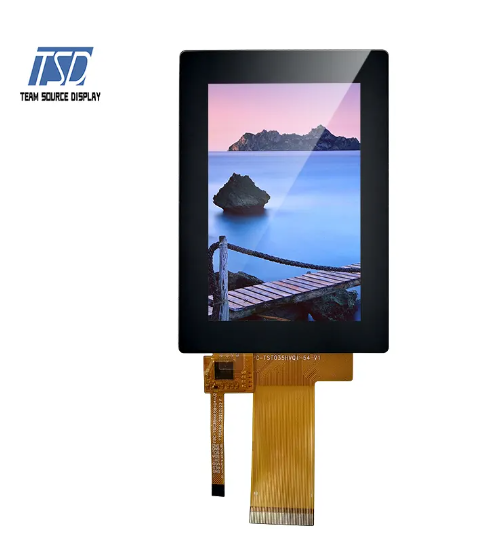

TSD 3.5 inch small size IPS TFT LCD MCU/SPI/SPI+RGB Interface

General Specification

Part No.

TST035HVQI-100C

Display Size(Diagonal)

3.5 inch

LCD type

Transmissive,Normally black,IPS

Resolution

320 x (RGB) × 480

View Direction

ALL o’clock

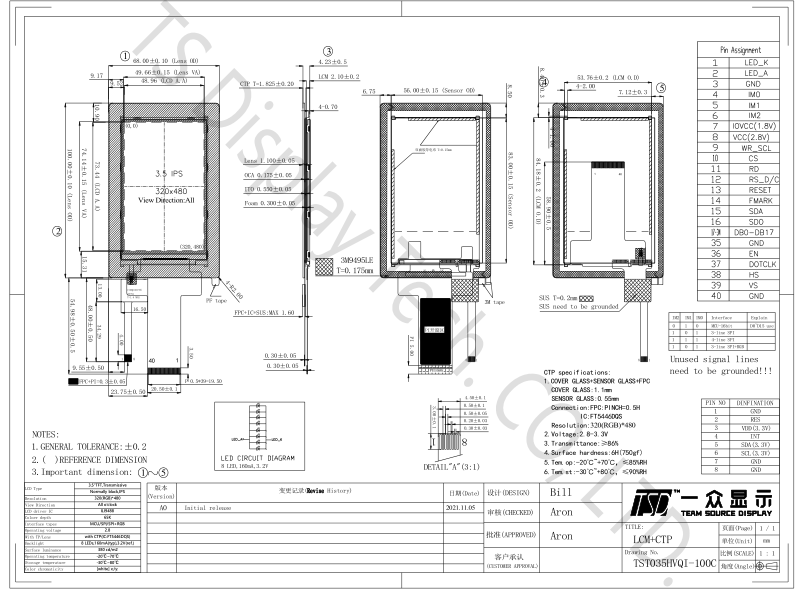

Module Outline

84.18(W) x 53.76(H) x 2.1(D)

Active Area

48.96 (W) x 73.44(H)

Viewing Area

ALL

Backlight

8 LEDs

Interface

MCU/SPI/SPI+RGB

Driver IC

ILI9488

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-20～60

Storage Temperature

-30～70

Pins Description

Pin No.

Symbol

Description

1

LED_K

Backlight K Cathode input pin.

2

LED_A

Backlight A Aothod input pin.

3

GND

System Ground. (0V)

4-6

M0~IM2

Interface setting pin

7

IOVCC(1.8V)

Voltage input pin for logic I/O +1.8V

8

VCC(2.8V)

Power supply +2.8V~3.3V

9

WR_SCL

write signal

10

CS

Chip select signal.

11

RD

Read enable.

12

RS_D/C

Data/Command Selection pin

13

RESET

Reset input signal

14

FMARK

Tearing Effect output signal

15

SDA

Serial data input pin

16

SDO

Serial data output pin

17~34

DB0~DB17

Data BUS

35

GND

System Ground. (0V)

36

EN

Data enable

37

DOTCLK

Pixel clock

38

HS

Horizontal sync signal

39

VS

Vertical sync signal

40

GND

System Ground. (0V)
