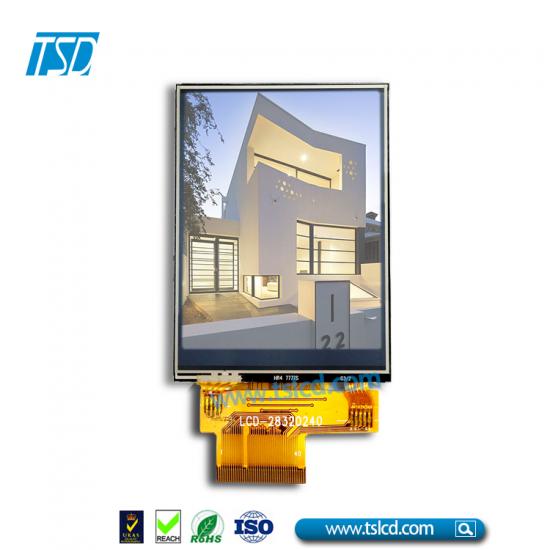

TSD High brightness 2.8 inch IPS TFT LCD display

  • Model Name: TST028QVHS-18
  • LCD Type: 2.8 inch TFT LCD display
  • Resolution: 240x320
  • Viewing angle: All o'clock
  • Brightness: 520 cd/m2
  • Driver IC: ST7789V
  • Interface: 4 wire SPI interface
  • Touch Screen: without Capacitive touch panel
  • Operating Temperature: -20 ~ +60℃
  • Storage Temperature: -30 ~ +70℃

Description:



TST028QVHS-18 is 2.8 inch LCD display module, outline dimension is 48x 66.2x 2.75mm, active area is 43.2x57.6mm, resolution is 240x320 and interface is 4 wire SPI interface, without standard capacitive touch panel. Backlight is 520 nits, White LEDs is 4, backlight current is 80mA and backlight voltage is 3.2V, which could be customized. For this 2.8 inch TFT LCD module, driver IC is ST7789V, viewing direction is free, all o'clock, color depth is 65K/262K, white backlight and transmissive mode.

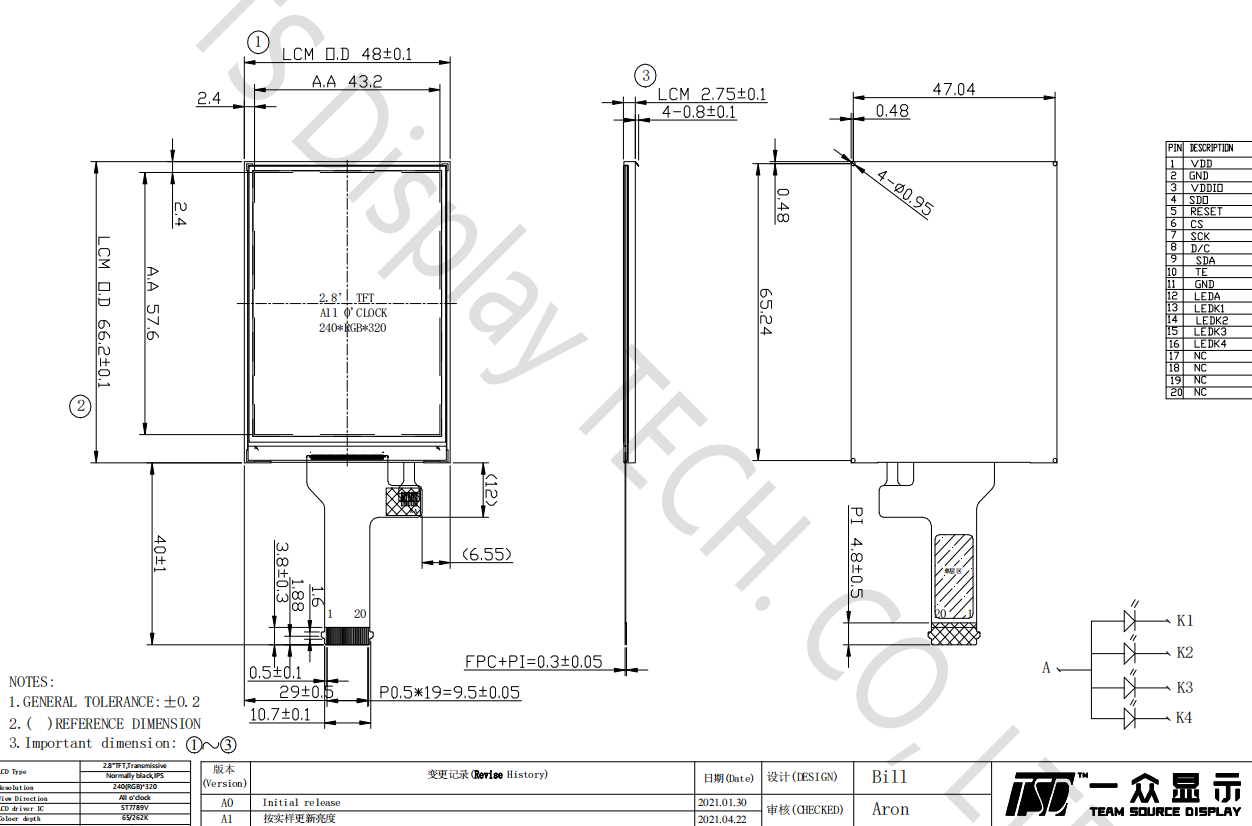

Drawing:




Specifications:



General Specification
Part No.  TST028QVHS-18
Outline Dimension(mm)

48x 66.2x 2.75

Active Area(mm) 43.2x57.6
Resolution(dots) 240x320
Operating temperature(°C) -20 ~ +60°C
Storage temperature(°C) -30 ~ +70°C
Number of Pixel(pixels) 240(H)xRGBx320(V)
Touch panel  w/o CTP
Driver IC ST7789V
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 2.8 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface 4 wire SPI
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 VDD Power supply
2 GND System Ground. (0V)
3 VDDIO Power supply +1.8V~+3.3V
4 SDO Serial data output signal
5 RESET Reset input signal
6 CS chip select signal
7 SCK Serial clock input signal
8 D/C Data/Command selection pin
9 SDA Serial data in/output signal
10 TE Tearing effect output signal
11 GND system ground
12 LEDA Backlight A Anode input pin
13-16 LEDK1~LEDK4 Backlight K Cathode input pin
17-20 NC Not connected




Applications:



For our 2.8 inch LCD display TST028QVHS-18, normally used in smart home product, such as smart thermostat, temperature and humidity control panel, to make it very intelligent life.




Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 2.8" contains 240x320 dots and can display up to 65k/262k colors.
