Description:

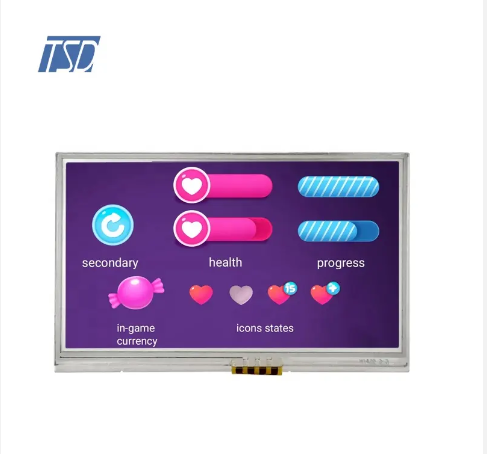

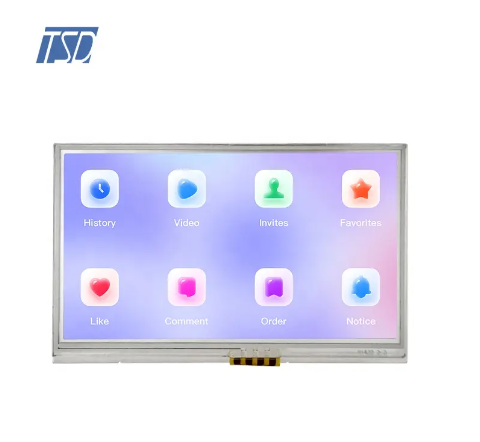

TSM043WQBS-73P is a transmissive type color active matrix liquid crystal display which uses amorphous thin film transistor as switching devices. this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 4.3 inches diagonally measured and the native resolution is 480*272. feathers of this product are listed in the following table

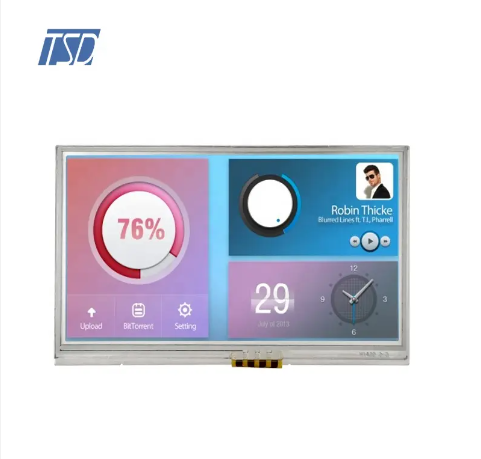

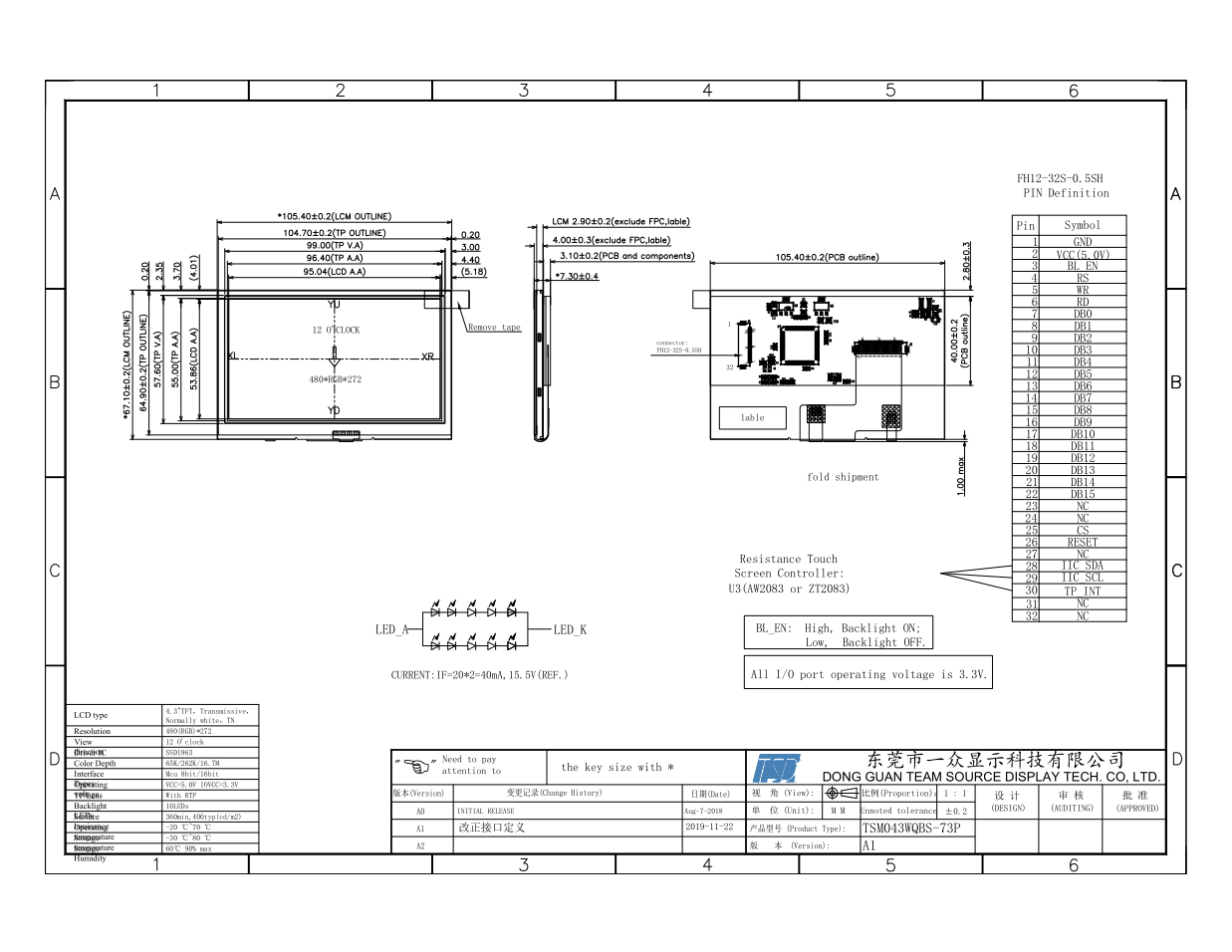

Drawing:
Specification
|
General Specification |
||
|
Part No. |
TSM043WQBS-73P |
|
|
Display Size(Diagonal) |
4.3 inch |
|
|
LCD type |
TFT/Transmissive |
|
|
Resolution |
480x (RGB) ×272 |
|
|
View Direction |
ALL o’clock |
|
|
Module Outline |
105.4(W) x 67.1(H) x 4.0(D)(without PCB) |
|
|
Active Area |
95.04 (W) x 53.86 (H) |
|
|
Viewing Area |
ALL o’clock |
|
|
Back light |
10 LEDs，40mA |
|
|
Driver IC |
SSD1963 |
|
|
Interface |
MCU8/16bit |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Operating Temperature |
-20～70 |
|
|
Storage Temperature |
-30～80 |
|
|
Pins Description |
||
|
Pin No. |
Symbol |
Description |
|
1 |
GND |
System Ground. (0V) |
|
2 |
VCC |
Power supply +5.0V |
|
3 |
BL_EN |
Backlight enable High, Backlight ON; Low, Backlight off. |
|
4 |
RS |
Data/Command select |
|
5 |
WR |
write strobe signal |
|
6 |
RD |
read strobe signal |
|
7~22 |
DB0~DB15 |
MCU16-bit Data bus. Pins not used should be floating. |
|
23-24 |
NC |
Not connection |
|
25 |
CS |
Chip select pin,if not use, please open it |
|
26 |
RESET |
Master synchronize reset |
|
27 |
NC |
Not connection |
|
28 |
XR |
The touch panel X Right pin |
|
29 |
YD |
The touch panel Y Down pin |
|
30 |
XL |
The touch panel X Left pin |
|
31 |
YU |
The touch panel Y Up pin |
|
32 |
DISP |
Standby mode control. (Normally pull high) DISP=“L”, enter standby mode for power saving. Timing controller and source driver will turn off, all outputs are Hi-Z. DISP=“H”, normal operation. |
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
