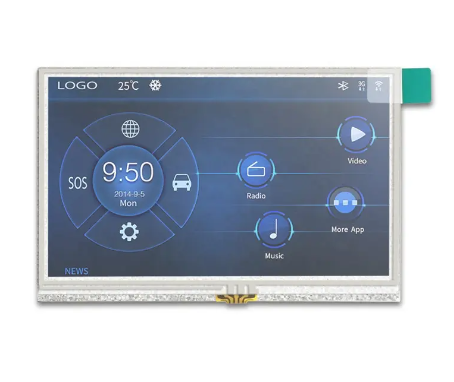

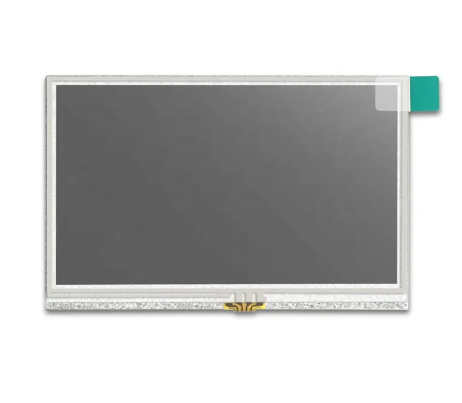

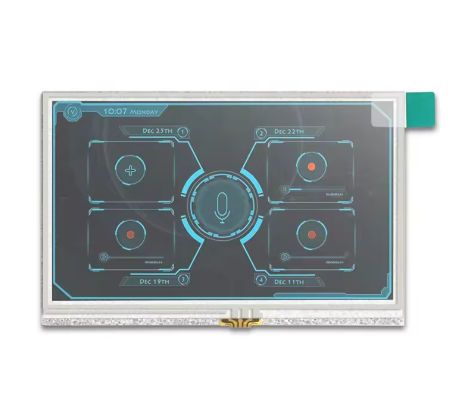

Description:
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) . This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 4.3”contains 480*272 dots and the Active area is 95.04*53.86

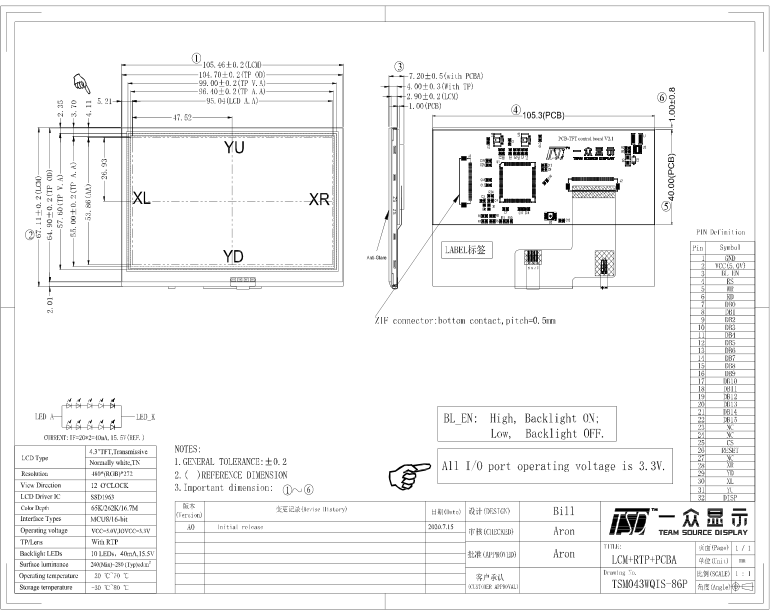

Drawing:
Specification
|
General Specification |
||
|
Part No. |
TSM043WQIS-86P |
|
|
Display Size(Diagonal) |
4.3 inch |
|
|
LCD type |
Normally White |
|
|
Resolution |
480*272 |
|
|
View Direction |
6H |
|
|
Module Outline |
105.46*67.11*7.2 |
|
|
Active Area |
95.04*53.86 |
|
|
Viewing Area |
6 o’clock |
|
|
Touch |
RTP |
|
|
Display Colors |
65K |
|
|
Interface |
MCU8/16 bit |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Operating Temperature |
-20～70 |
|
|
Storage Temperature |
-30～80 |
|
|
Pins Description |
||
|
Pin No. |
Symbol |
Description |
|
1 |
GND |
System ground |
|
2 |
VCC |
Power supply+5.0v |
|
3 |
BL-EN |
Backlight enable High, Backlight on;Low, Backlight off |
|
4 |
RS |
data/Command select |
|
5 |
WR |
Write strobe signal |
|
6 |
RD |
Read strobe signal |
|
7-22 |
DB0-DB15 |
MCU 16 bit data bus Pins not used should be floating |
|
23-24 |
NC |
NC |
|
25 |
CS |
chip select |
|
26 |
RESET |
Master synchronize reset |
|
27 |
NC |
No connection |
|
28 |
XR |
The touch panel pin |
|
29 |
YD |
The touch panel pin |
|
30 |
XL |
The touch panel pin |
|
31 |
YU |
The touch panel pin |
|
32 |
DISP |
Standby mode contro. Normally put high |
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
