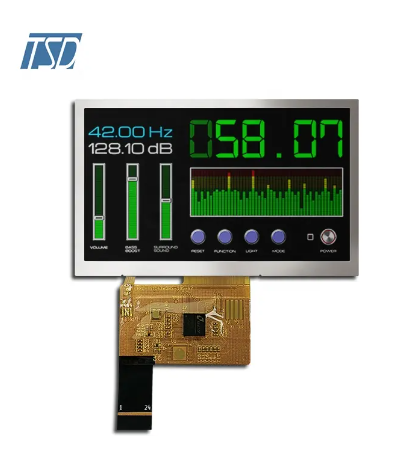

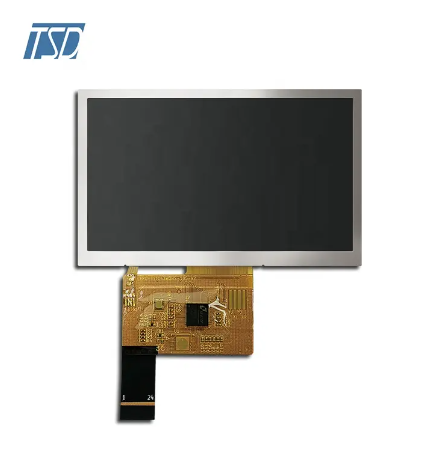

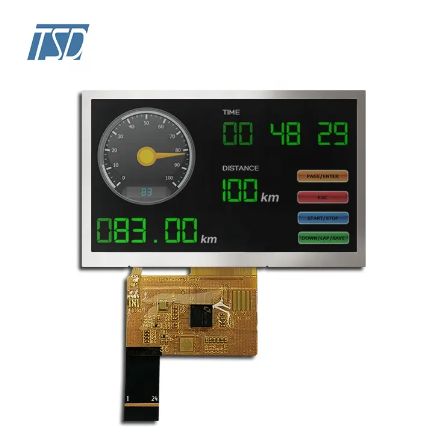

TSD 4.3 Inch TFT LCD Customization lcd panel 320 x (RGB) × 240 resolution

General Specification

Part No.

TST043WQHS-105

Display Size(Diagonal)

4.3 inch

LCD type

Normally White

Resolution

480(RGB) × 272

View Direction

All o’clock

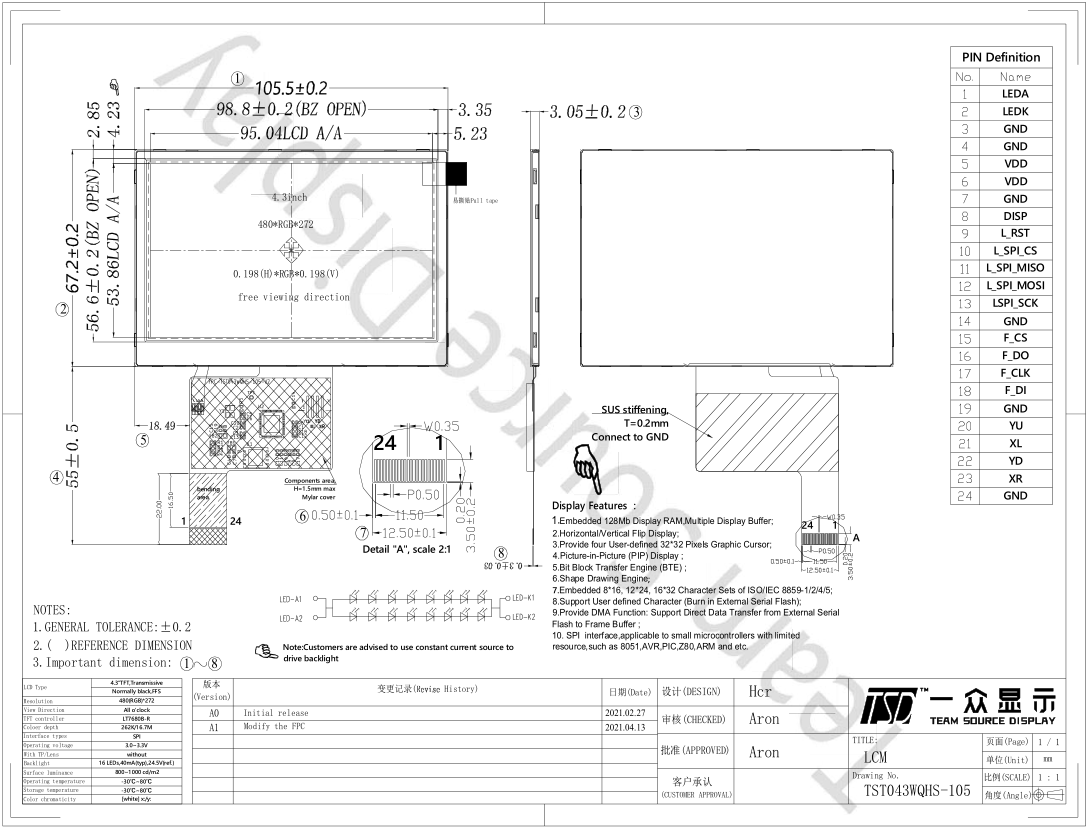

Module Outline

105.4(H) x 67.1(V) x 2.9(T)

Active Area

95.04 (H) x 53.86 V)

Touch

Without

Backlight

16 LED ， 40mA

Interface

SPI

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-20～70

Storage Temperature

-30～80

Pins Description

Pin No.

Symbol

Description

1

LEDA

Backlight A Anode input pin.

2

LEDK

Backlight K Cathode input pin.

3

GND

System Ground. (0V)

4

GND

System Ground. (0V)

5

VDD

Power supply +3.3V

6

VDD

Power supply +3.3V

7

GND

System Ground. (0V)

8

DISP

Standby mode control. (Normally pull high)

DISP=“L”, enter standby mode for power saving. Timing controller and

source driver will turn off, all outputs are Hi-Z.

DISP=“H”, normal operation.

9

L_RST

Reset Signal Input. This is a active low Rese

10

L_SPI_CS

Chip select pin for 4-wire serial I/F of the LT7680

11

L_SPI_MISO

Data output pin of 4-wire SPI I/F of the LT7680. Connect to MCU‟s

12

L_SPI_MOSI

Data input pin of 4-wire SPI I/F of the LT7680. Connect to MCU‟s

13

L_SPI_SCK

SPI Clock input.Clock of 4-wire SPI I/F of the LT7680 .

14

GND

System Ground. (0V)

15

F_CS SPI

Chip select pin for serial Flash device.( option )

16

F_DO

Data output of serial Flash device.( option )

17

F_CLK

Serial clock input for serial Flash device.( option )

18

F_DI

Data input of serial Flash device.( option )

19

GND

System Ground. (0V)

20

YU

The RTP PIN(option). NO connect

21

XL

22

YD

23

XR

24

GND

Ground
