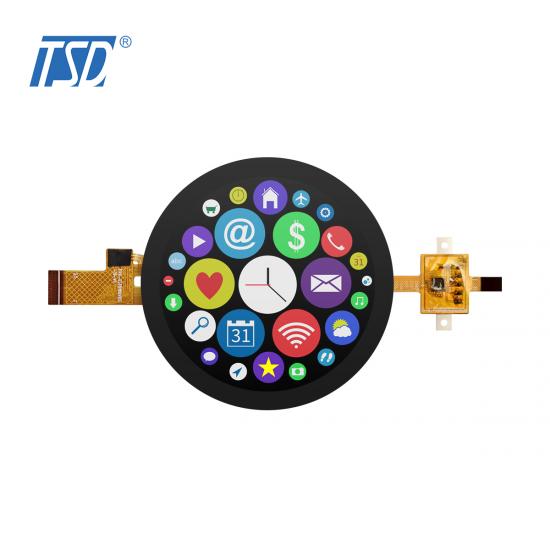

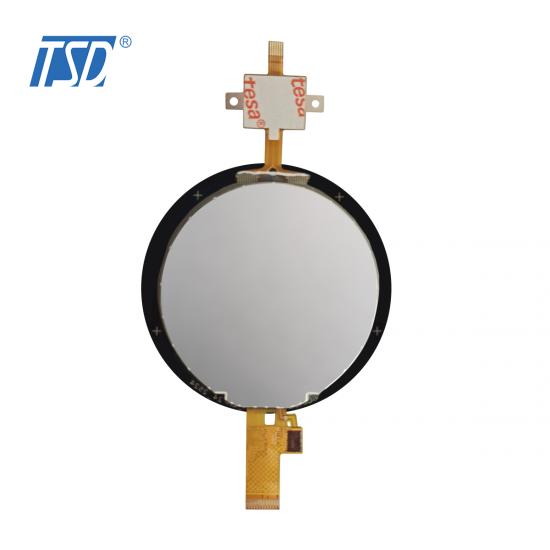

TSD 1.8 Inch Round TFT LCD 360 x (RGB) × 360 resolution

LCD Type: a-Si TFT,Transmissive,Normally black,IPS, round / circular shape

Resolution: 360 x (RGB) × 360

View Direction: All o’clock

LCD driver IC: ST77916

CTP driver IC : CF4320M

Interface types: MCU/ QSPI

Operating voltage: 2.8v

Surface luminance: 250(Typ)

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:

TST018QVBS-19C is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a Backlight,a driving circuit, a Capacitive touch screen.This TFT LCD has a 1.8 inch diagonally measured active display area with 360 horizontal by 360 vertical pixel resolution.





Drawing:



Specification



General Specification

Part No.

TST018QVBS-19C

Outline Dimension(mm)

56.37(H) x 56.37(V) x3.31(T)

Active Area(mm)

46.08(H) x 46.08(V)

Resolution(dots)

360 x (RGB) × 360

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Brightness

250(Typ)

Touch panel

With CTP

Display mode

Normal black, IPS

View direction

All o'clock

Weight(g)

TBD

Interface

MCU / QSPI

LCD  IC

ST77916

CTP IC

CF4320M







Pins Description

Pin No.

Symbol

Description

1

D7

MCU Data Bus

2

D6

MCU Data Bus

3

D5

MCU Data Bus

4

D4

MCU Data Bus

5

D3/SDA3
MCU Data Bus&QSPI interface data input/output.

6

D2/SDA2
MCU Data Bus&QSPI interface data input/output.

7

D1/SDA1

MCU Data Bus&QSPI interface data input/output.

8

D0/SDA0
MCU Data Bus&QSPI interface data input/output.

9

WR

Write enable in MCU parallel interface.

10

RD/SCLK
Read enable in MCU parallel interface&Clock in SPI interface.

11

RS

Data/Command selection pin

12

CS

Chip select

13

NC

No connection

14

RESET
Chip reset pin(Low Active)

15

TE

Tearing effect signal

16

GND



System Ground. (0V)

17

NC



System Ground. (0V)

18

IOVCC



LCD I/O Power supply

19

VCC



LCD Power supply

20

IM0

The System interface mode select.
If IM[2:0] for [0,1,1],This setting is QSPI;
If IM[2:0] for [1,1,1],This setting is MCU 8bit;



For more Settings, please refer to the IC specification sheet

21

IM1

22

IM2

23

LEDK



Backlight K Cathode input pin.

24

NC

No connection

25

LEDA



Backlight A anode input pin.



 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
