Description:

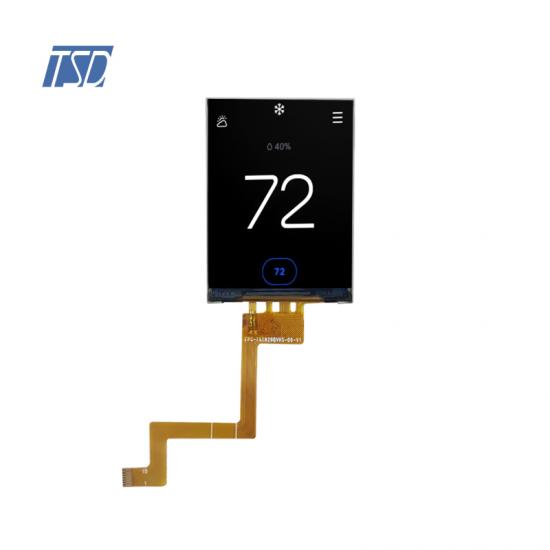

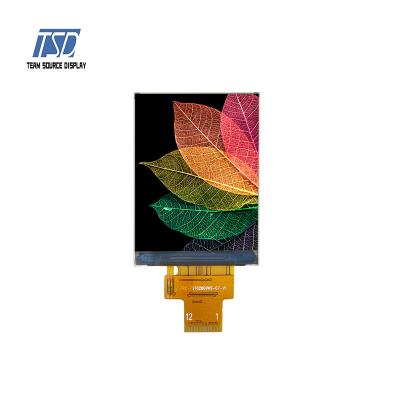

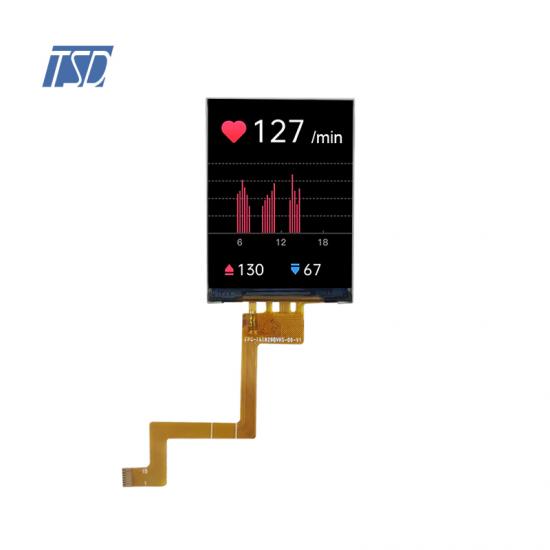

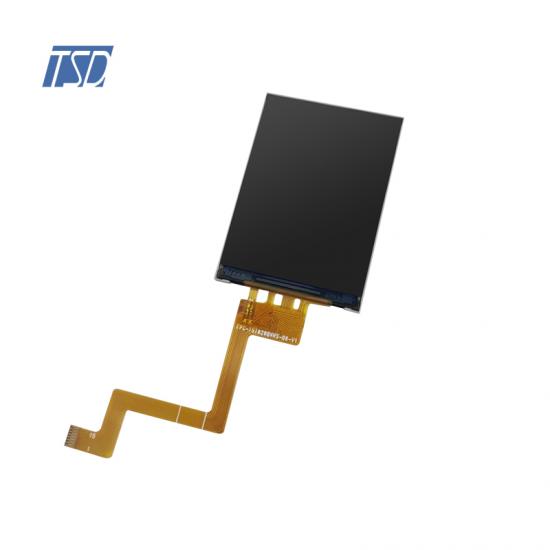

TST020QVHS-06BC is a color active matrix TFT-LCD Panel using amorphous silicon TFT's as an active switching devices. this model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 30.6 (W) x 40.8 (H) mm diagonally measured active area with 240 x (RGB) × 320 resolutions.

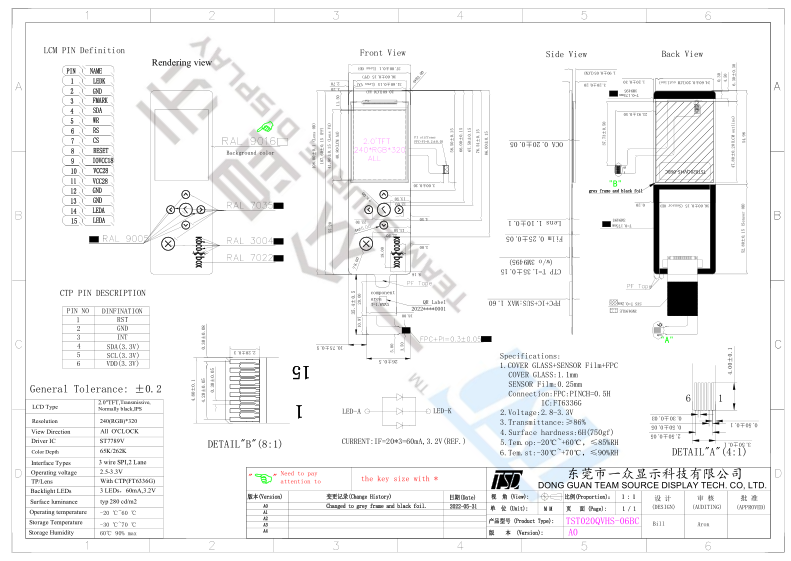

Drawing:
Specification
|
General Specification |
||
|
Part No. |
TST020QVHS-06BC |
|
|
Outline Dimension(mm) |
30.6 (W)*47.8(H)*1.9(T) |
|
|
Active Area(mm) |
30.6 (W) x 40.8 (H) |
|
|
Resolution(dots) |
240 x (RGB) × 320 |
|
|
Operating temperature(°C) |
-20 ~ +70°C |
|
|
Storage temperature(°C) |
-30 ~ +80°C |
|
|
Brightness |
280(Typ) |
|
|
Touch panel |
With CTP[FT6336G,only for touch key] |
|
|
Pixel arrangement |
RGB Vertical stripe |
|
|
Display mode |
Normal black, IPS |
|
|
Surface treatment |
Antiglare |
|
|
View direction |
All o'clock |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Interface |
3 wire SPI, support 2 lane |
|
|
Ic |
ST7789V |
|
|
Pins Description |
||
|
Pin No. |
Symbol |
Description |
|
1 |
LEDK |
Backlight K Cathode input pin. |
|
2 |
GND |
System Ground. (0V) |
|
3 |
FMARK |
Tearing Effect output signal |
|
4 |
SDA |
serial interfacedata input pin. |
|
5 |
WR |
Second Data lane in 2 data lane serial interface. If not used, please fix this pin at IOVCC or GND. |
|
6 |
RS/SCL |
serial interface clock input pin |
|
7 |
CS |
Chip select signal. |
|
8 |
RESET |
Reset input signal |
|
9 |
IOVCC |
Power supply 1.8~ 3.3V |
|
10 |
VCC28 |
Power supply 2.5~3.3V |
|
11 |
VCC28 |
Power supply 2.5~3.3V |
|
12 |
GND |
System Ground. (0V) |
|
13 |
GND |
System Ground. (0V) |
|
14 |
LEDA |
Backlight A Aothod input pin. |
|
15 |
LEDA |
Backlight A Aothod input pin. |
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
