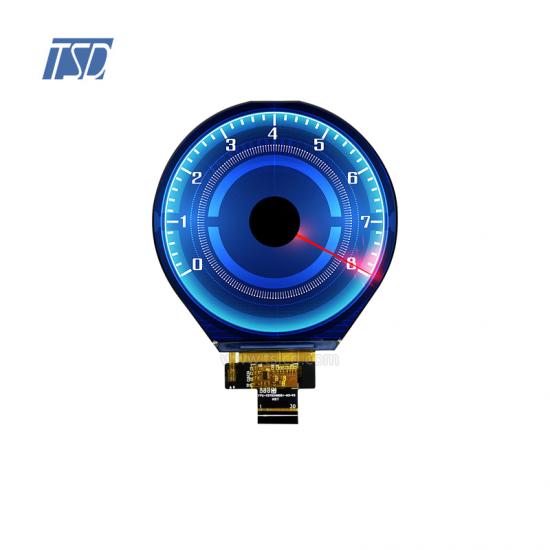

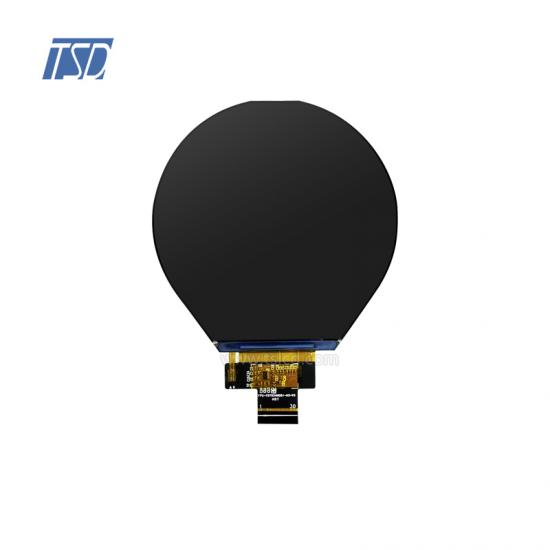

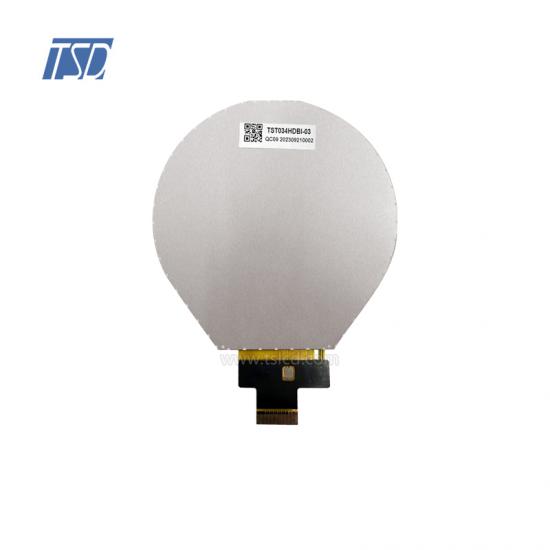

TSD 800x800 resolution 3.4 inch circular tft lcd display with RGB interface



  • Model Name: TST034HDBI-03
  • LCD Type: 3.4 inch IPS TFT display
  • Resolution: 800x800
  • Viewing angle: All o'clock
  • Brightness: 250 cd/m2
  • Driver IC: ILI9881C-05
  • Interface: MIPI
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃









Description:



TST034HDBI-03 is lcd module 3.4 inch round tft lcd display, high resolution 800x800 with excellent performance. Outline size for backlight  is 94.9x96.95mm, for LCD is 94.6x96.6mm. LCD driver IC is ILITEK ILI9881C-05, interface type is 30 pins 4 lane MIPI. This round tft display is IPS glass with free viewing, transmissive type, normally black. Backlight is white color, 8 LEDs, 40mA, 12V. Surface luminance is 250 cd/m2.

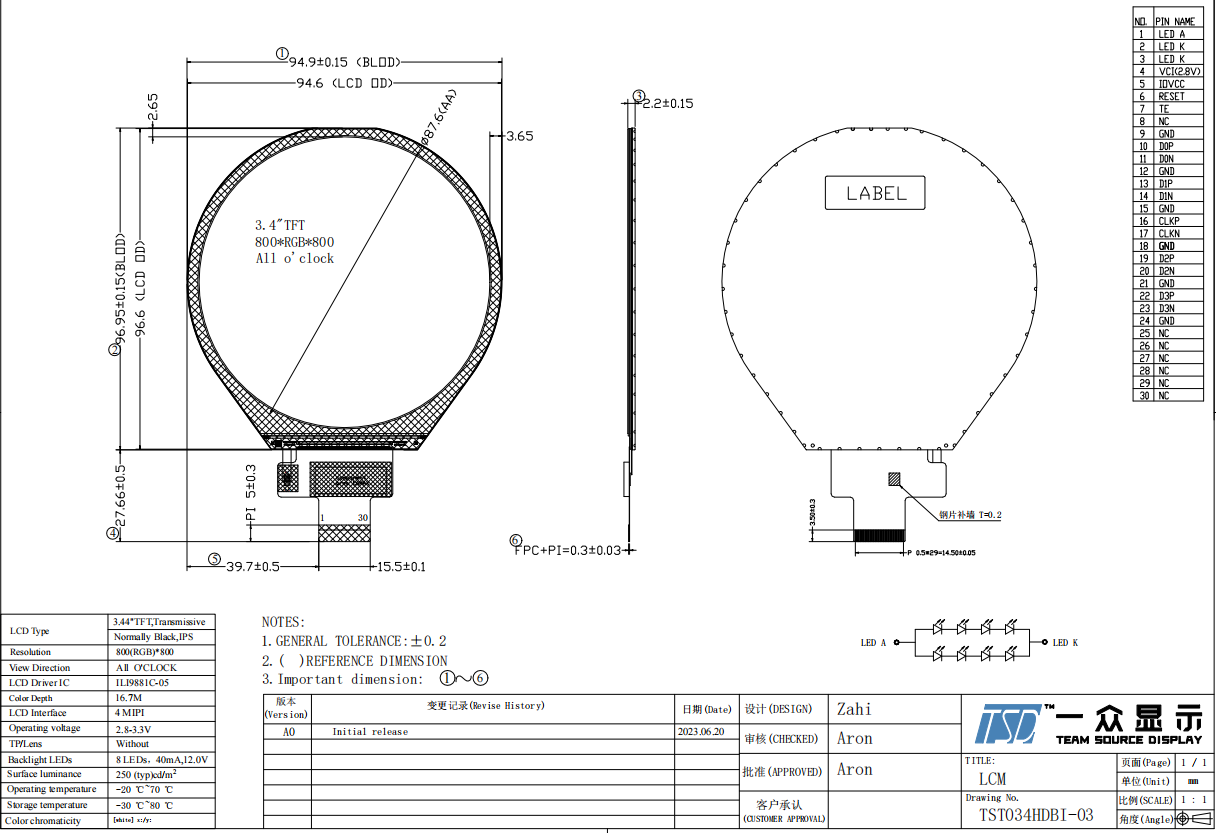

Drawing:




Specifications:



General Specification
Part No.  TST034HDBI-03
Outline Dimension for Backlight(mm)

94.9(W)x96.95(H)x2.2(D)

Outline dimension for LCD(mm) 94.6(W) x 96.6(H)
Resolution(dots) 800x (RGB) × 800
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 800RGB(H)xRGBx800(V)
Touch panel  without
Driver IC ILI9881C-05
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 3.4 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MIPI
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 LEDA BackliBacklight A Aothod input pin.
2 LEDK Backlight K Cathode input pin.
3 LEDK Backlight K Cathode input pin.
4 VCI Power supply +2.8V
5 IOVCC Power supply
6 RESET Reset signal
7 TE Tearing Effect output signal
8 NC No connect
9 GND Ground
10 D0P MIPl data aothod input pin
11 D0N
MIPl data cathode input pin
12 GND No connect
13 D1P MIPl data aothod input pin
14 D1N MIPl data cathode input pin
15 GND Ground
16 CLKP Clock pin
17 CLKN Clock pin
18 AGND Ground
19 D2P MIPl data aothod input pin
20 D2N MIPl data cathode input pin
21 GND Ground
22 D3P MIPl data aothod input pin
23 D3N MIPl data cathode input pin
24 GND
Ground
25 NC
No connect
26 NC
No connect
27 NC No connect
28 NC No connect
29 NC No connect
30 NC No connect






Features:



The circular LCD screen is a major innovation in liquid crystal display technology. Its display principle is similar to that of the square LCD screen. However, through adjustments to the LCD glass production technology and screen parameters, the circular screen can display normally even in a circular state. . Compared with traditional rectangular LCD screens, circular LCD screens have a more beautiful appearance and are more in line with people's aesthetic concepts. In recent years, circular LCD screens have become more and more popular in the market and are widely used in various fields. The application prospects of circular LCD screens are very broad. With the continuous advancement of technology and the growing market demand, it will have wider application scenarios and richer functions.
