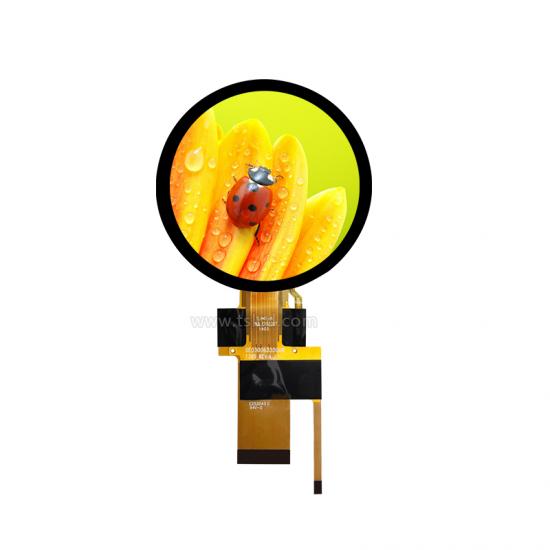

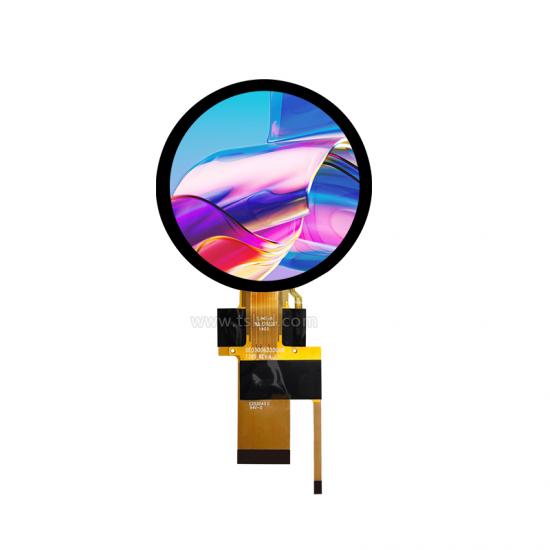

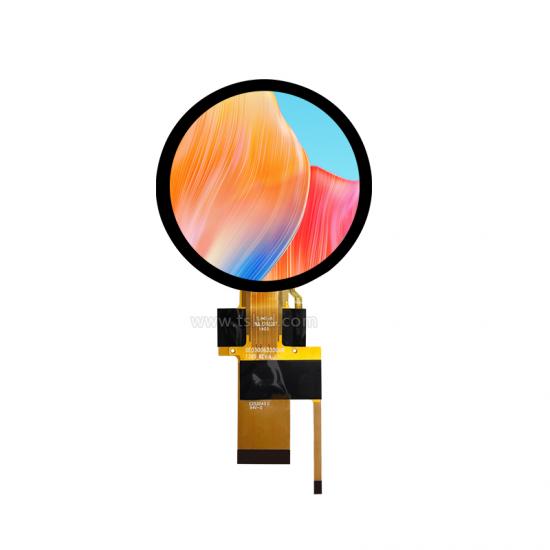

TSD Custom 3.0 Inch TFT Touch Screen TST030GN06-01C

Model Name:TST030GN06-01C

LCD Type:tft

Resolution: 432xRGBx432

Viewing angle: All

Brightness:500

Driver IC:HX8363

Interface:RGB

Description:



TST030GN06-01C is a transmission type color active matrix liquid crystal display (LCD), using amorphous thin film transistor (TFT) as a switching device. This product is composed of TFTLCD panel, driver IC, FPC, PCB board, backlight and capacitive touch screen. The active display area is a 76.4x76.4 measurement on the diagonal, with an active resolution of 432xRGBx432. This 3.0 inch LCD can be used to display pictures and text, and it's with standard Capacitive touch screen.

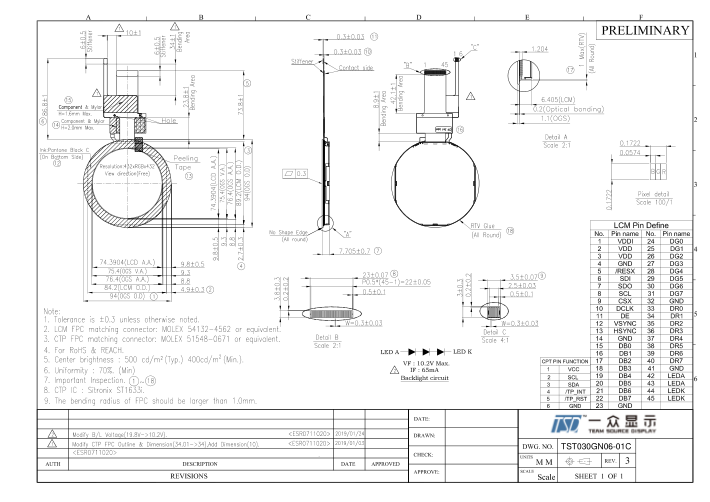

Drawing:

Specifications:





General Specification

Part No.

TST030GN06-01C

Outline Dimension(mm)

94x94x7.7

Active Area(mm)

76.4x76.4

Resolution(dots)

432xRGBx432

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Touch panel

CTP

Driver IC

HX8363

Display mode

Normal black

Surface treatment

Antiglare

View direction

All o'clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Interface

RGB

Module lifetime(Hours)

50,000-100,000

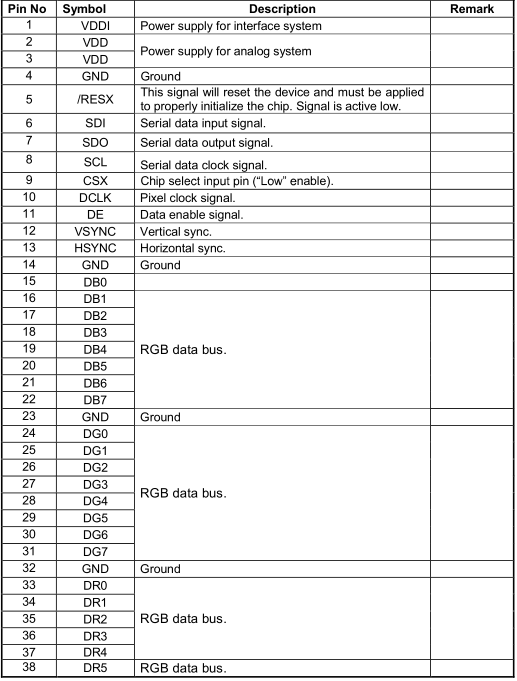

Pin No.

Symbol

Description

1

VDDI

Power supply for interface system

2

VDD

Power supply for analog system

3

VDD



4

GND

Ground

5

/RESX

This signal will reset the device and must be applied
to properly initialize the chip. Signal is active low.

6

SDI

Serial data input signal.

7

SDO

Serial data output signal.

8

SCL

Serial data clock signal.

9

CSX

Chip select input pin("Low" enable).

10

DCLK

Pixel clock signal.

11

DE

Data enable signal.

12

VSYNC

Vertical sync.

13

HSYNC

Horizontal sync.

14

GND

Ground

15

DBO



16

DB1

RGB data bus.

17

DB2



18

DB3



19

DB4



20

DB5



21

DB6



22

DB7



23

GND

Ground

24

DGO

AI
RGB data bus.

25

DG1



26

DG2



27

DG3



28

DG4



29

DG5



30

DG6



31

DG7



32

GND

Ground

33

DRO

RGB data bus.

34

DR1



35

DR2



36

DR3



37

DR4



38

DR5

RGB data bus.

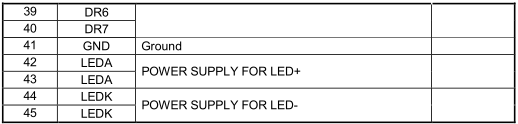

39

DR6



40

DR7



41

GND

Ground

42

LEDA

POWER SUPPLY FOR LED+

43

LEDA



44

LEDK

POWER SUPPLY FOR LED-

45

LEDK








Applications:

1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
