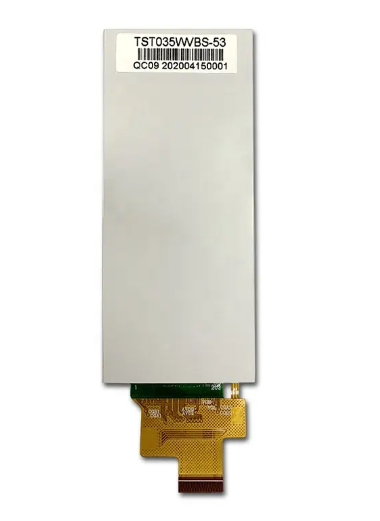

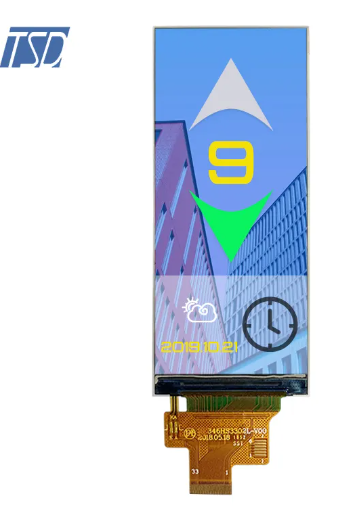

TSD 3.5 Inch TFT LCD Customization lcd panel with capacitive touch panel 340*800 Resolution

LCD Type:α-Si TFT

Resolution: 340RGB x 800

View Direction: All o’clock

LCD driver IC: ST7701S

Interface types:16bit-RGB

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:

This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 3.46”contains 340(RGB)X800 dots and can display up to 262k colors.

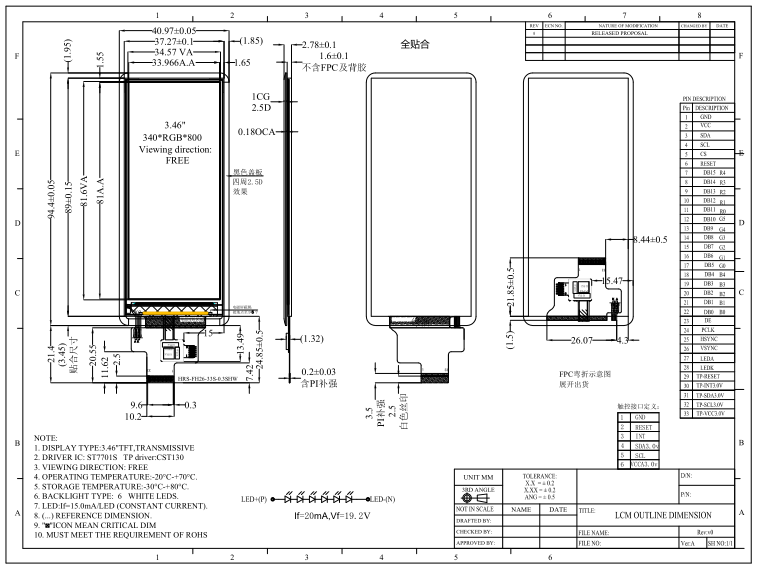

Drawing:

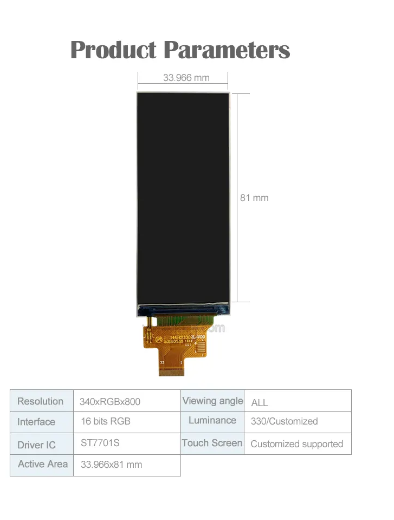

Specification



General Specification

Part No.

TST035WVBS-53C

Display Size(Diagonal)

3.46 inch

LCD type

α-Si TFT

Resolution

340RGB x 800

View Direction

ALL o’clock

Module Outline

37.27(H) ×89(V)×1.6(T) (Note 1 )

Active Area

33.966 (H)×81(V)

Viewing Area

ALL o’clock

Display Colors

262K

Interface

16bit-RGB

Driver IC

ST7701S

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-20~70

Storage Temperature

-30~80



Pins Description

Pin No.

Symbol

Description

1

GND

Power Ground

2

VDD

Power Supply forAnalog, VDD=2.4V~3.3V.

3

SDA

SPI interface input/output pin. The data is latched on the rising edge of the SCL signal.

4

SCL

This pin is used to be serial interface clock.

CS

Chip selection pin; Low enable, High disable.

6

RESET

This signal will reset the device and it must be applied to properly initialize the chip.

Signal is active low.

7-22

D15-D0

RGB data

23

DE

Data enable signal for RGB interface operation

24

PCLK

Clock signal for RGB interface operation.

25

HSYNC

Horizontal signal input

26

VSYNC

Vertizontal signal input

27

LEDA

LED Anode

28

LEDK

LED Cathode

29

TP-RESET

System reset of Touch PanelIf no usedlet this pin open.

30

TP-INT3.0V

Interrupt signal to main processor of Touch PanelIf no usedlet this pin open.

31

TP-SDA3.0V

I²C data signal of Touch PanelIf no usedlet this pin open.

32

TP-SCL3.0V

I²C clock signal of Touch PanelIf no usedlet this pin open.

33

TP-VCC3.0V

Analog power supply of Touch Panel. If no usedlet this pin open.



 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
