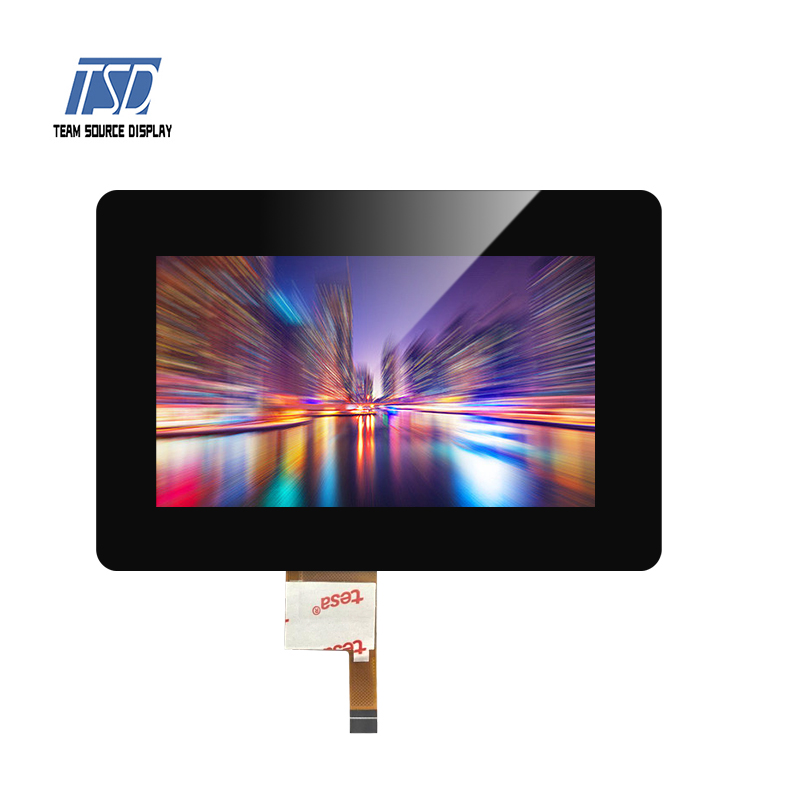

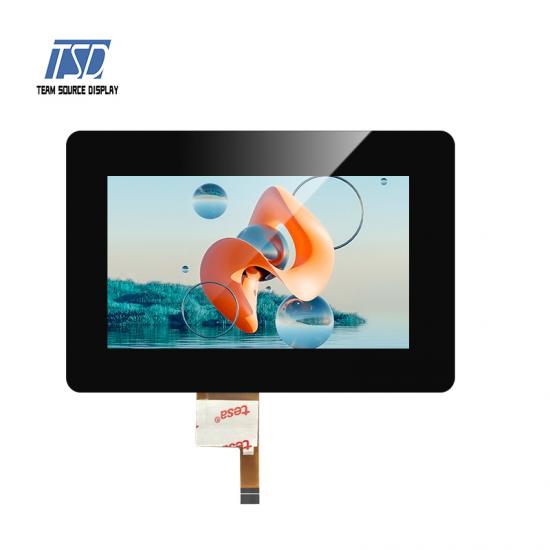

TSD 4.3inch 480x272 IPS MCU tft lcd display with SSD1963

  • Model Name: TSM043WQHS-67C
  • LCD Type: 4.3 inch TFT LCD display
  • Resolution: 480x272
  • Viewing angle: All o'clock
  • Brightness: 850 cd/m2
  • Driver IC: SSD1963
  • Interface: MCU 8/16 bits
  • Touch Screen: with capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



TSM043WQHS-67C is 4.3 inch 480x272 resolution RGB 24 bit LCD display module. This horizontal display could be with standard capacitive or resistive touch panel. Backlight is 850 nits, White LEDs is 16, backlight current is 40mA and backlight voltage is 24.8V, which could be customized. For this 4.3 inch TFT LCD module, driver IC is SSD1963, viewing direction is free, all o'clock, color depth is 16.7M, white backlight and transmissive mode.

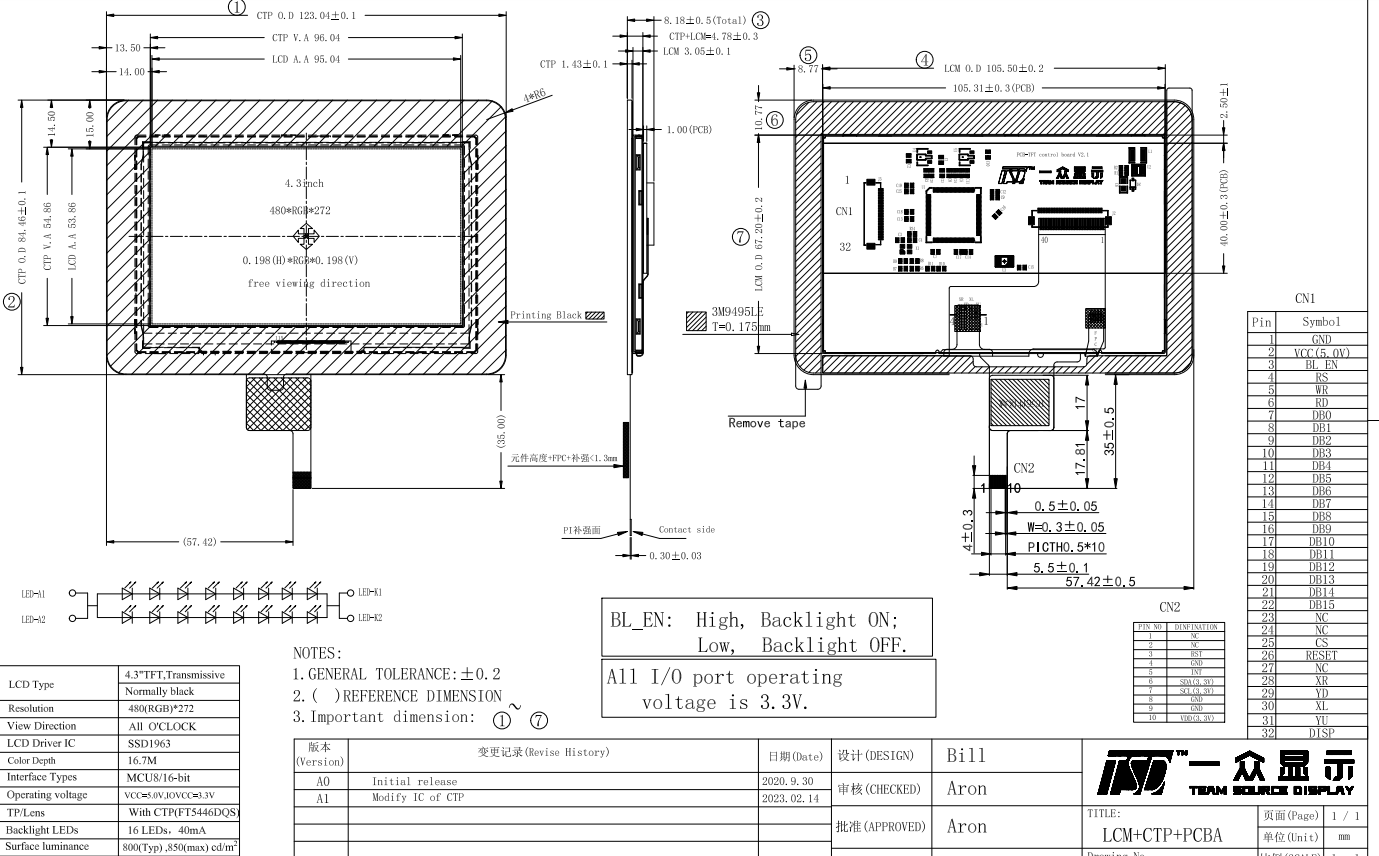

Drawing:


Specifications:



General Specification
Part No.  TSM043WQHS-67C
Outline Dimension(mm)  123.04x84.46x8.18
Active Area(mm) 95.04x53.86
Resolution(dots) 480x272
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 480(H)xRGBx272(V)
Touch panel  with CTP
Driver IC SSD1963
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 4.3 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MCU 8/16 bits
Module lifetime(Hours) 20,000-40,000





Pins Description
Pin No.  Symbol
1 GND
2 VCC
3 BL_RS
4 RS
5 WR
6 RD
7-22 DB0-DB15
23-24 NC
25 CS
26 RST
27-31 NC
32 DISP




Applications:



For our 4.3 inch 480x272 resolution tft LCD display TSM043WQHS-67C, normally used in smart home product, such as washing machine, coffee machine and home control, to make it very intelligent life.




Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 4.3" contains 480x272 dots and can display up to 16.7M colors.
