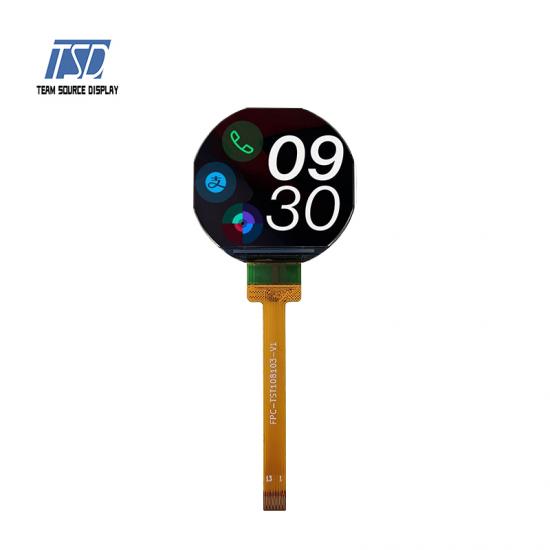

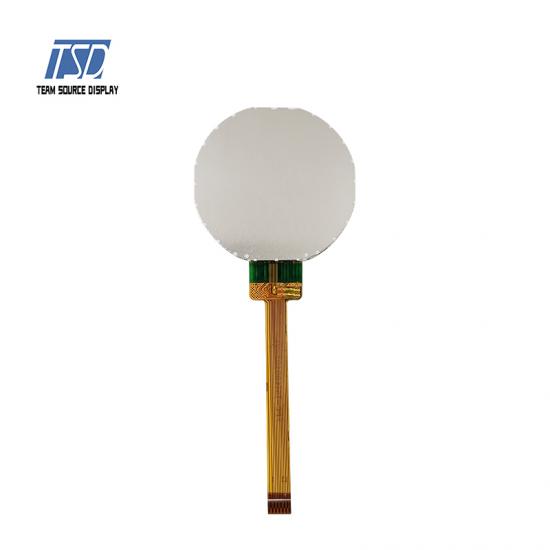

TSD 400x400 resolution 1.6 inch IPS round lcd display with MIPI interface



  • Model Name: TST016WVBS-H01
  • LCD Type: 1.6 inch IPS TFT display
  • Resolution: 400x400
  • Viewing angle: All o'clock
  • Color depth: 262K
  • Driver IC: ST7797
  • Interface: MIPI
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



TST016WVBS-H01 is 400x400 high resolution color TFT lcd module, it's using BOE IPS glass with full viewing direction, coming out with 12 pins MIPI DSI interface. FPC is ZIF connecting type, TSD could also make the customization basing on customer's requirements. Driver IC is Sitronix ST7797 model, backlight is white color with 3pcs in parallel, backlight current is 20mA per pcs of LED. Operating temperature is -20 to 70°C, storage temperature is -30 to 80°C.

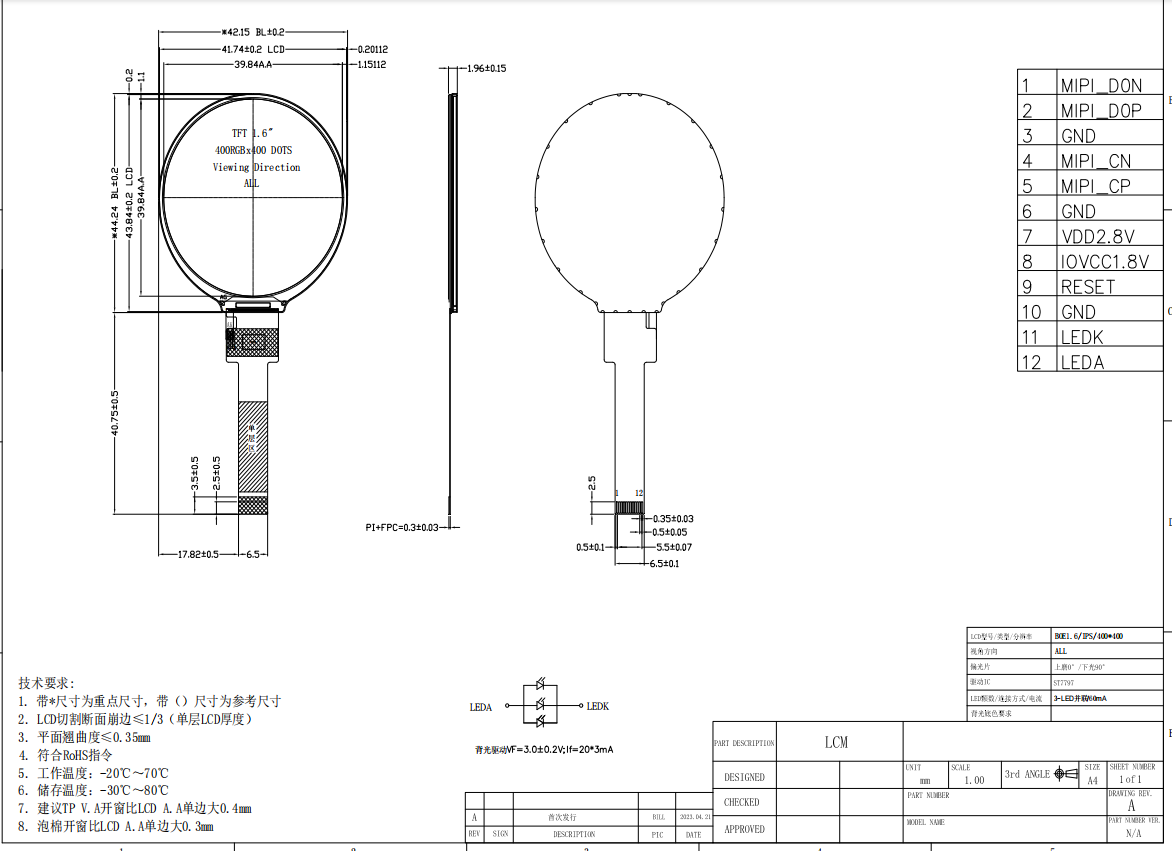

Drawing:



1.6 inch TFT


Specifications:



General Specification
Part No.  TST016WVBS-H01
Outline Dimension(mm)

42.15(W)x42.24(H)x1.96(D)

Active Area(mm) 39.8(W) x 39.8(H)
Resolution(dots) 400x (RGB) × 400
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 400RGB(H)xRGBx400(V)
Touch panel  without
Driver IC ST7797
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 1.6 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MIPI
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 MIPI_DD0N MIPI DSI : Data differential signal input pins. (Data lane 0 negative)
2 MIPI_D0P MIPI DSI : Data differential signal input pins. (Data lane 0 postive)
3 GND System Ground (0V)
4 MIPI_CN MIPI DSl : clock differential signal input pins. (Clock lane negative)
5 MIPI_CP MIPI DSl : clock differential signal input pins. (Clock lane postive)
6 GND System ground
7 VDD2.8V Power supply 2.8V
8 IOVCC1.8V 1.8V, Power supply for logic and I/o circuits
9 RESET Chip reset pin(Low Active)
10 GND Power ground
11 LEDK Power supply for LED1-
12 LEDA
Power supply for LED1+






Features:



The circular LCD screen is a major innovation in liquid crystal display technology. Its display principle is similar to that of the square LCD screen. However, through adjustments to the LCD glass production technology and screen parameters, the circular screen can display normally even in a circular state. . Compared with traditional rectangular LCD screens, circular LCD screens have a more beautiful appearance and are more in line with people's aesthetic concepts. In recent years, circular LCD screens have become more and more popular in the market and are widely used in various fields. The application prospects of circular LCD screens are very broad. With the continuous advancement of technology and the growing market demand, it will have wider application scenarios and richer functions.

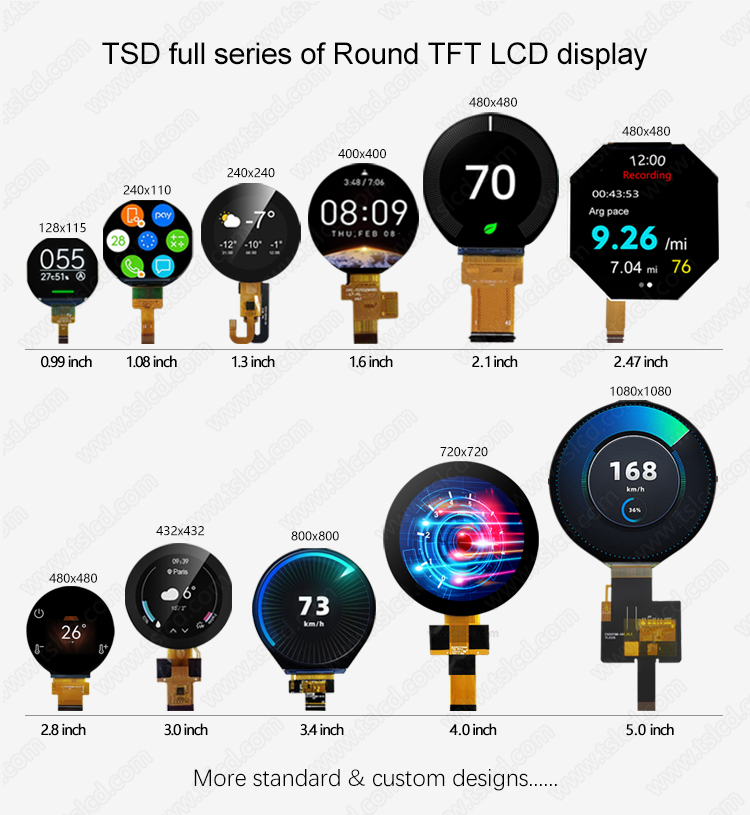

As for TSD round tft display, we have full series of round display module,contact us today for more information.



round tft display
