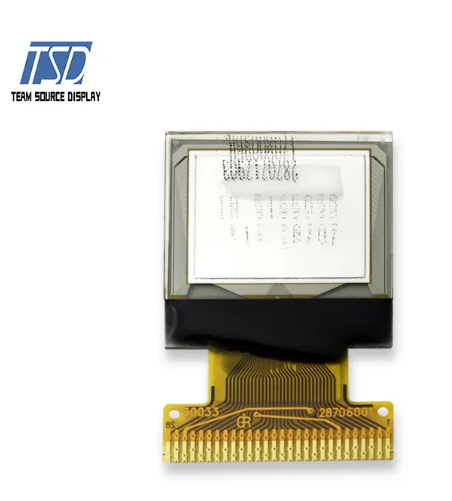

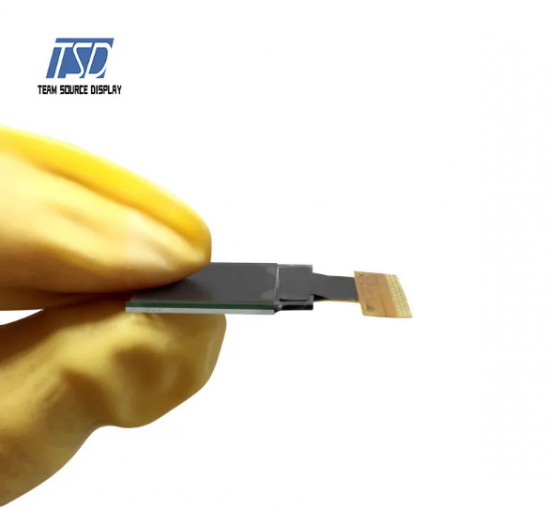

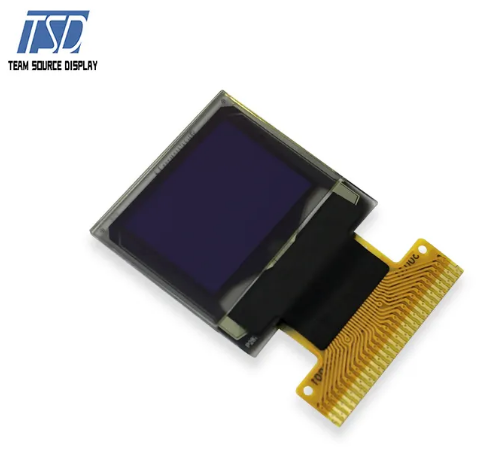

TSD 0.66 inch small size OLED Customization lcd panel

General Specification

Part No.

VGM064048A0W13

Dot Matrix

64(W)×48(H)

Dot Size

0.19(W)×0.19(H)

Dot Pitch

Dot Pitch

Aperture Rate

82

Active Area

13.42(W)×10.06 (H)

Panel Size

18.46(W)×18.1(H)×1.05(T)

Touch panel

without

Module Size

18.46(W)×27.9(H)×1.28 (T)

Diagonal A/A Size

0.66

Module Weight

0.82±10%

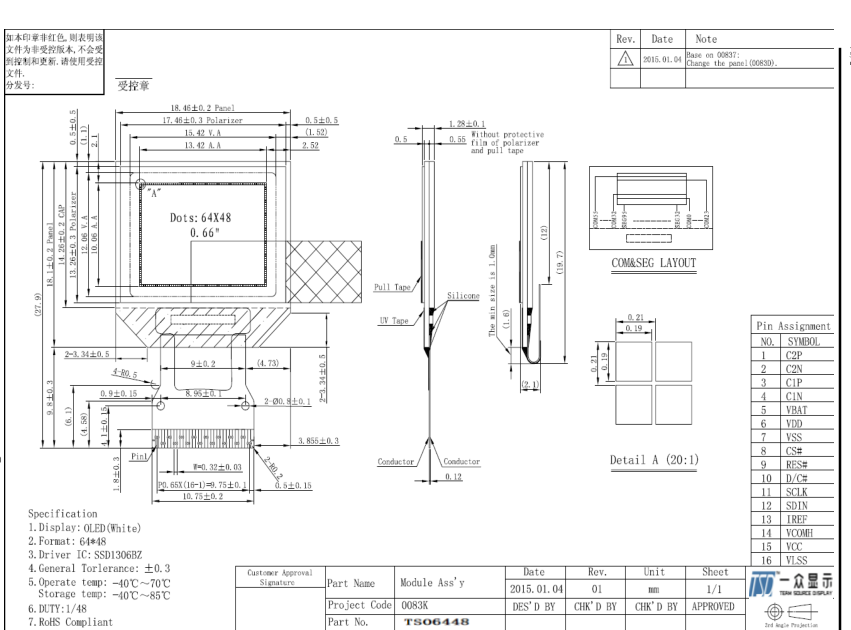

Pins Description

Pin No.

Symbol

Description

1

C2P

Pin for charge pump capacitor; Connect to each other with a capacitor.

Connect to each

2

C2N

3

C1P

 Pin for charge pump capacitor; Connect to each other with a capacitor.

4

C1N

5

VBAT

Power supply for charge pump regulator circuit.

6

VDD

Power supply pin for core logic operation.

7

VSS

Ground.

8

CS#

This pin is the chip select input. (active LOW).

9

RES#

This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is

executed.Keep this pin HIGH (i.e. connect to VDD) during normal operation.

10

 D/C

This is Data/Command control pin. HIGH: data ; LOW: command.

11

SCLK

Clock input.

12

SDIN

Data input.

13

 IREF

This is segment output current reference pin.

A resistor should be connected between this pin and VSS to maintain the IREF.

14

VCOMH

The pin for COM signal deselected voltage level.

A capacitor should be connected between this pin and VSS.

15

 VCC

Power supply for panel driving voltage. This is also the most positive power voltage

supply pin. When charge pump is enabled, a capacitor should be connected between

this pin and VSS.

16

VLSS

This is an analog ground pin. It should be connected to VSS externally.
