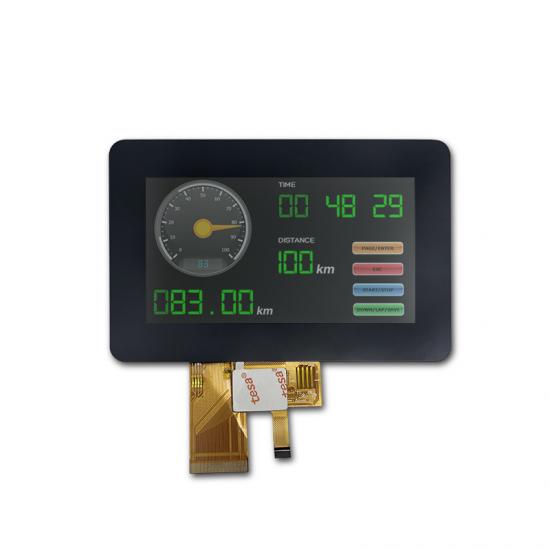

TSD 4.3 inch automotive high brigntness 480x272 LCD display

  • Model Name: TST043WQHS-115C
  • LCD Type: 4.3 inch TFT LCD display
  • Resolution: 480x272
  • Viewing angle: All o'clock
  • Brightness: 720 cd/m2
  • Driver IC: ST7282
  • Touch IC: FT5446DQS
  • Interface: RGB 24 bits
  • Touch Screen: with capacitive touch panel
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -30 ~ +80℃

Description:

TST043WQHS-115C is 4.3 inch 480x272 resolution RGB 24 bits interface LCD display module in automotive grade, with standard capacitive touch panel, it's very suitable for automotive product, such as automotive infotainment screen and EV charger. The brightness is 720 nits, White LEDs is 16, backlight current is 40mA and backlight voltage is 24.8V, which could be customized. For this 4.3 inch TFT LCD module, driver IC is ST7282, touch IC is FT5446DQS, viewing direction is free, all o'clock, color depth is 16.7M, white backlight and transmissive mode.

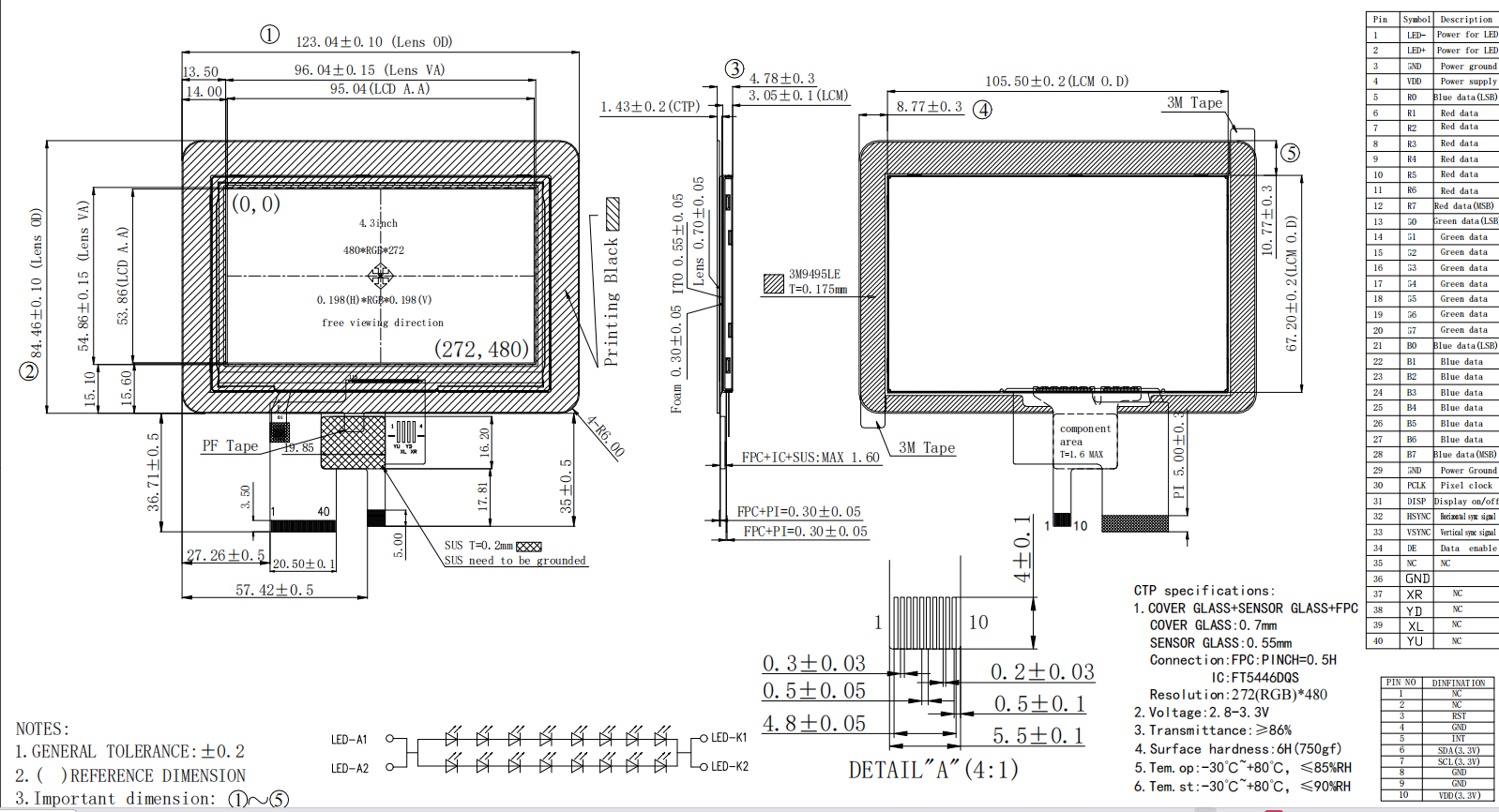

Drawing:




Specifications:



General Specification
Part No.  TST043WQHS-115C
Outline Dimension(mm)  123.04x84.46x4.78
Active Area(mm) 95.04x53.86
Resolution(dots) 480x272
Operating temperature(°C) -30 ~ +80°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 480(H)xRGBx272(V)
Touch panel  with CTP
Driver IC ST7282
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 4.3 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB 24 bits
Module lifetime(Hours) 50,000





Pins Description
Pin No.  Symbol Description
1 LED- Power for LED
2 LED+ Power for LED
3 GND Power ground
4 VDD Power supply
5-12 R1-R7 Red data
13-20 G0-G7 Green data
21-28 B0-B7 Blue data, B7-MSB.
29 GND Power Ground.
30 PCLK Pixel clock
31 DISP Display on/off
32 HSYNC Horizontal sync signal
33 VSYNC Vertical sync signal
34 DE Data enable
35 NC NC
36 GND Power ground
37 XR NC
38 YD NC
39 YL NC
40 YU NC




Applications:



For our 4.3 inch 480x272 TFT LCD display model TST043WQHS-115C, it is normally used in automotive application and outdoor products.


Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 4.3" contains 480x272 dots and can display up to 16.7M colors.
