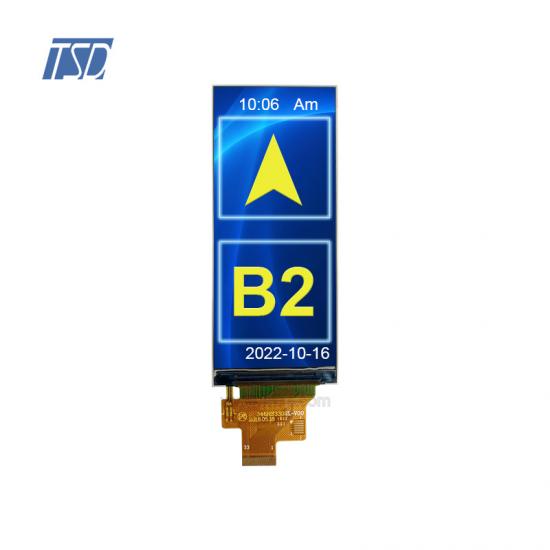

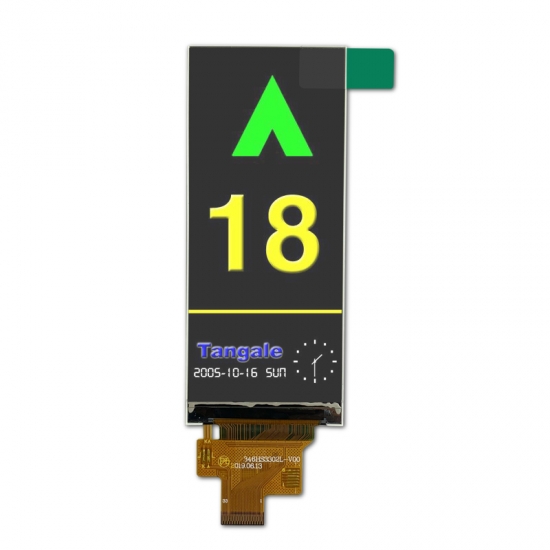

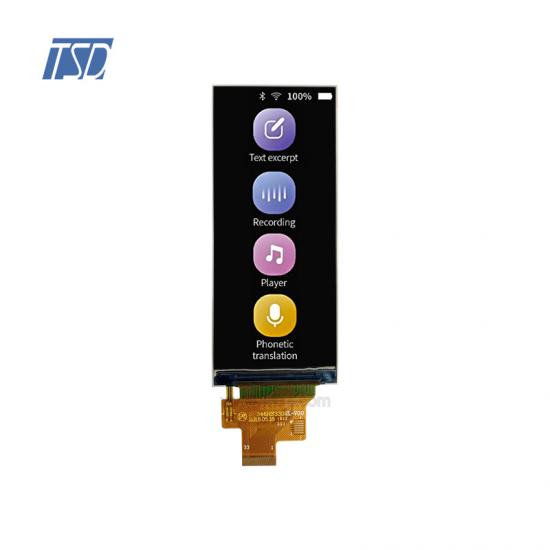

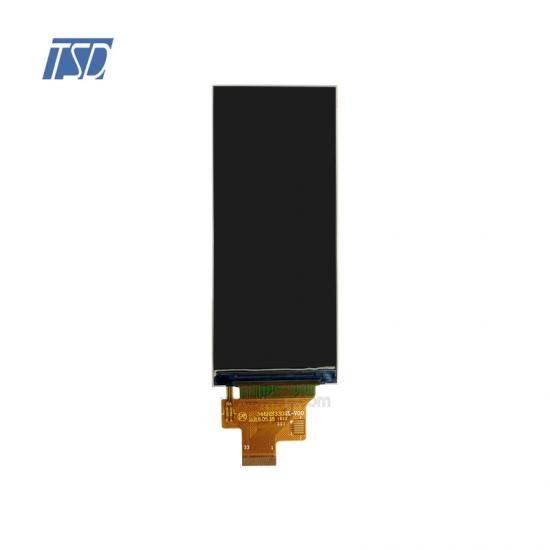

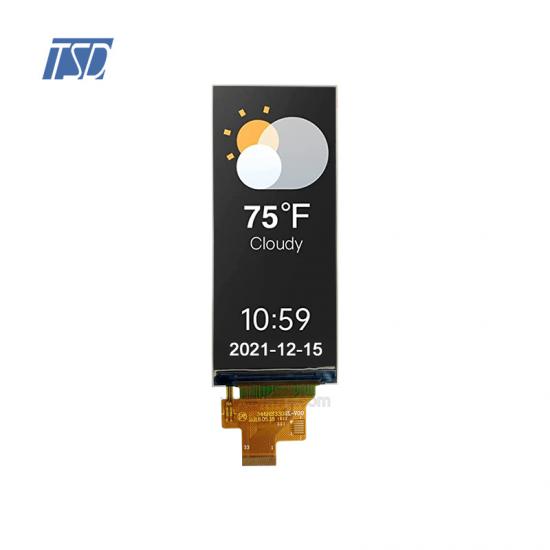

TSD 3.46 inch 340x800 resolution LCD display

  • Model Name: TST035WVBS-53
  • LCD Type: 3.46 inch TFT LCD display
  • Resolution: 340x800
  • Viewing angle: All o'clock
  • Brightness: 330 cd/m2
  • Driver IC: ST7701S
  • Interface: RGB 16 interface
  • Touch Screen: without Capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST035WVBS-53 is 3.4 inch 340x800 resolution RGB 16 bits interface LCD display module, without standard capacitive touch panel. Backlight is 330 nits, acklight current is 15mA, which could be customized. For this 3.46 inch TFT LCD module, driver IC is ST7789V, viewing direction is free, all o'clock, color depth is 262K, white backlight and transmissive mode.

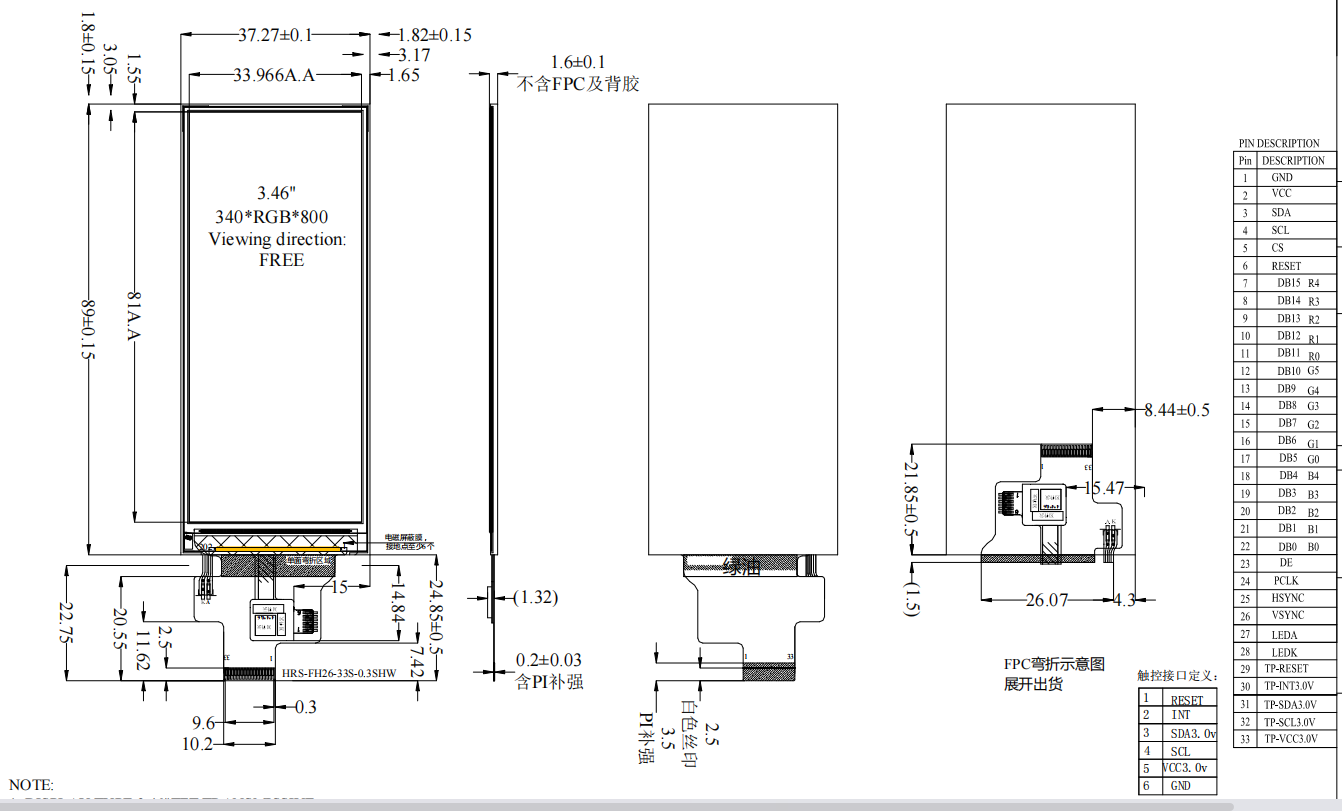

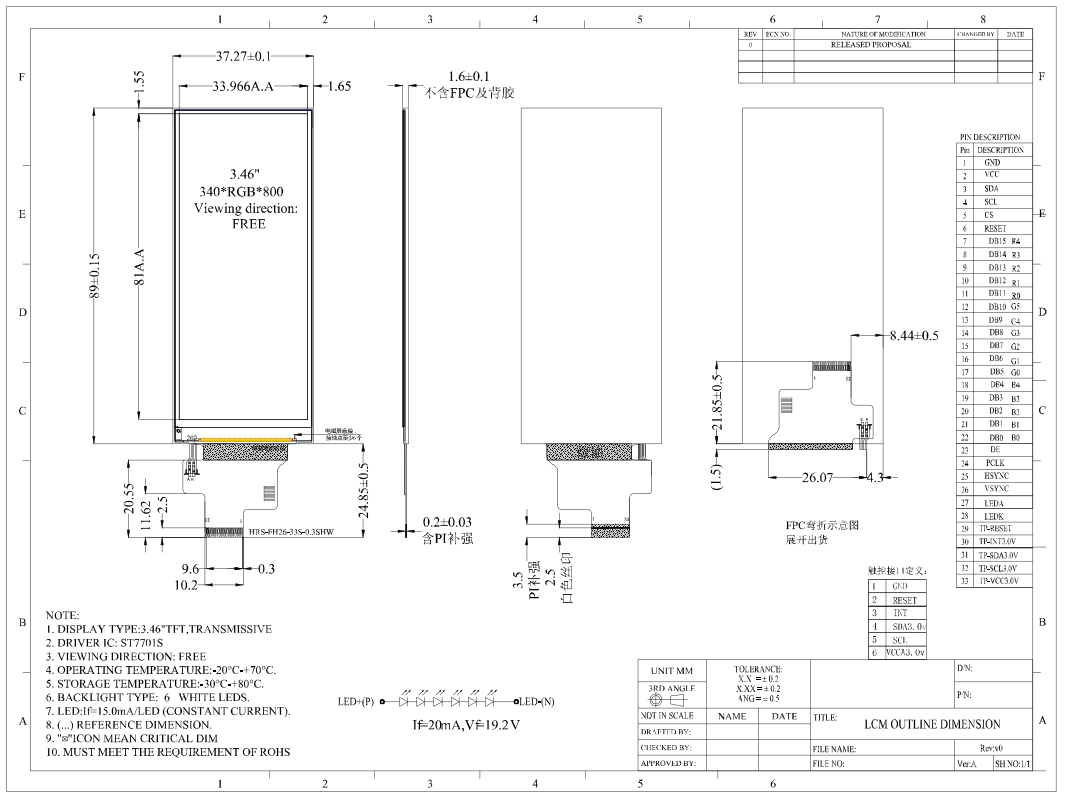

Drawing:




Specifications:



General Specification
Part No.  TST035WVBS-53
Outline Dimension(mm)

37.27x89x1.6

Active Area(mm) 33.966x81
Resolution(dots) 340x800
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 340(H)xRGBx800(V)
Touch panel  w/o CTP
Driver IC ST7701S
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 3.46 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB 16 bits
Module lifetime(Hours) 20,000-30,000





Pins Description
Pin No.  Symbol Description
1 GND Power Ground
2 VDD Power Supply for Analog, VDD=2.4V~3.3V.
3 SDA SPI interface input/output pin. The data is latched on the rising edge of the SCL signal.
4 SCL This pin is used to be serial interface clock.
5 CS Chip selection pin; Low enable, High disable.
6 RESET This signal will reset the device and it must be applied to properly initialize the chip. Signal is active low.
7-22 D15-D0 RGB data
23 DE Data enable signal for RGB interface operation.
24 PCLK Clock signal for RGB interface operation.
25 HSYNC Horizontal signal input
26 VSYNC Vertizontal signal input
27 LEDA LED Anode
28 LEDK LED Cathode
29 TP-RESET System reset of Touch Panel;If no used,let this pin open.
30 TP-INT3.0V Interrupt signal to main processor of Touch Panel;If no used,let this pin open.
31 TP-SDA3.0V I²C data signal of Touch Panel;If no used,let this pin open.
32 TP-SCL3.0V I²C clock signal of Touch Panel;If no used,let this pin open.
33 TP-VCC3.0V Analog power supply of Touch Panel. If no used,let this pin open.




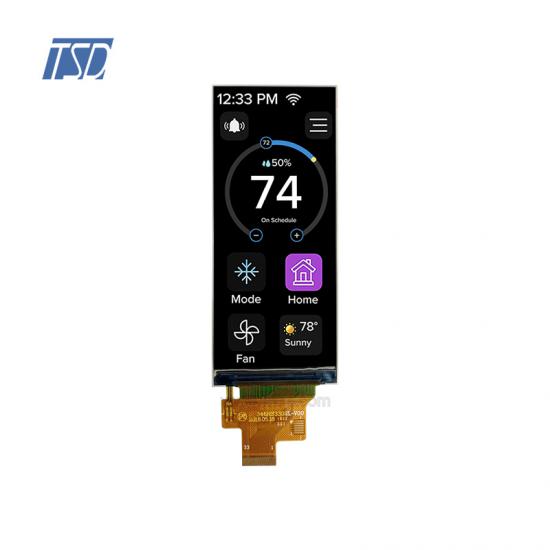

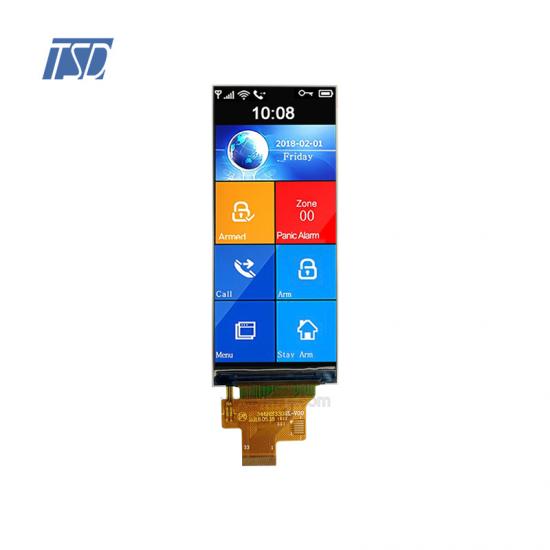

Applications:



For our 2.0 inch LCD display TST035WVBS-53, normally used in smart home product, such as smart thermostat, temperature and humidity control panel, to make it very intelligent life.




Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 3.46" contains 340x800 dots and can display up to 262k colors.
