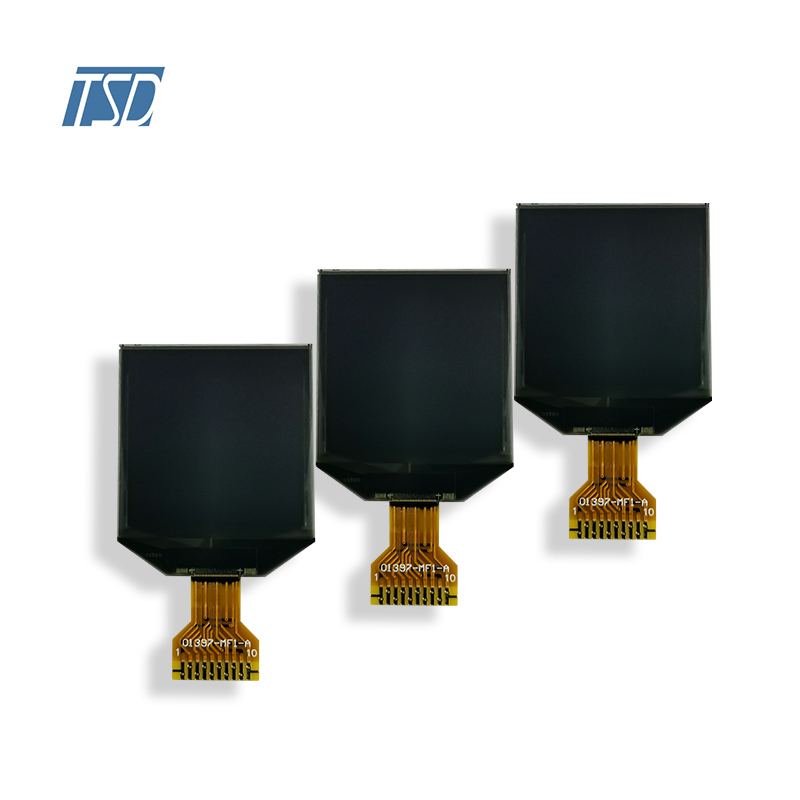

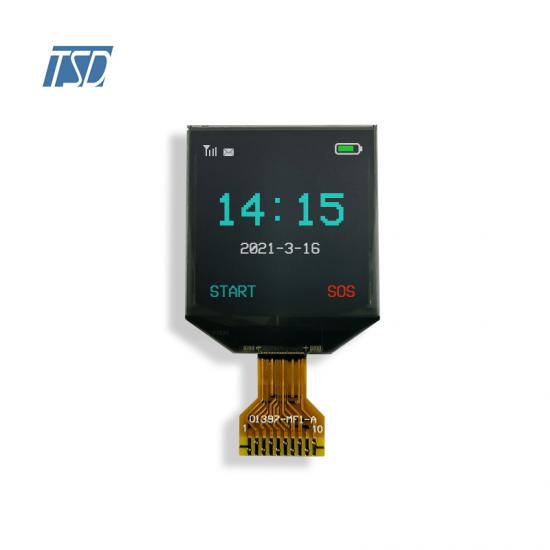

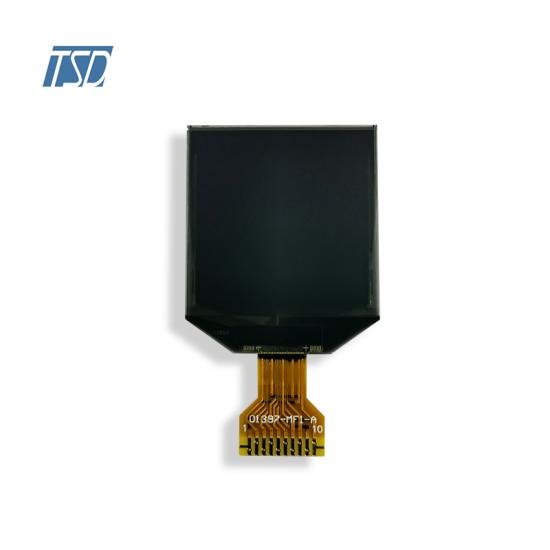

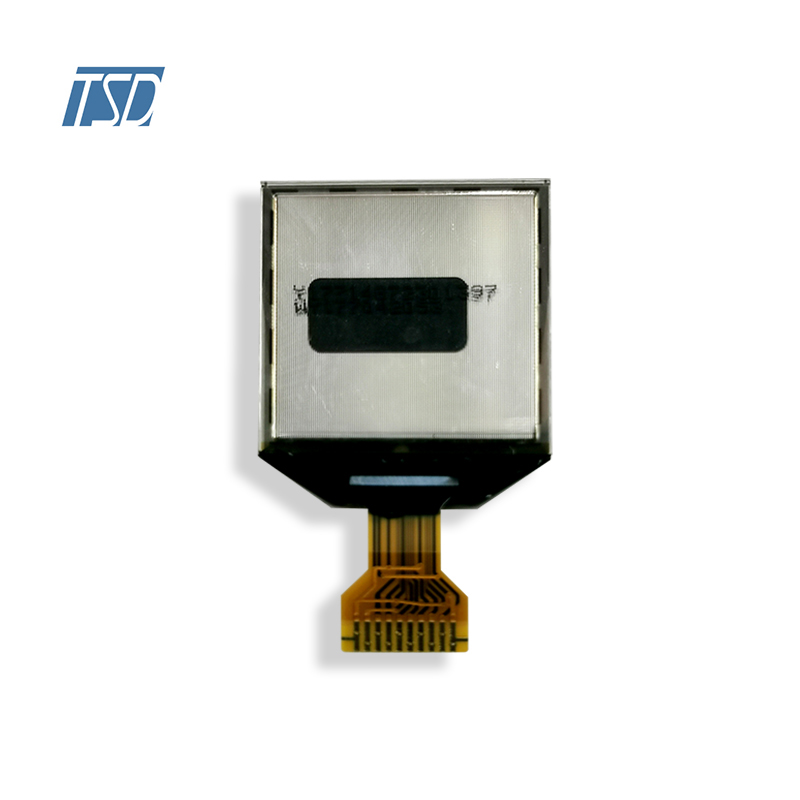

TSD 1.06 inch 128x128 dot matrix OLED display with 4-wire SPI interface

  • Model Name: TSO128128-A01
  • Type: 1.06 OLED Display
  • Color: White
  • Dot Matrix: 128x128dots
  • Driver IC: SH1107
  • Interface:  4 wire SPI
  • Dot Pitch: 0.149x0.149mm
  • Weight: 1.09g
  • Duty: 1/128
  • Operating Temperature: -40 ~ +70℃
  • Storage Temperature: -40 ~ +85℃



Description:



Team Source Display model TSO128128-A01 is a monochrome OLED display module with 128x128 dot matrix. I2C interface. high technology for low power consumption without backlight.  high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and available to add with touch screen or cover glass on top.

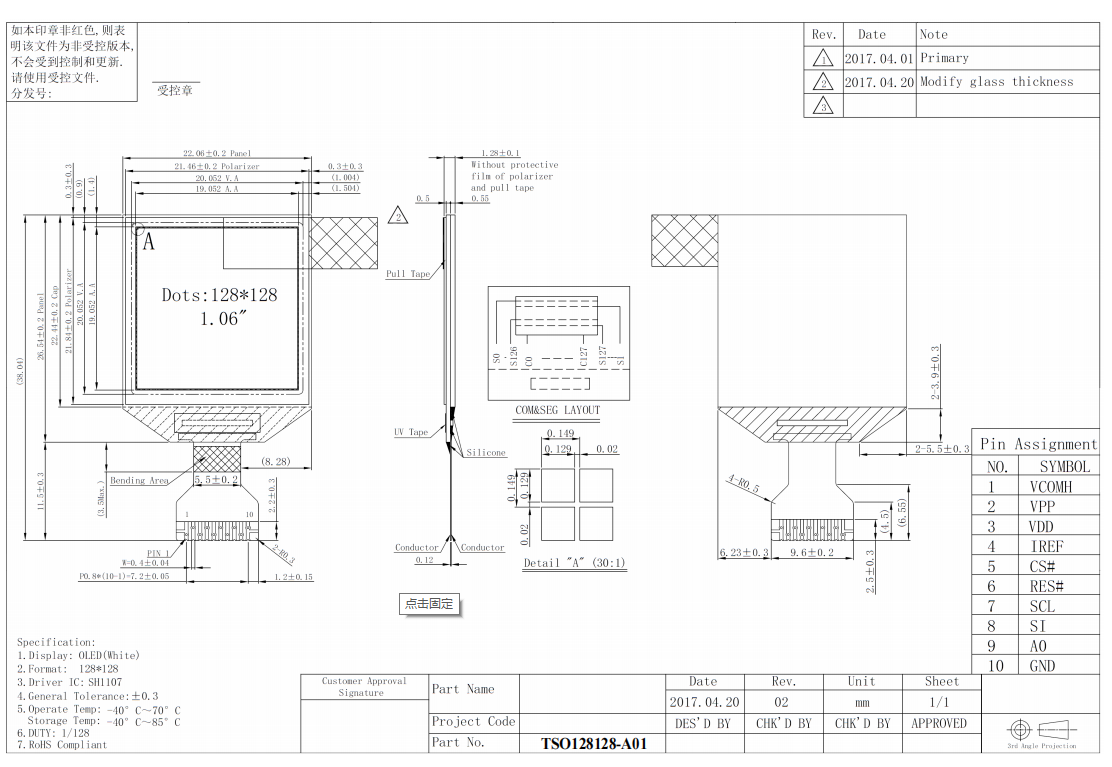

Drawing:




Specifications:



General Specification
Display mode
1.06'' Passive Matrix OLED Monochrome Display
Part No.  TSO128128-A01
Outline Dimension(mm)

22.06(W)x22.44(H)x1.28(D)

Active Area(mm) 19.056(W) x 19.052(H)
Resolution(dots) 128×128 dots
Color White
Operating temperature(°C) -40 ~ +70°C
Storage temperature(°C) -40 ~ +85°C
Operating Voltage
3.3V
Touch panel  could support with cover glass and touch screen
Driver IC SH1107
Interface  SPI
Dot size 0.129x0.129
Duty 1/128
Weight(g) 1.09g
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Module lifetime(Hours) 30,000-50000





LCM interface definition



1 VCOMH
COM signal deselcted voltage level. A capacitor should be connected between this pin and VSS. No external power supply is allowed to connect to this pin.
2 VPP Power supply for panel driving yoltage.
3 VDD Power supply pin for core logic operation.
4 IREF This pin is the segment output current reference pin. A resistor should be connected between this pin and VSS to maintain the current around 15.625uA.
5 CS# This pin is the chip select input connecting to the MCU.
6 RES#  This pin is reset signal input.
7 SCL The serial clock input pad.
8 SI The serial data input pad
9 A0 This pin is Data/Command control pin connecting to the MCU.
10 GND
Ground pin. lt must be connected to external ground.




Applications:



For this 1.06inch white OLED Display,  128x128 resolution, suitable for Industrials Equipment,

Medical devices, Household appliances, Handheld devices and Consumer products.


Product Features:



1. Wide temperature range.

2. Low power consumption.

3. High contrast ratio.
