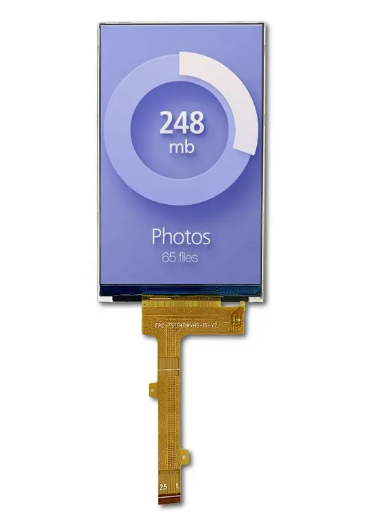

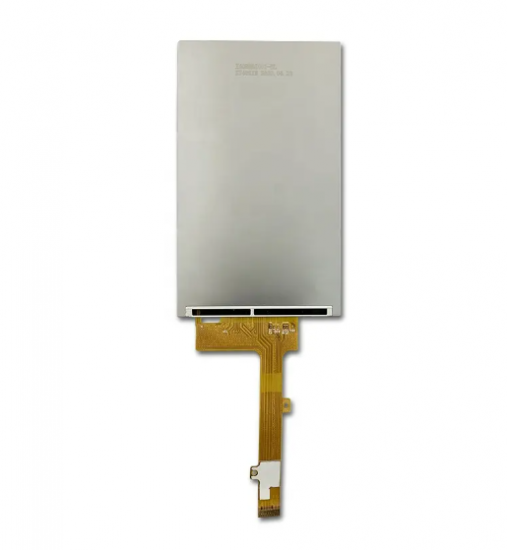

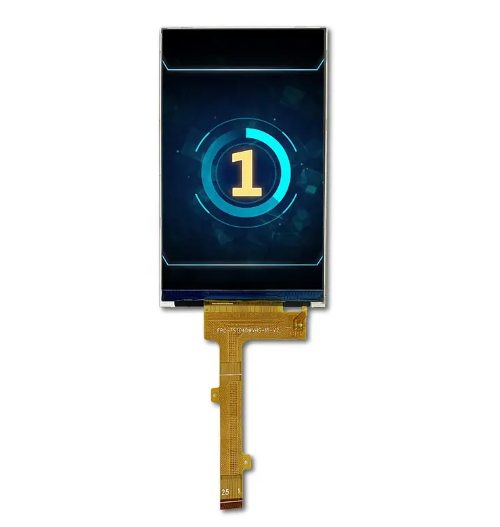

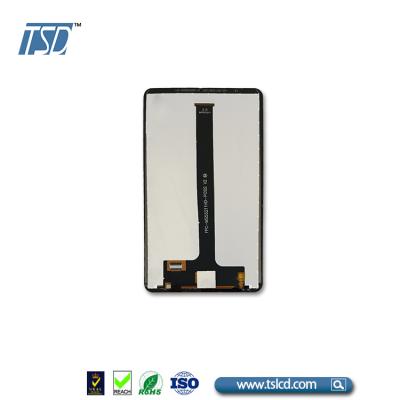

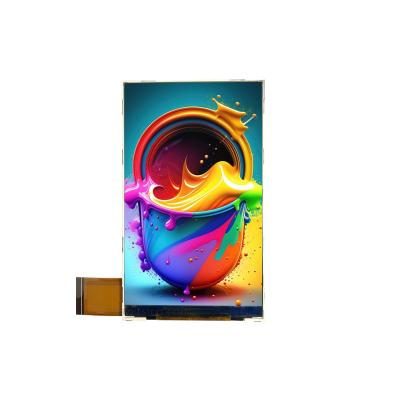

TSD 4.0 Inch TFT LCD Customization lcd panel

LCD Type:,Normally black,IPS

Resolution:480 x (RGB) × 800

View Direction: All o’clock

LCD driver IC:ST7701S

Interface types: MIPI

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:

This display module is a Transmissive,Normally black,IPS TFT liquid crystal display (LCD), This module is composed of a TFT LCD module, a driver circuit, and a back-light unit and without capacitive touch panel.The resolution of it is 480 x (RGB) × 800 and the driver ic is ST7701S

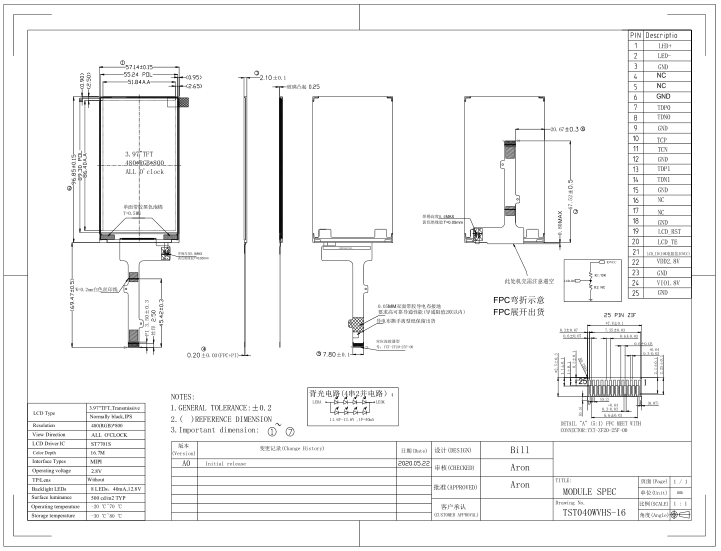

Drawing:



Specification



General Specification

Part No.

TST040WVHS-16

Display Size(Diagonal)

4.0 inch

LCD type

Transmissive,Normally black,IPS

Resolution

480 x (RGB) × 800

View Direction

ALL oclock

Module Outline

57.14(W) x 96.85(H) x 2.1(D)

Active Area

51.84 (W) x 86.4 (H

Viewing Area

ALL oclock

Backlight

8 LEDs

Interface

MIPI  interface

Driver IC

ST7701S

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-2060

Storage Temperature

-3070



Pins Description

Pin No.

Symbol

Description

1

LED+

Backlight A Aothod input pin.

2

LED-

Backlight K Cathode input pin.

3

GND

System Ground. (0V)

4

NC

No connect

NC

No connect

6

GND

System Ground. (0V)

7

TDP0

MIPI data c athode input pin

8

GND

System Ground. (0V)

9

IOVCC

Power supply1.8-2.8V

10

TCP

MIPI clock aothod input pin

11

TCN

MIPI clock c athode input pin

12

GND

System ground.

13

TDP1

MIPI data aothod input pin

14

TDN1

MIPI data c athode input pin

15

GND

System Ground. (0V)

16

NC

No connect

17

NC

No connect

18

GND

Ground

19

LCD_RST

Reset input signal

20

LCD_TE

Tearing Effect output signal

21

LCDID(10K to IOVCC)

10K resistor connect IOVCC

22

VDD2.8V

Power supply +2.8V t

23

GND

System Ground. (0V)

24

VIO1.8V

Voltage input pin for logic I/O +1.8V

25

GND

No connect



Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.





Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products

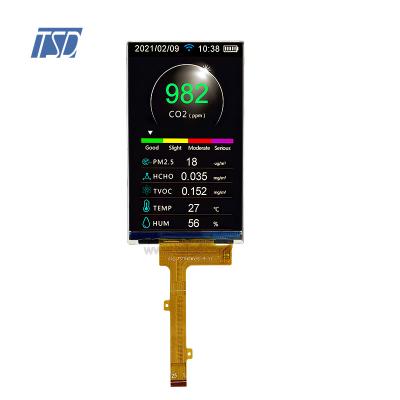

3.97 inch IPS TFT
