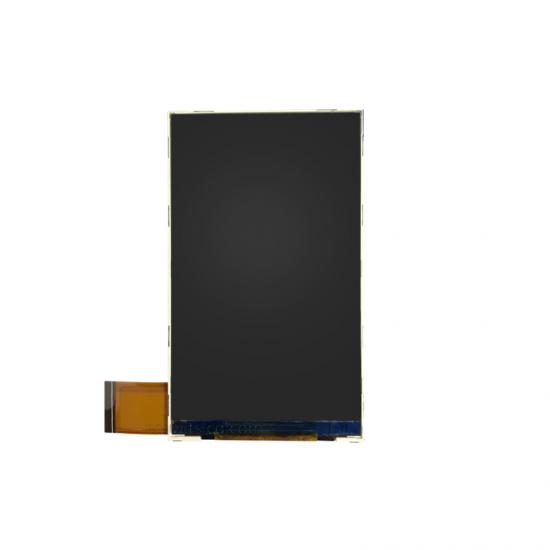

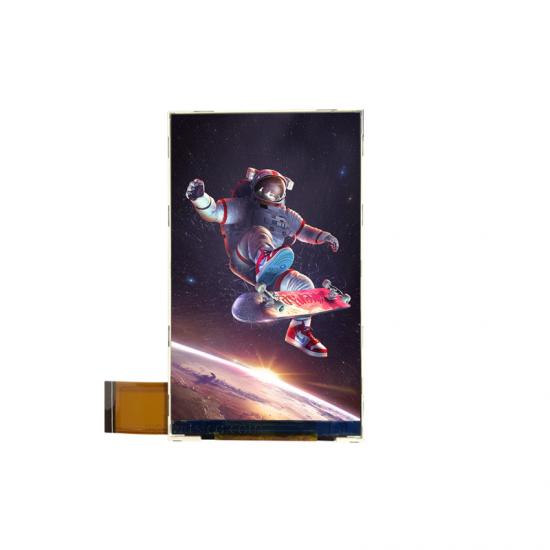

TSD 3.97 Inch TFT LCD Customization lcd panel resolution

Part number: TST397H5102

Resolution: 480*800

View Direction: All o’clock

Active area: 51.84*64.8

LCM: 57*96*2

Backlight:  LED

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:

TST397H5102 is a transmissive type color active matrix liquid crystal display which uses amorphous thin film transistor as switching devices. this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 51.84*64.8 and the native resolution is 480*800 feathers of this product are listed in the following table



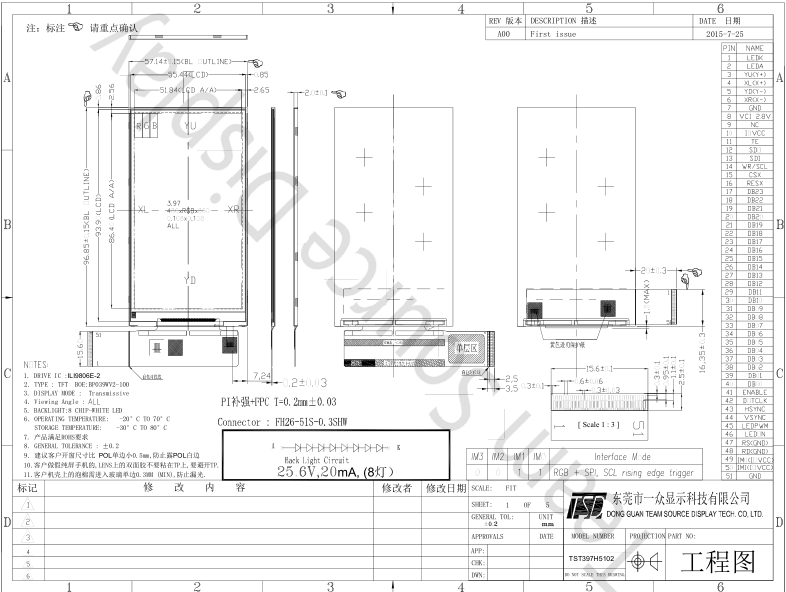

Drawing:



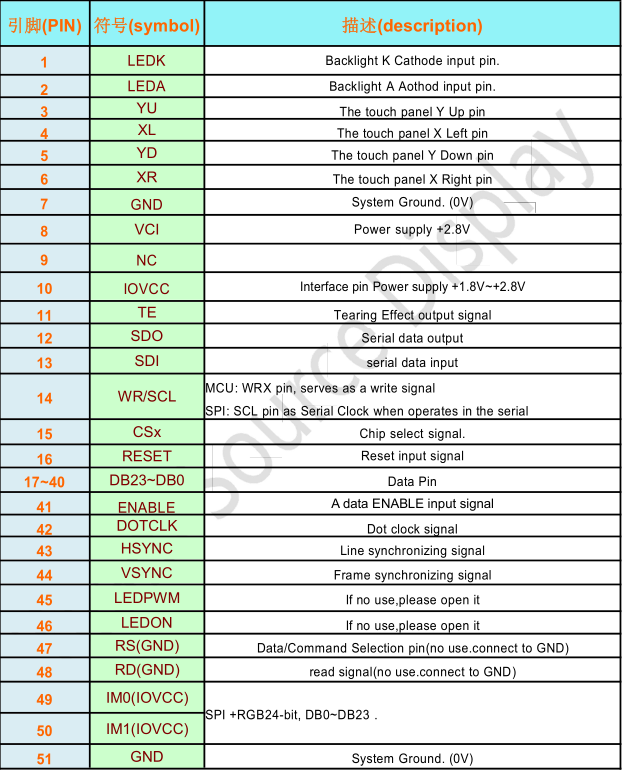

Specification



General Specification

Part No.

TST397H5102

Display Size(Diagonal)

3.97 inch

LCD type

TFT,Transflective,Normally white

Resolution

 480*800

View Direction

ALL o’clock

Module Outline

57*96*2

Active Area

51.84*64.8

Viewing Area

ALL o’clock

Backlight

8 LEDs

Driver IC

ILI9806E

Interface

RGB

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-2070

Storage Temperature

-3080





 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
