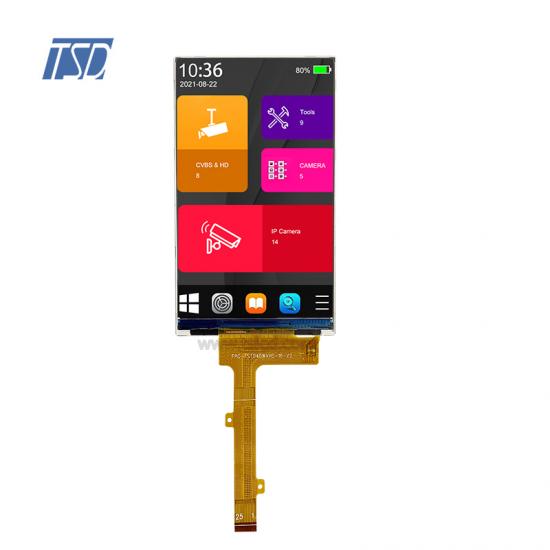

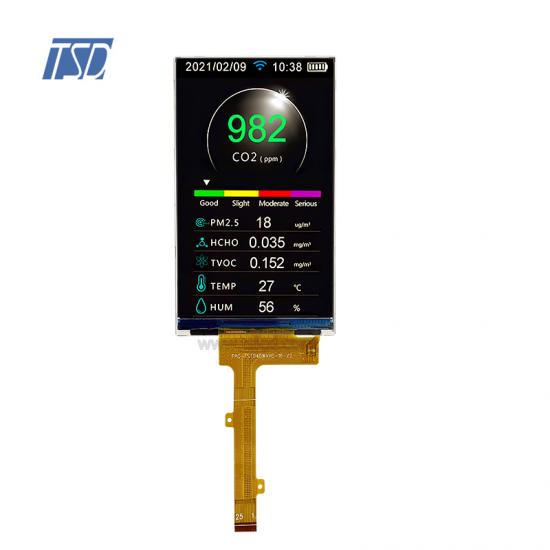

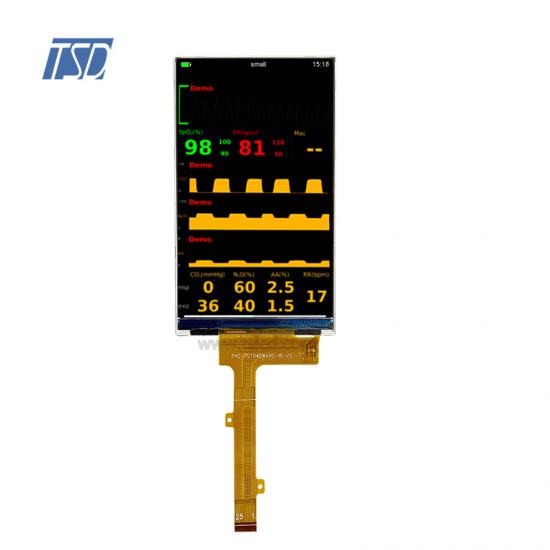

4.0 inch IPS TFT 480*800 Resolution Transmissive,Normally black,IPS -



LCD Type: TFT,Transmissive,Normally black,IPS -

LCD Size: 3.97 inch

Resolution:  (W x H) 480 x (RGB) × 800 pixel

LCM : (W × H × D ) 57.14(W) x 96.85(H) x 2.1(D) mm

Active Area:  (W × H) 51.84 (W) x 86.4 (H) mm

pixel Pitch : (W × H) 0.108 x 0.108 mm

Viewing Direction:  ALL o’clock

Pixel Arrangement: RGB-stripe

Backlight Type: 8 LEDs

Surface Luminance: 500 cd/m2

Driver IC: ST7701S

Interface Type: MIPI

Input Voltage: 2.8 V

With/Without TP: without

Weight: TBD

Description:

TST040WVHS-16 is a color active matrix TFT-LCD Panel using amorphous silicon TFT's as an active switching devices. this model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 51.84 (W) x 86.4 (H) inch diagonally measured active area with Z6 resolutions.Each pixel is divided into Red, Green, Blue donts which are arranged in 2 domain stripe and this panel can display 16.7M colors

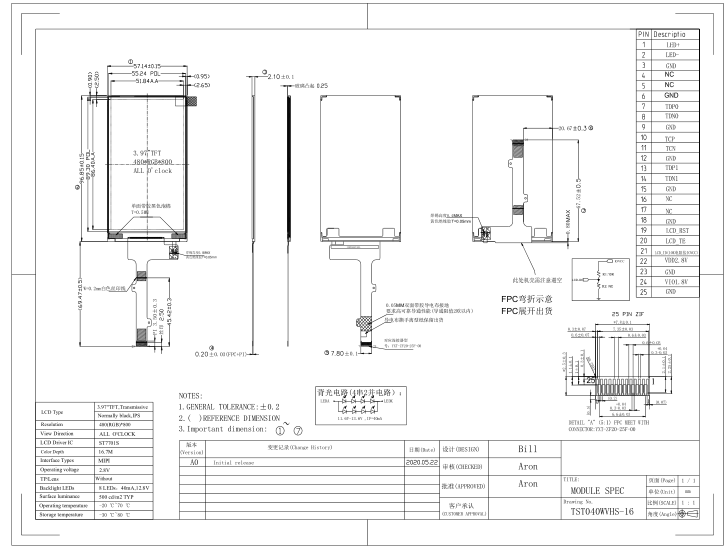

Drawing:



Specifications:





General Specification

Part No.

TST040WVHS-16

Outline Dimension(mm)

57.14(W) x 96.85(H) x 2.1(D)

Active Area(mm)

51.84 (W) x 86.4 (H)

Resolution(dots)

480 x (RGB) × 800

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Brightness

500cd/m2

Touch panel

No

Display mode

Normal black, IPS

Surface treatment

Antiglare

View direction

All o'clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Interface

MIPI

Weight

TBD





Pins Description

Pin No.

Symbol

Description

1

LED+

Backlight A Aothod input pin.

2

LED-

Backlight K Cathode input pin.

3

GND

System Ground. (0V)

4

NC

No connect

5

NC

No connect

6

GND

System Ground. (0V)

7

TDP0

MIPI data aothod input pin

8

TDN0

MIPI data c athode input pin

9

GND

System Ground. (0V)

10

TCP

MIPI clock aothod input pin

11

TCN

MIPI clock c athode input pin

12

GND

System Ground. (0V)

13

TDP1

MIPI data aothod input pin

14

TDN1

MIPI data c athode input pin

15

GND

System Ground. (0V)

16

NC

No connect

17

NC

No connect

18

GND

System Ground. (0V)

19

LCD_RST

Reset input signal

20

LCD_TE

Tearing Effect output signal

21

LCDID(10K to IOVCC)

10K resistor connect IOVCC

22

VDD2.8V

Power supply +2.8V t

23

GND

System Ground. (0V)

24

VIO1.8V

Voltage input pin for logic I/O +1.8V

25

GND

No connect

Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
3.97 inch IPS TFT
480x800 resolution 3.97 inch IPS color LCD display with SPI and RGB interface
480x800 resolution 3.97 inch  IPS color LCD display with SPI and RGB interface
3.97 inch IPS TFT
New and stable 3.97 inch 480x800 resolution IPS color display with MIPI interface
New and stable 3.97 inch 480x800 resolution IPS color display with MIPI interface
TST040WVHS-16
TSD 4.0 Inch TFT LCD Customization lcd panel
LCD Type:,Normally black,IPS Resolution:480 x (RGB) × 800 View Direction: All o’clock LCD driver IC:ST7701S Interface types: MIPI Weight: TBD Operating temperature: -20℃~70℃ Storage temperature: -30℃~80℃
TST397H5102
TSD 3.97 Inch TFT LCD Customization lcd panel resolution
Part number: TST397H5102 Resolution: 480*800 View Direction: All o’clock Active area: 51.84*64.8 LCM: 57*96*2 Backlight:  LED   Weight: TBD Operating temperature: -20℃~70℃ Storage temperature: -30℃~80℃

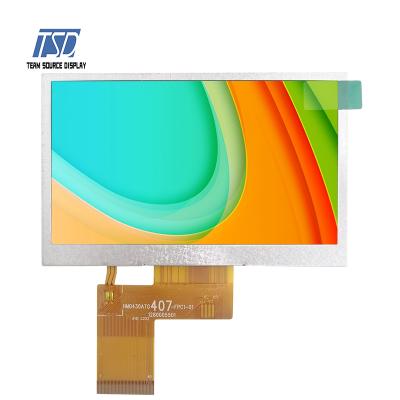

5 inch lcd IPS screen
