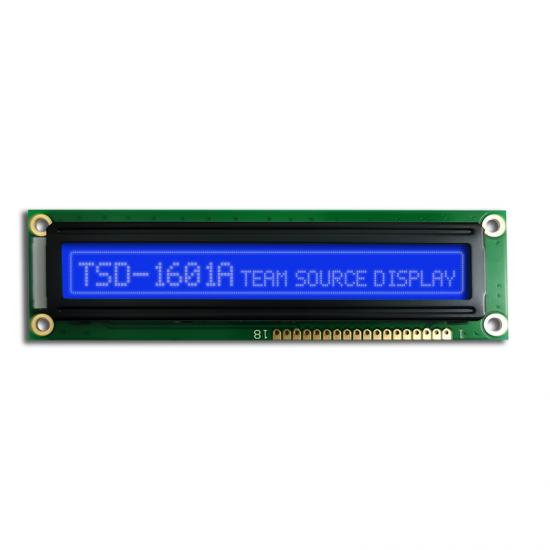

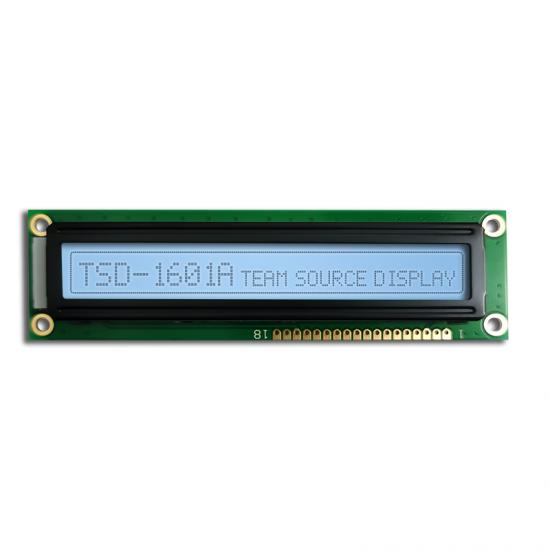

TSD 1601 DOTS COB FSTN LCD with backlight



  • Model Name:TSM1601A-01GC
  • LCD Type: 16*1 dots lcd
  • Resolution: 16*1
  • Viewing angle: 6H
  • Driver IC: ST7066-0B
  • Voltage:5V
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

  Description:

The TSM1601A-01GC is a 16*1 dots dot-matrix LCD module. It has a STN panel composed of 16 segments and 1 commons. The LCM can be easily accessed by microcontroller via SPI/8080 MPU interface. We have FSTN.STN-YG,STN-blue, Positive/negative, Transflective/transmissive.Can customize the parameters according to your requirements such as polarizer type. lcd mode. connection way. operating Voltage.etc.



Display Character

16 character x 1 lines

Display background color

FSTN White/ Back character

Polarize mode

Positive  negative, Transflective

Outline Size(mm)

122*33*12.5

Active Area(mm)

99*13.5

Viewing Angle

6 O'clock

Diver IC

ST7066-0B

Character font

5x8 dots + cursor

Dots size(mm)

0.56x0.61

Character Size(mm)

2.96x5.16

Character pitch(mm)

3.5x5.6

Power

5V

Character Generator RAM

TBD64X8 bits

Display Data RAM

40X8 bits

Character Generator ROM

8320 bits

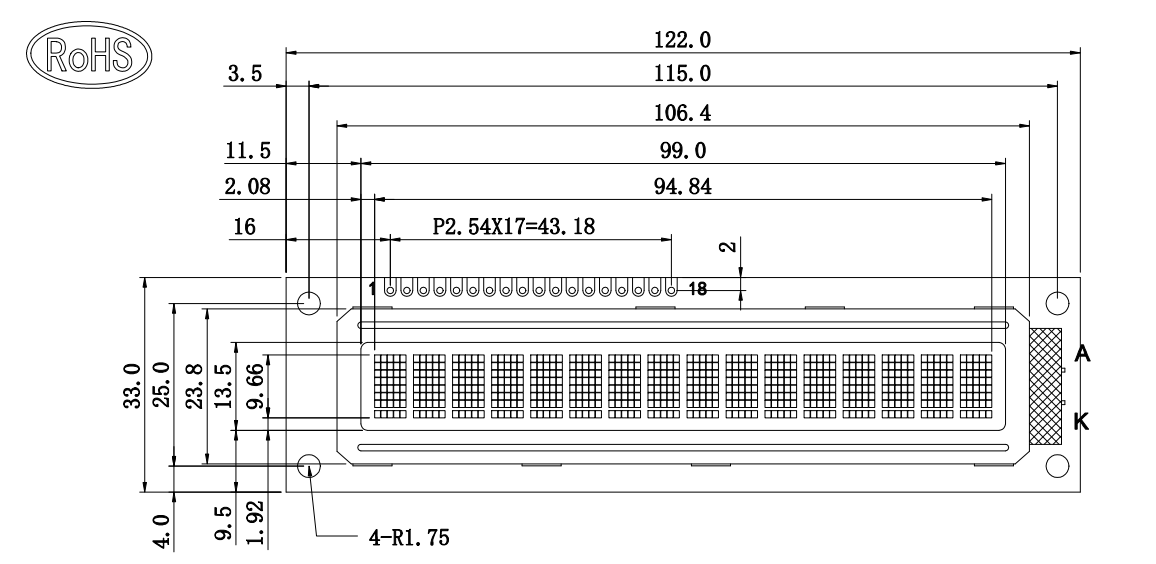

Drawing:

Interface Description:

PIN SYMBOL
1 VSS
2 VDD
3 V0
4 RS
5 RW
6 E
7 DB0
8 DB1
9 DB2
10 DB3
11 DB4
12 DB5
13 DB6
14 DB7
15 LEDA
16 LED-KR
17 LED-KG
18 LED-KB

Applications:

For our 16*1 dots character lcd TSM1601A-01GC , it's widely using in industrial product, Industrial equipment and Industrial controllers, mechanical displays.etc.

Product Features:

1.16*1 dots lcd with 18pins

2. 5V working Voltage.

3.ST7066U-0B IC chip

4.font table support English/European/Japanses/Russian

5. TSD have full ranges of mono lcd including COB COG OLED.E-ink display. customized design are warmly welcome.

Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
4.3 inch IPS TFT
TSD 480x272 4.3 inch tft lcd display with RTP
Model Name: TST043WQHS-67BP LCD Type: 4.3 inch TFT LCD display Resolution: 480x272 Viewing angle: All o'clock Brightness: 1000 cd/m2 Driver IC: SC7283 Interface: RGB 24 bits Touch Screen: with resistive touch panel Operating Temperature: -30 ~ +80℃ Storage Temperature: -30 ~ +80℃
8” color TFT LCD with 6 o'clock viewing angle
8 inch color TFT LCD panel 1024x600 resolution with digital interface
8 inch color TFT LCD panel 1024x600 resolution with digital interface 6 o'clock viewing angle

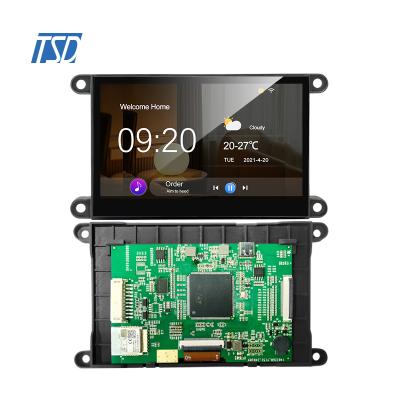

7 Inch smart module display
TSDHD Intelligence display 7 Inch 1024x600 resolution tft lcd touch screen modules Gen4-STM32H7R-70CT-01 with STM32 controller
  Model Name: Gen4-STM32-70CT-01 LCD Type: 7 inch smart module display Resolution: 1024x600 Viewing angle: All o'clock Surface luminance: 650 cd/m2 Controller: STM32H7R7x  User Interface: UART/RS232/RS485,40pin GPIO Touch Screen: with CTP  Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃
15 inch IPS TFT
TSD 1024×768 resolution high brightness 15 inch IPS tft automotive grade lcd module with LVDS interface
Model Name: TST150SVLH-I03 LCD Type: 15 inch TFT LCD display Resolution: 1024*768 Viewing angle: IPS all viewing angle Brightness: 800 cd/m2 Interface: LVDS Touch Screen: without Operating Temperature: -30 ~ +80℃ Storage Temperature: -40 ~ +80℃

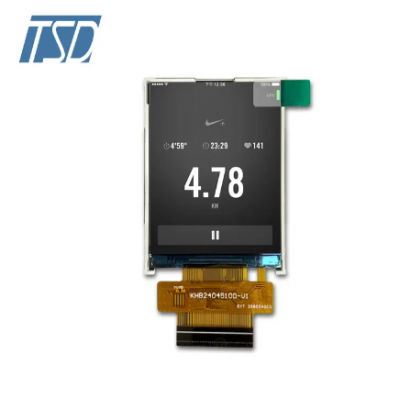

2.8 inch 240x320 TFT
Good price High quality 2.8" TFT 240x320 LCD display module
2.8inch 240x320Res resistance touch panel
3.5 inch IPS TFT
TSD 3.5 inch IPS lcd display HVGA 320x480 RGB LCD display module
Model Name: TST035HVHI-48P LCD Type: 3.5 inch TFT LCD display Resolution: 320x480 Viewing angle: All o'clock Brightness: 300 cd/m2 Driver IC: ILI9488 Interface: RGB 18 bits interface Touch Screen: with resitive touch panel Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃
TSO12864-A04
TSD oled 128*64 dots SH1107 Driver IC 4-wire SPI,I²C Interface
Display Color: White Dot Matrix:128×64 Driver IC: SH1107 Interface: 4-wire SPI,I²C Wide range of operating temperature: -40℃ to 70℃

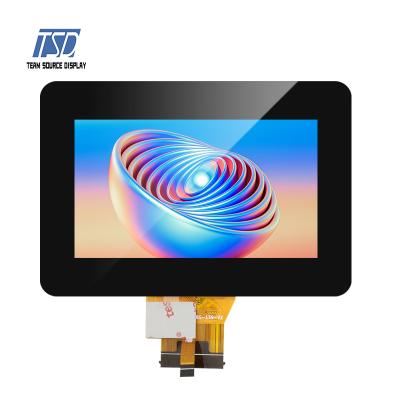

TST043WQBS-145
