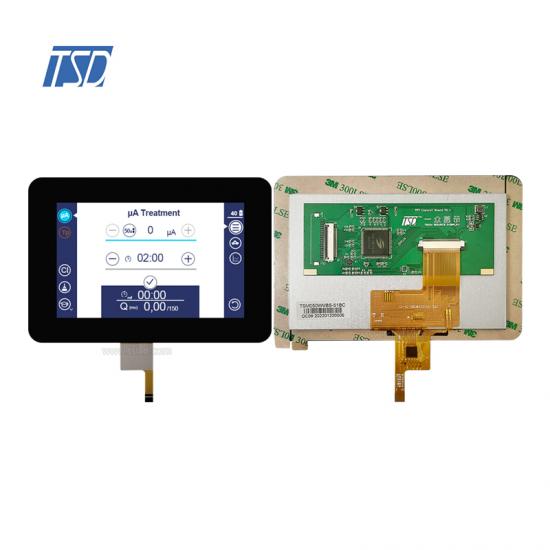

TSD 800×480 resolution 5 inch TFT LCD touch screen with MCU interface

  • Model Name: TSM050WVBS-51BC
  • LCD Type: 5 inch IPS TFT display
  • Resolution: 800x480
  • Viewing angle: All o'clock
  • Brightness: 800 cd/m2
  • Driver IC: SSD1963
  • Interface: MCU
  • Touch Screen: with Capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST050WVBS-51BC is a TFT LCD display model with Solomon SSD1963 driver IC. Display size is 5 inch, resolution is 800x480, this model is IPS display with full viewing angle, and it's high brightness model with 1000 nits, after adding the capacitive touch, it's around 800 nits, which is very suitable for outdoor applications. Except for this standard PCAP design, TSD could also make the customization basing on customer's needs.

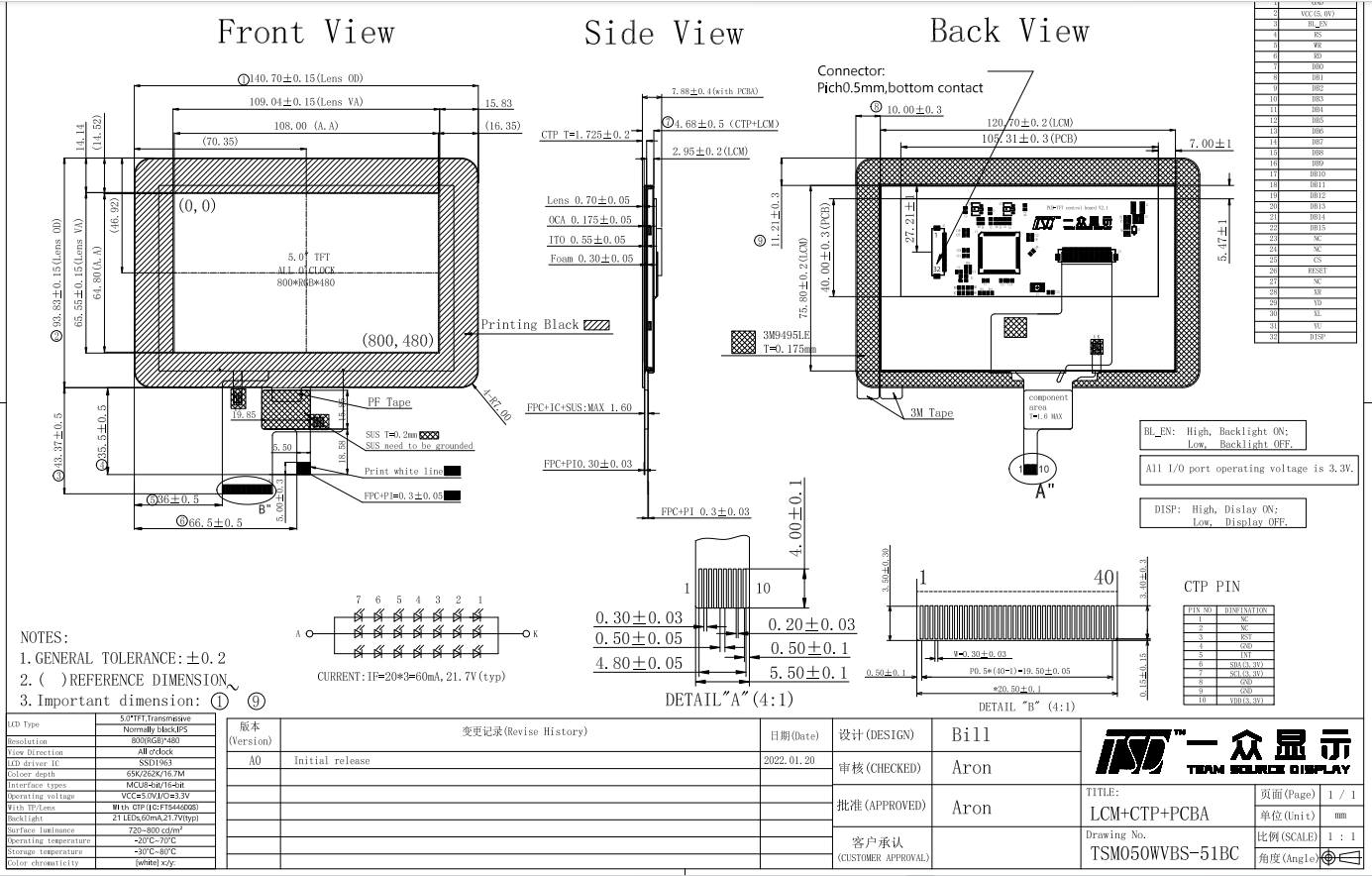

Drawing:




Specifications:



General Specification
Part No.  TSM050WVBS-51BC
Outline Dimension(mm)

140.7(W)x93.83(H)x7.88(D)

Active Area(mm) 108(W) x 64.8(H)
Resolution(dots) 800x (RGB) × 480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 800RGB(H)xRGBx480V)
Touch panel  with Capacitive touch panel
Driver IC SSD1963
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 5 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MCU
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 Ground System Ground.(OV)
2 VCC (5V) Power supply +5.5V
3 BL_EN High, Backlight ON; Low, Backlight OFF
4 RS Data/Command Selection pin
5 WR Write signal
6 RD Read signal
7~22 DB0~DB15 MCU16-bit Data Bus
23 NC Not connection
24 NC Not connection
25 CS Chip select signal
26 RESET Reset input signal
27 NC Not connection
28 XR The touch panel × right
29 YD The touch panel Y down
30 XL The touch panel X left
31 YU The touch panel Y up
32 DISP

Standby mode control.(Normally pull high)

DISP="L", enter standby mode for power saving. Timingcontroller and source driver will turn off, all outputs are Hi-Z.DISP=H", normal operation.





CTP interface Description  (CN2)
Pin No.  Symbol Description
1 NC No connection
2 NC No connection
3 RST External Reset, Low is active
4 GND Ground
5 INT Interrupt request to the host
6 SDA I2C data input and output
7 SCL I2C clock input
8 GND Ground
9 GND Ground
10 VDD Power supply +3.3V




Applications:



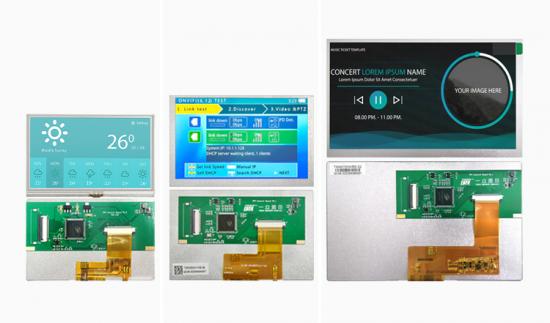

TSD is offering wide ranges of TFT LCD display with SSD1963 control board, we have the standard sizes of 4.3 inch, 5 inch and 7 inch, without touch, with resistive touch screen, with capacitve touch screen, are all available. The LCDs are widely using in Smart home & White goods, Medical devices, Automotive Dashboard, Industrial equipment, EV Chargers, Handheld & Wearable devices and many other fields.
