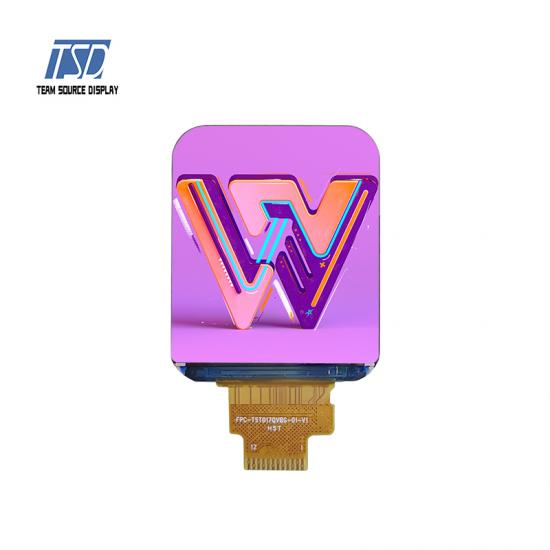

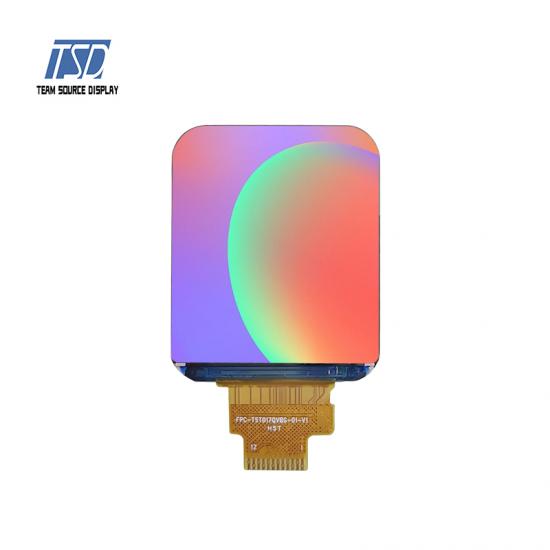

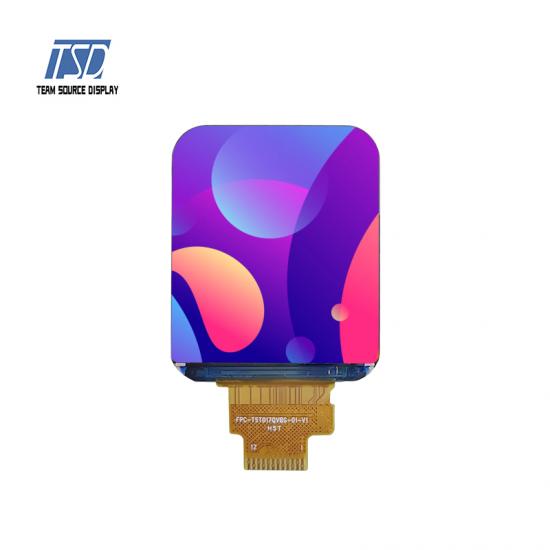

TSD Custom 1.69 Inch TFT Touch Screen TST017QVBG-01

Model Name: TST017QVBG-01

LCD Type: 1.69"TFT,Transmissive

Resolution: 240(RGB)*280

Viewing angle:  All O'CLOCK

Brightness: 730 cd/m 2

Driver IC: ST7789V

Interface: 4 SPI

Touch Screen:Without

Operating Temperature: -20 ℃~70 ℃

Storage Temperature:-30 ℃~80 ℃

Description:



TST017QVBG-01 is a transmission type color active matrix liquid crystal display (LCD), using amorphous thin film transistor (TFT) as a switching device. This product is composed of TFTLCD panel, driver IC, FPC, PCB board, backlight and capacitive touch screen. The active display area is a 27.97*32.63 measurement on the diagonal, with an active resolution of 240*280 This 1.69 inch LCD can be used to display pictures and text, and it's with standard Capacitive touch screen.

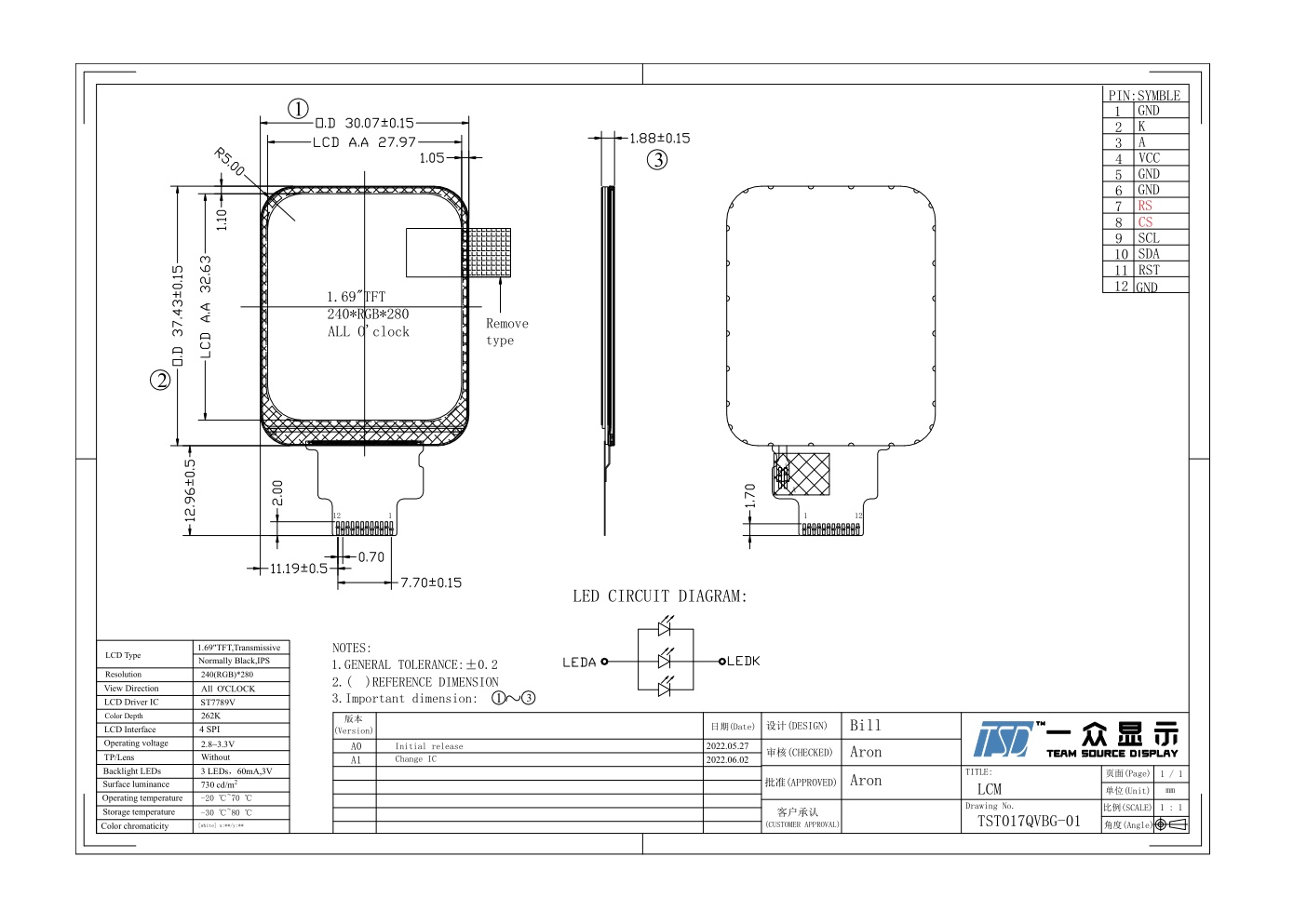

Drawing:



Specifications:



General Specification

Part No.

TST017QVBG-01

Outline Dimension(mm)

30.07(W) x 37.43(H) x1.88(D)

Active Area(mm)

27.97 (W) x 32.63 (H)

Resolution(dots)

240 x (RGB) × 280

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Pixel(pixels)

0.03885(H)x0.11655(V)

Touch panel

CTP

Driver IC

ST7789V3

Pixel arrangement

RGB-stripe

Display mode

TFT,Transmissive,Normally black,IPS

Surface treatment

-

View direction

all o’clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Interface

SPI

Module lifetime(Hours)

50,000-100,000



PIN Define

1

GND

System Ground. (0V)

2

K

Backlight K Cathode input pin

3

A

Backlight A Aothod input pin.

4

VCC

Power supply +2.8V

5

GND

System Ground. (0V)

6

GND

System Ground. (0V)

7

RS

Command/data setting signal

8

CS

Chip select signal.

9

SCL

Serial clock signal

10

SDA

serial data input/output signal

11

RST

Reset input signal





Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.

Security Products: elevator controller, electronic indicator.
