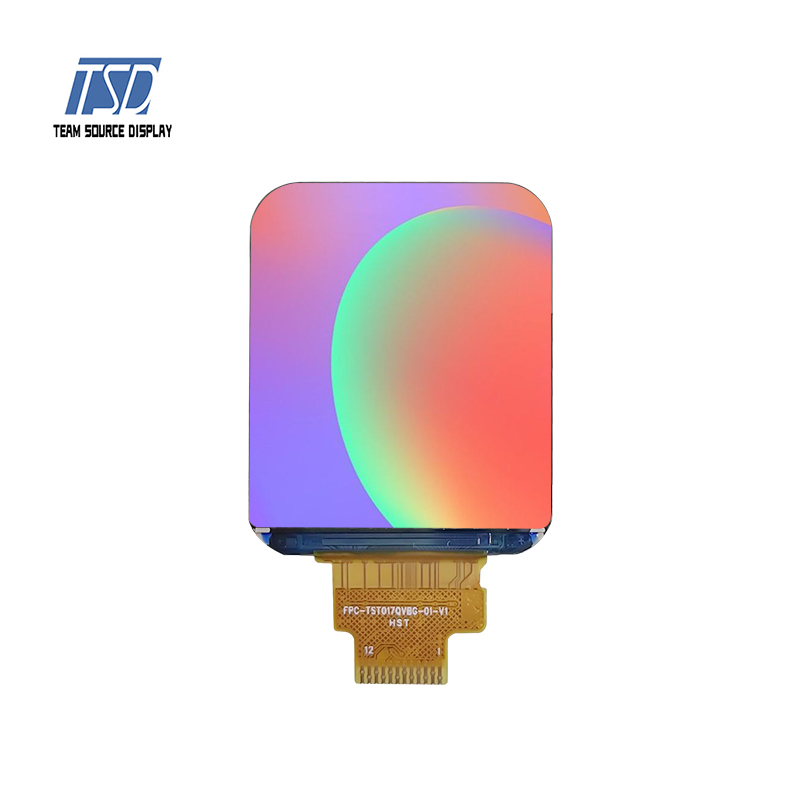

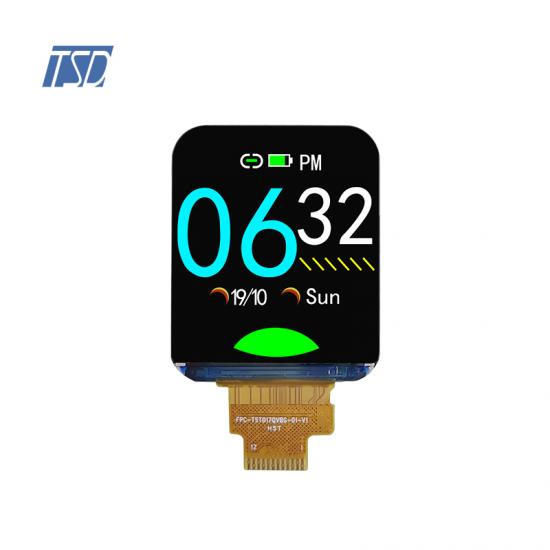

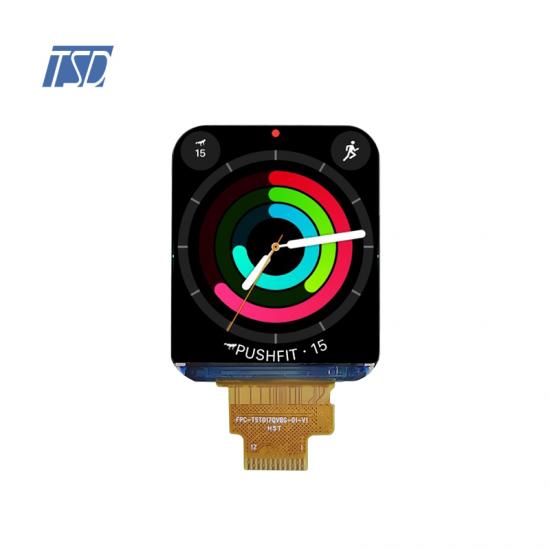

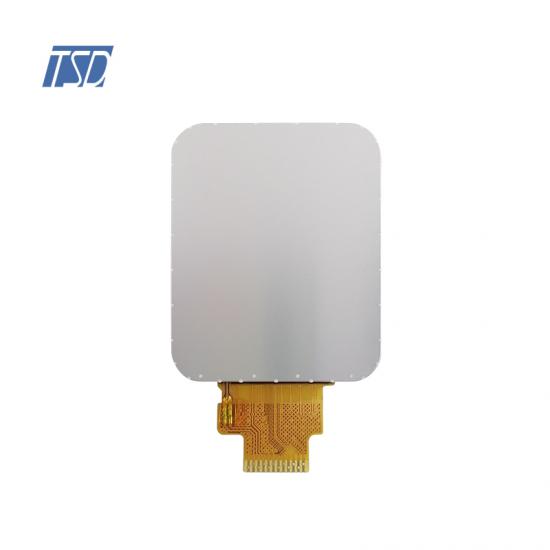

Description:
TST017QVBG-01 is a 1.69 inch square tft lcd module in 240x280 resolution, it is SPI in 12 pins, and could be customed for other pinmap. Brightness is 730 nits. Backlight current is 60mA and backlight voltage is 3.0V, with 3 backlight LEDs. This 1.69 inch TFT LCD module is designed with ST7789, viewing direction is all o'clock, color depth is 65K, white backlight and transmissive type. Contrast ratio is 1000:1. This model could be customizable for FPC, interface, touch panel, backlight and driver board etc.

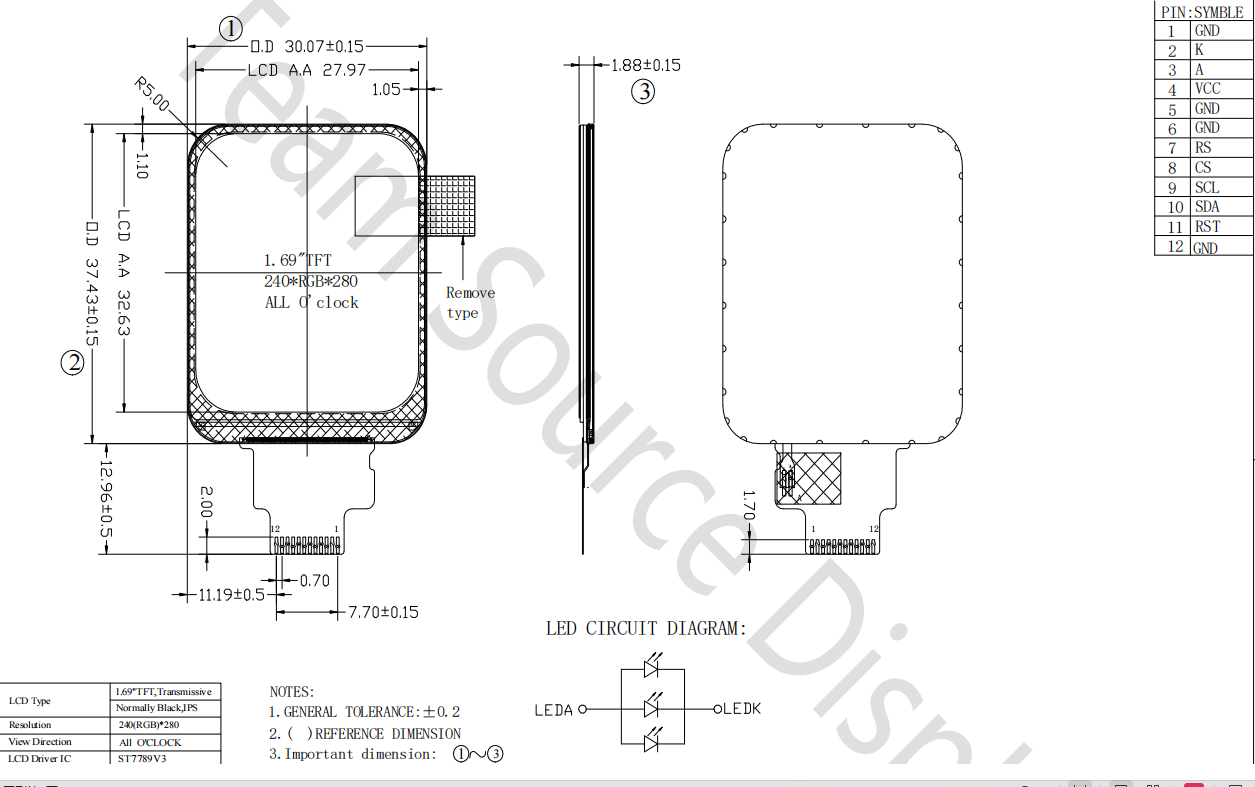

Drawing:
Specifications:
| General Specification | ||
| Part No. | TST017QVBG-01 | |
| Outline Dimension(mm) |
30.07x37.43x1.88 |
|
| Active Area(mm) | 27.97x32.63 | |
| Resolution(dots) | 240x280 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 240(H)xRGBx280(V) | |
| Touch panel | w/o CTP | |
| Driver IC | ST7789 | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normally black, IPS, 1.69 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | SPI | |
| Module lifetime(Hours) | 30,000-40,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | GND | Sytem Ground. (0V) |
| 2 | K | Backlight K Cathode input pin. |
| 3 | A | Backlight A Aothod input pin. |
| 4 | VCC | Power supply +2.8V |
| 5 | GND | Sytem Ground. (0V) |
| 6 | GND | Sytem Ground. (0V) |
| 7 | RS | Command/data setting signal |
| 8 | CS | Chip select signal |
| 9 | SCL | Serial clock signal |
| 10 | IOVCC | Serial data input/output signal |
| 11 | RST | Reset input signal |
| 12 | GND | System Gournd. (0V) |
Applications:
This 1.69 inch lcd display is suitable for thermostat control display, smart watch, temperature measurement device.
Product Features:
TST017QVBG-01 is a standard TFT display module, This model is1.69 inch diagonally resolution in 240 horizontal by 280 vertical pixel array). Each pixel is divided into Red, Green, Blue dots, and this panel can display 262K colors. Regarding backlight, brightness is 730 nit and 3 LED lights, current is 60mA and voltage 3.0V. Contrast ratio is 1000:1.
