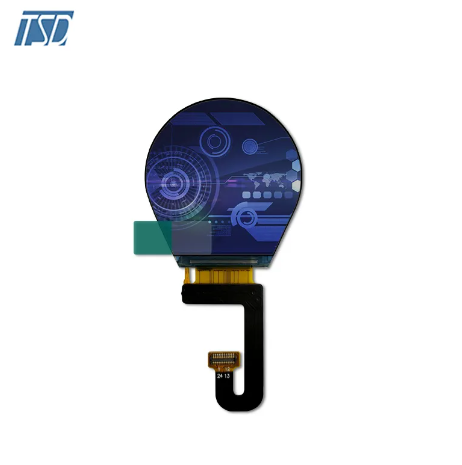

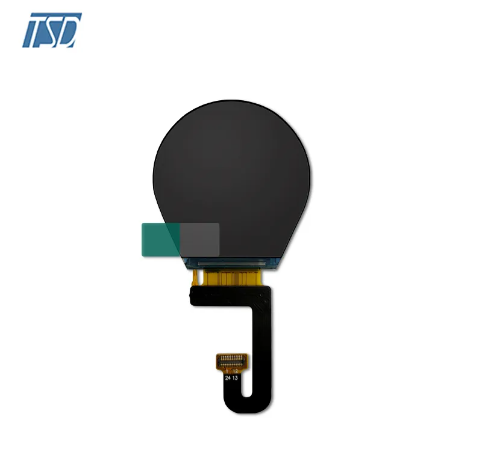

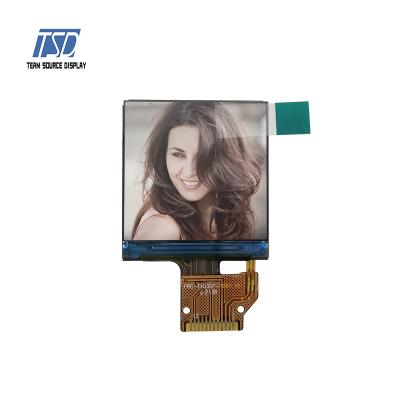

TSD round 1.3 inch with 240*240 Resolution and ST7789V Driver IC

Part number:TST013A2402HS

Resolution: 240*240

View Direction: All o’clock

Active area: 32.34*32.34

LCM: 35.5*38.23*1.4

Backlight:  LED

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:



TSD module TST013A2402HS is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 240x240 pixels and can display up to 262K colors. This product accords with RoHS environmental criterion.

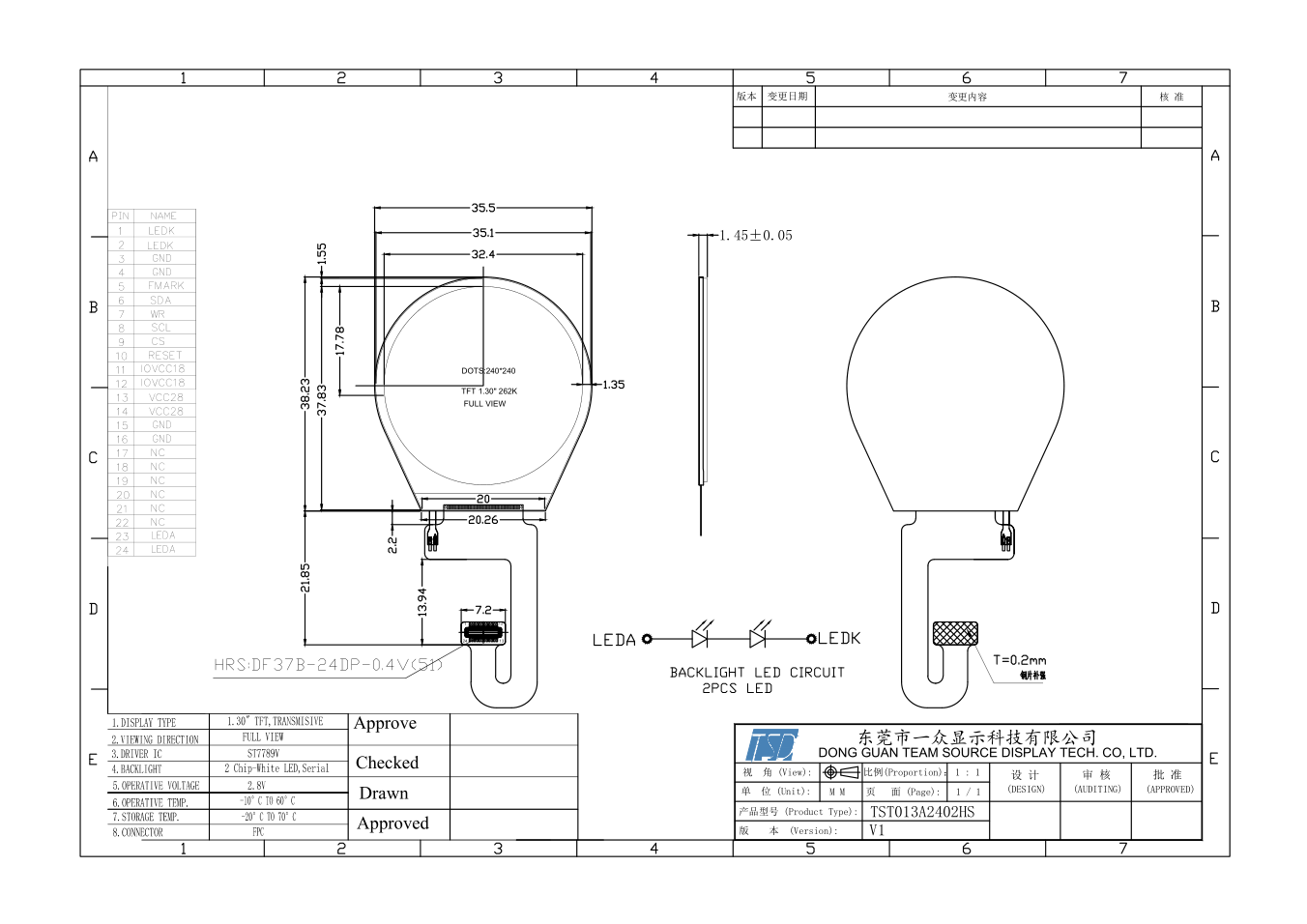

Drawing:

Specification



General Specification

Part No.

TST013A2402H

Display Size(Diagonal)

1.3 inch

LCD type

TFT,Transflective,Normally white

Resolution

240*240

View Direction

FULL VIEW

Module Outline

35.5*38.23*1.4

Active Area

32.34*32.34

Backlight

LED

Driver IC

ST7789V

Interface

System Serial interface

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-2070

Storage Temperature

-3080



Pins Description

Pin No.

Symbol

Description

1

LEDK

Back light power supply negative

2

LEDK

Back light power supply negative

3

GND

Ground

4

GND

Ground

5

FMARK

Tearing effect signal is used to synchronize MCU

to frame memory writing

6

SDA

Serial data input pin

7

WR

Second Data lane in 2 data lane serial interface

8

SCL

Serial clock input pin

9

CS

Chip select signal input

10

RESET

A reset pin

11

IOVCC18

Power supply 1.8/+2.8

12

IOVCC18

Power supply 1.8/+2.8

13

VCC28

Power supply +2.8

14

VCC28

Power supply +2.8

15

GND

Ground

16

GND

Ground

17

NC

No connect

18

NC

No connect

19

NC

No connect

20

NC

No connect

21

NC

No connect

22

NC

No connect

23

LEDA

Back light power supply positive



 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
