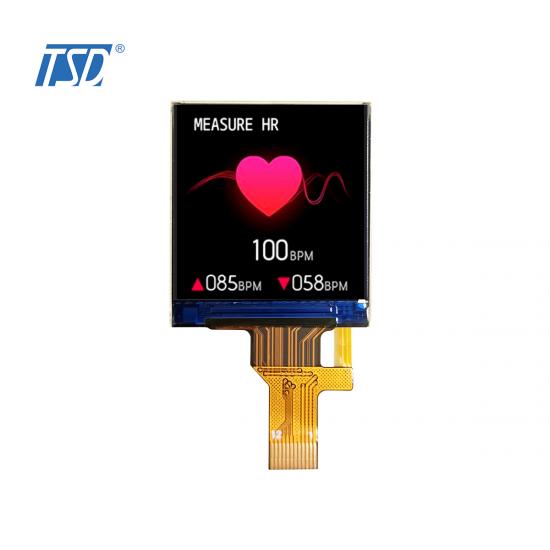

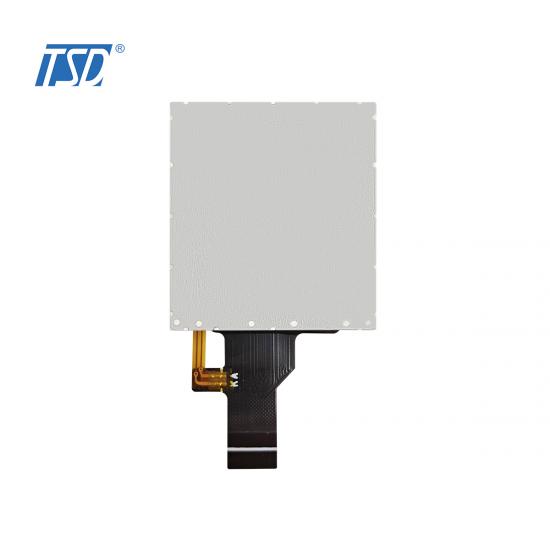

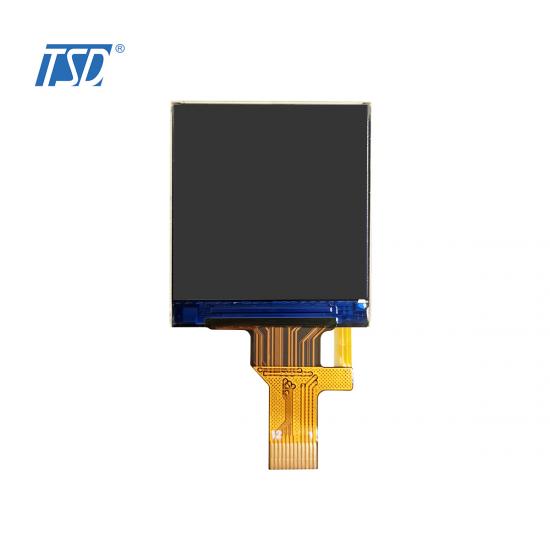

Description:

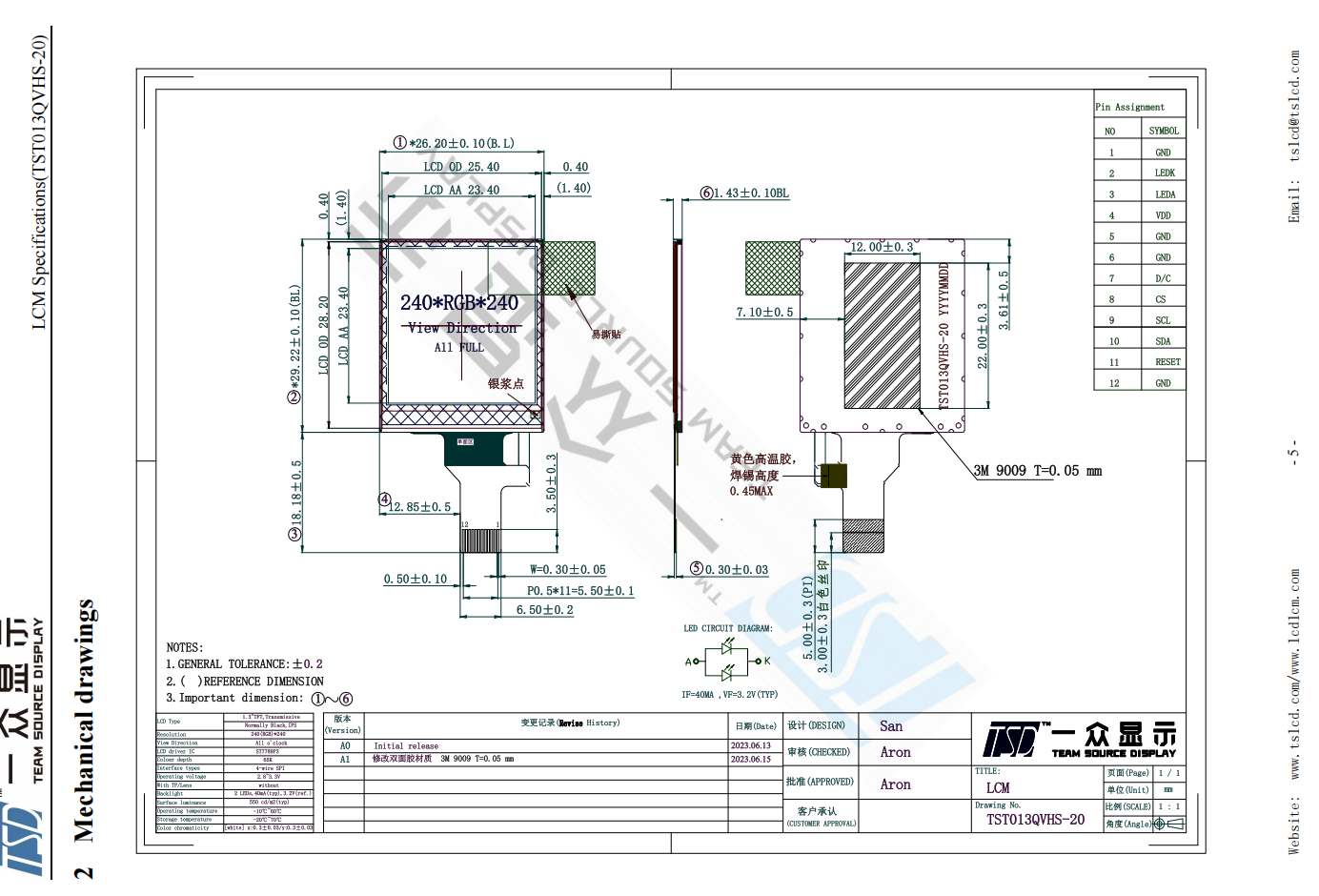

Drawing:
Specification
|
General Specification |
||
|
Part No. |
TST013QVHS-20 |
|
|
Display Size(Diagonal) |
1.3 inch |
|
|
LCD type |
Transmissive,Normally Black,ips |
|
|
Resolution |
240 x (RGB) ×240 |
|
|
View Direction |
All o’clock |
|
|
Module Outline |
26.26(H)*29.22(V)*1.43(D) |
|
|
Active Area |
23.4(H)*23.4(V) |
|
|
Backlight |
2 LEDs |
|
|
Interface |
4 wires SPI |
|
|
Driver IC |
ST7789P3 |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Operating Temperature |
-20～60 |
|
|
Storage Temperature |
-30～70 |
|
| Pin | Symbol | Description |
| 1 | GND |
System Ground. (0V)
|
| 2 | LEDK |
Backlight K Cathode input pin.
|
| 3 | LEDA |
Backlight A anode input pin.
|
| 4 | VDD |
Power supply
|
| 5 | GND |
System Ground. (0V)
|
| 6 | GND |
System Ground. (0V)
|
| 7 | D/C |
Data/Command selection pin
Low:Command
High:Data
|
| 8 | CS |
Serial communication chip select
|
| 9 | SCL |
Serial communication clock input
|
| 10 | SDA |
Serial communication data input/output
|
| 11 | RESET |
Chip reset pin(Low Active)
|
| 12 | GND |
System Ground. (0V)
|

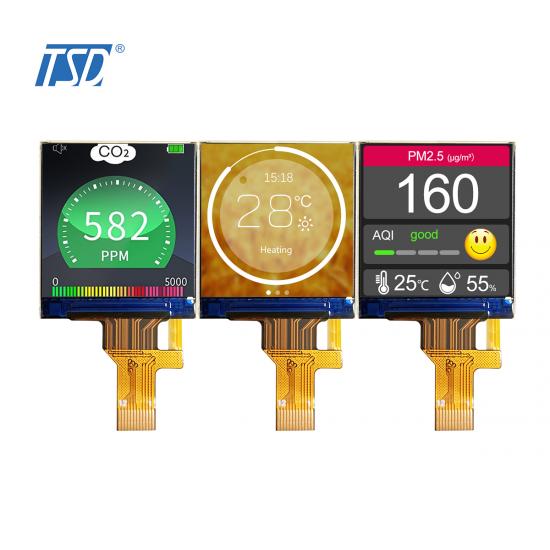

Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
