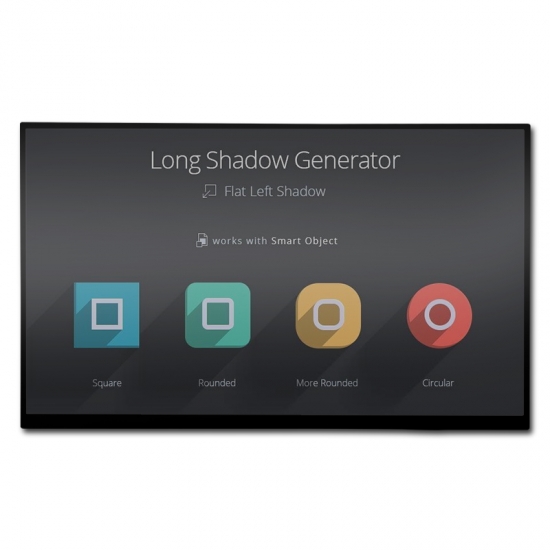

TSD Full HD 1920x1080 resolution 12.8 inch lcd display with wide temperature

  • Model Name: TST128JUW1-01
  • LCD Type: 12.8 inch TFT LCD display
  • Resolution: 1920*1080
  • Viewing angle: IPS all viewing angle
  • Brightness: 700 cd/m2
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -30 ~ +85℃
  • Storage Temperature: -40 ~ +90℃







Description:

TSD TFT item number TST128JUW1-01 is 12.8 inch, IPS TFT LCD, 1920*1080 resolution, contrast ratio 3000:1, super thin LCD panel suitable for advertizing/monitor/ tablet application. LVDS inetrface TFT lcd module, can do with touch panel. also can support customized Cover lens with your ideal logo.



Specification
Part No. TST128JUW1-01
Outline Dimension(mm) 294.4x175x6.9
Display Area(mm) 283.392x159.408
Resolution(dots) WVGA, 1920*RGB*1080
Operating temperature(°C) -30-85
Storage temperature(°C) -40-90
Number of Pixel(pixels) 1920RGB(H)xRGBx1080(V)
Touch panel without
Dot Pitch 0.1476(W)x0.1476(H)
Pixel arrangement RGB Vertical stripe
Luminance 700 cd/m2
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface LVDS
Module lifetime(Hours) 20,000-50,000

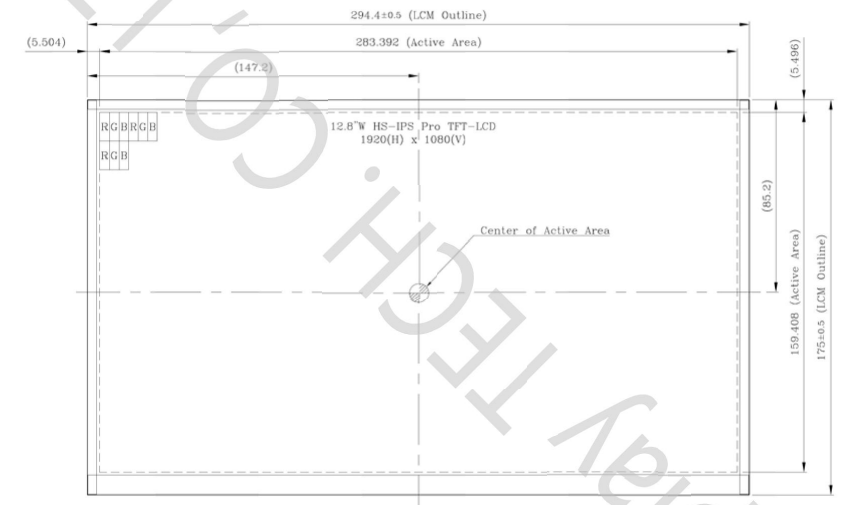

Drawing:

Interface Description:

Pin No.  Symbol Description
1 GND Power ground
2 NC/BIST No connector(BIST Pin)
3 VCC Digital Power/Vin = 3.3V
4 VCC Digital Power/Vin = 3.3V
5 GND Power ground
6 GND

Power ground

7 NC No connector(Serial interface OTP Power)
8 NC No connector(Serial interface OTP Power)
9 GND Power ground
10 ORXIN0- Negative LVDS differential data input (Odd data)
11 ORXIN0+ Positive LVDS differential data input (Odd data)
12 ORXIN1- Negative LVDS differential data input (Odd data)
13 ORXIN1+ Positive LVDS differential data input (Odd data)
14 ORXIN2- Negative LVDS differential data input (Odd data)
15 ORXIN2+ Positive LVDS differential data input (Odd data)
16 ORXCLKIN- Negative LVDS differential clock input (Odd clock)
17 ORXCLKIN+ Positive LVDS differential clock input (Odd clock)
18 ORXIN3- Negative LVDS differential data input (Odd data)
19 ORXIN3+ Positive LVDS differential data input (Odd data)
20 ERXIN0- Negative LVDS differential data input (Even data)
21 ERXIN0+ Positive LVDS differential data input (Even data)
22 ERXIN1- Negative LVDS differential data input (Even data)
23 ERXIN1+ Positive LVDS differential data input (Even data)
24 ERXIN2- Negative LVDS differential data input (Even data)
25 ERXIN2+ Positive LVDS differential data input (Even data)
26 ERXCLKIN-

Negative LVDS differential clock input (Even clock)

27 ERXCLKIN+ Positive LVDS differential clock input (Even clock)
28 ERXIN3- Negative LVDS differential data input (Even data)
29 ERXIN3+ Positive LVDS differential data input (Even data)
30 GND Power ground
31 FAULT FAULT signal output(normal=L,abnormal=H)
32 RESET Global reset pinactive low.
33 STBYB Standby mode,active low.
34-37 NC No connector(Serial interface chip enable.CSB)
38-39 GND Power ground
40 NC No connector
41-43 LEDA LED power (Anode)
44 NC No connector
45 LEDK Cathode 1
46 LEDK Cathode 2
47 LEDK Cathode 3
48 LEDK Cathode 4
48 NTC A NTC_Anode
50 NTC K NTC Cathode

Applications:



For our 12.8 inch LCD display TST128JUW1-01, it's widely using in automotiva grade applications.

Product Features:

1.12.8 inch 1920*1080 res. with 50 pins LVDS interface

2. IPS lcd full viewing angle

3.FHD high definition

4.high contrast 3000:1

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
