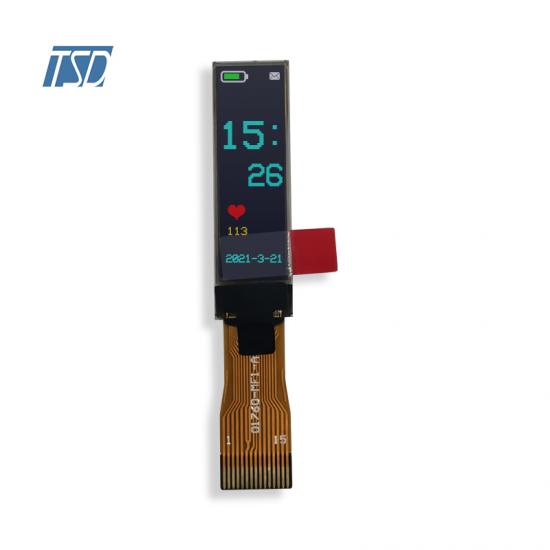

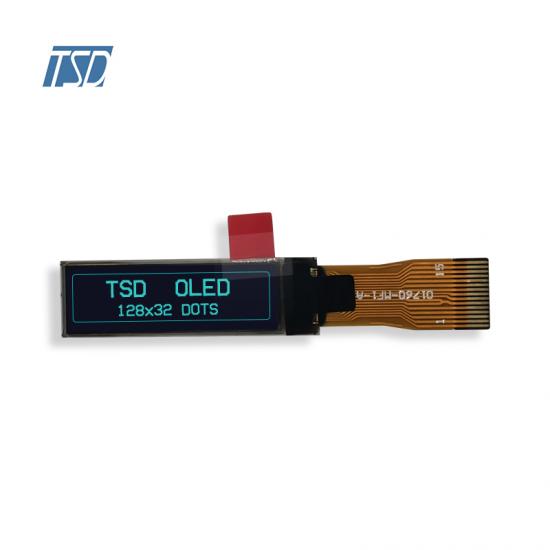

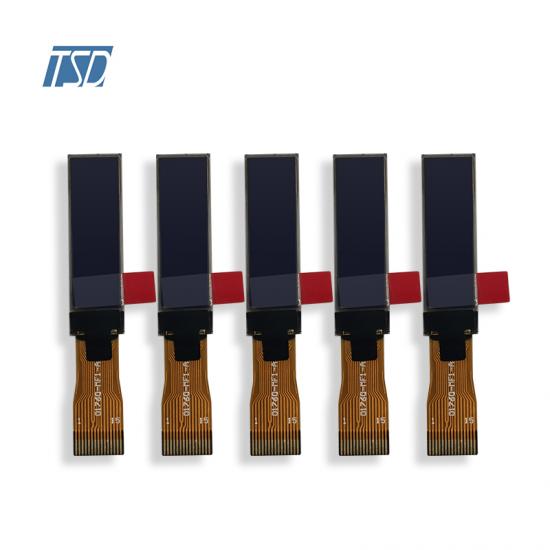

TSD 0.91 inch 128x32 dot matrix OLED display with 15 pins SPI interface

  • Model Name: TSO12832-A04
  • Type: 0.91 inch OLED Display
  • Color: White
  • Dot Matrix: 128x32 dots
  • Driver IC: SSD1316Z
  • Interface: SPI
  • Drive Duty: 1/64
  • Dot Pitch: 0.175x0.175
  • Module Weight: 0.67g
  • Operating Temperature: -40 ~ +70℃
  • Storage Temperature: -40 ~ +85℃

Description:



Team Source Display model TSO12832-A04 is a monochrome OLED display module with 128×32 dot matrix. The characteristics of

this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, 4-wire SPI, I2C interface. high technology for low consumption without backlight. the structure is very thin, and available to add with touch screen or cover glass on top.

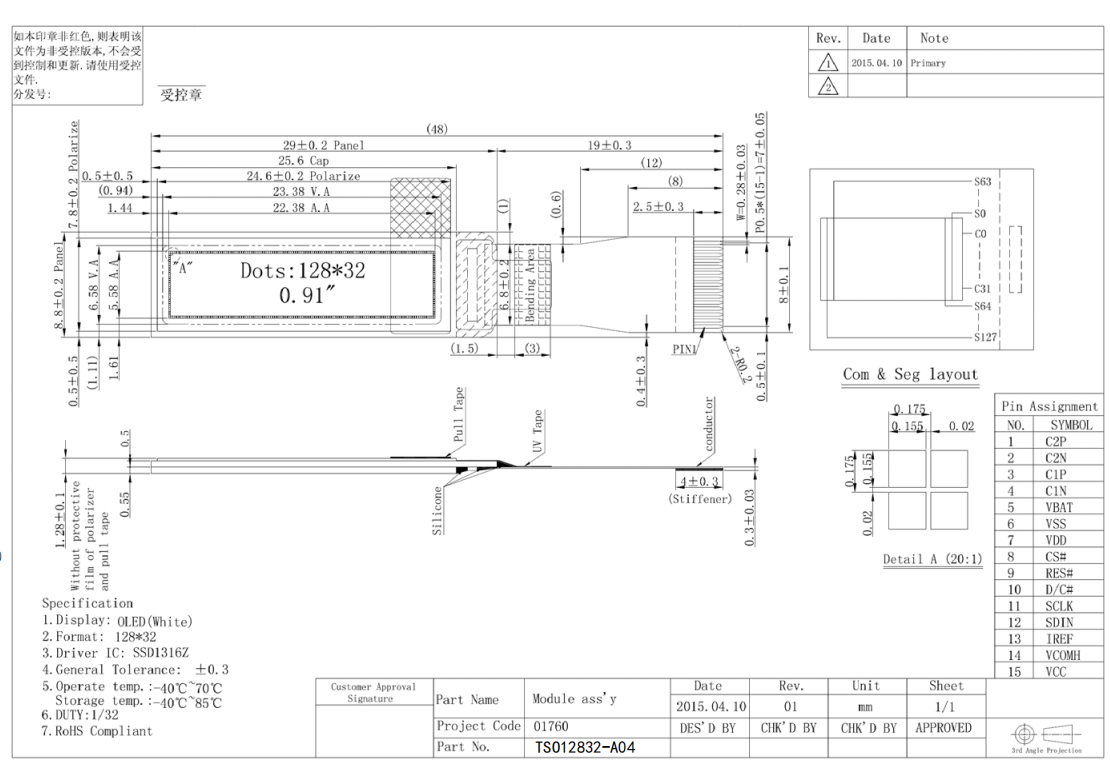

Drawing:




Specifications:



General Specification
Display mode
0.91'' OLED Monochrome Display
Part No.  TSO12832-A04
Outline Dimension(mm)

29(W)x8.8(H)x1..05(D)

Active Area(mm) 22.38(W) x 5.58(H)
Resolution(dots) 128×32 dots
Dot Size 0.155x0.155mm
Color White
Operating temperature(°C) -40 ~ +70°C
Storage temperature(°C) -40 ~ +85°C
Operating Voltage
3V
Touch panel  could support with cover glass and touch screen
Driver IC SSD1316Z
Interface SPI
Duty 1/32
Weight(g) 0.67g
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Module lifetime(Hours) 30,000-50000





Pin No.  Symbol Description
1 C2P C2P/C2N - Pin for charge pump capacitor; Connect to each other with a capacitor
2 C2N C2P/C2N - Pin for charge pump capacitor; Connect to each other with a capacitor
3 C1P C1P/CIN - Pin for charge pump capacitor; Connect to each other with a capacitor
4 C1N C1P/CIN - Pin for charge pump capacitor; Connect to each other with a capacitor
5 VBAT Power supply for charge pump regulator circuit. Table 5.1
6 vss ground pin.
7 VDD
Power supply pin for core logic operation.
8 CS#  the chip select input.(active low)
9 RES#
reset signal input pin. When the pin is LOW, initialization of the chip is
cxecuted.
10 D/C# The date/command control pin.
11 SCLK The serial clock pin.
12 SDIN The serial data pin.
13 IREF This pin is segment current reference pin. A resistor should be connected between this pin and VSS.
13 NC Not connect
14 VCOMH

This pin is the input pin for the voltage output high level for COM signals.

A capacitor should be connected between this pin and VSS.

15 VCC

Power supply for panel driving voltage. This is also the most positive power voltage supply pin. When charge pump is enabled, a capacitor should be connected between this pin and VSS.






Applications:



For this 0.91 inch white OLED Display 128x32 resolution, suitable for Industrials Equipment,

Medical devices, Household appliances, consumer products.




Product Features:



1. Wide temperature range.

2. Low power consumption.

3. Thin and light structure
