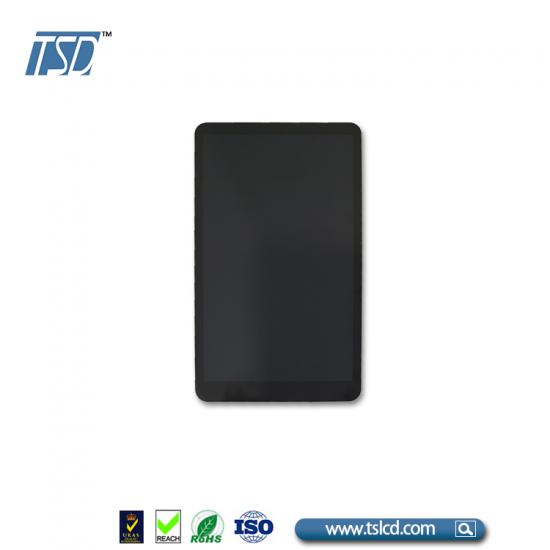

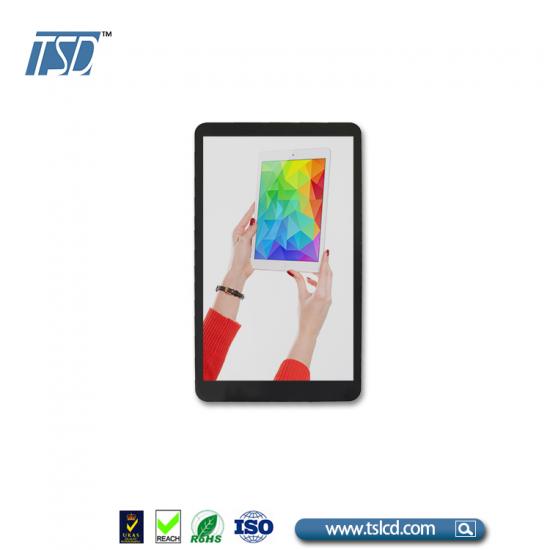

TSD 5 inch 720*1280 res MIPI interface IPS vertical type



  • Model Name: TST050HDBS-128
  • LCD Type: 5 inch TFT LCD display
  • Resolution: 720*1280
  • Viewing angle: IPS all viewing angle
  • Brightness: 380 cd/m2
  • Driver IC: ST7703
  • Interface: MIPI
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST050HDBS-128 is 5  inch 720*1280 resolution LCD display with MIPI interface, standard brightness is 450cd/m2. For this 5 inch TFT LCD module, driver IC is ST7703, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V,  this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. this 5 inch lcd is suitable for handheld devices. such as Pos machine. etc



Specification
Part No. TST050HDBS-128
Outline Dimension(mm) 65.3*119.3*1.65
Active Area(mm) 62.1*110.4
Resolution(dots) 720*RGB*1280
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 720RGB(H)xRGBx1280(V)
Touch panel without
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal white,IPS, 5.0 inch TFT
Surface treatment Antiglare
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface Digital
Brightness 450 cd/m2

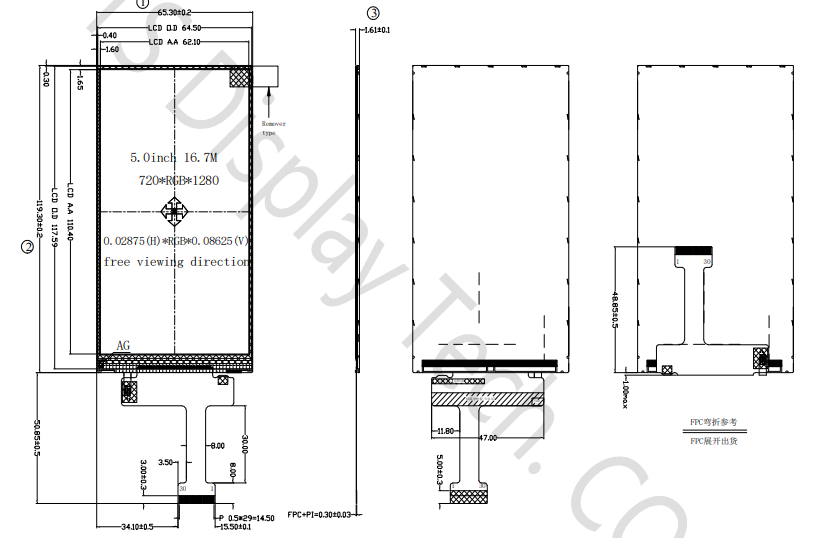

Drawing:



LCD DISPLAY



Interface Description:



Pin No.  Symbol Description
1 NC No connect
2 LEDA Backlight A Aothod input pin.
3 LEDA Backlight A Aothod input pin.
4 LEDK Backlight K Cathode input pin.
5 LEDK Backlight K Cathode input pin.
6 GND System Ground. (0v)
7 VCC2.8V Power voltage input pin+28V
8 VDDI(1.8V) Voltage input pin for logic I/O +1.8V
9 NC No connect
10 TE Tearing Effect output sianal
11 RSTB Reset input signal
12 GND System Ground. (0V)
13 D0_N MlPI data cathode input pin
14 D0_P MIPI data aothod input pin
15 GND System Ground. (0V)
16 CLK_N MlPI clock cathode input pin
17 CLK_P MlPI clock aothod input pin
18 GND System Ground.(0V)
19 D1_N MIPI data cathode input pin
20 D1_P MIPI data aothod input pin
21 GND System Ground. (0V)
22 D2_N MIPI data cathode input pin
23 D2_P MIPI data aothod input pin
24 GND System Ground. (0V)
25 D3N MlPI data cathode input pin
26 D3P MlP data aothod input pin
27 GND System Ground.(0V)
28 GND System Ground.(0V)
29 NC No connect
30 NC No connect



Applications:



For our 5 inch LCD display TST050HDBS-128, it's widely using in handheld device, Consumer electronics products.

Product Features:

1.5‘’ 720*1280res. with 30pins MIPI interface

2. IPS lcd : full viewing angle

3.high brightness up to 450nits

4.Vertical lcd type

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
