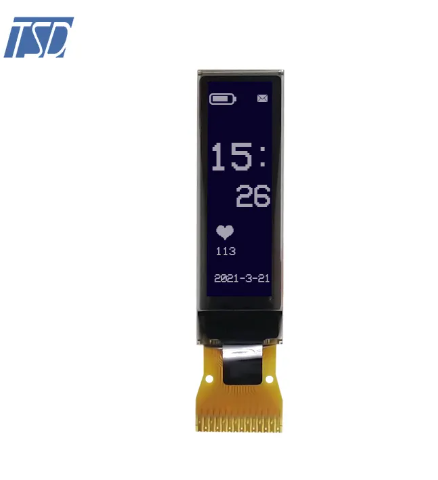

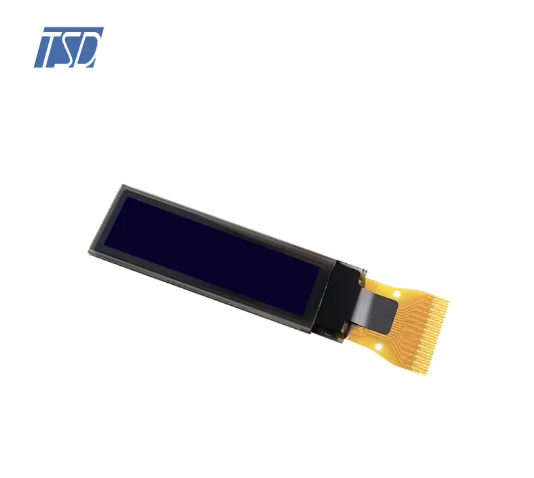

TSD 0.91 inch oled 128*32 14PIN small size OLED Customization lcd panel

 Display Color: White

Dot Matrix:128×32

Driver IC: SSD1316

Interface: I 2 C

Wide range of operating temperature: -40to 70

Description:



TSO12832-A05 is a monochrome OLED display module with 128×32 dot matrix. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.

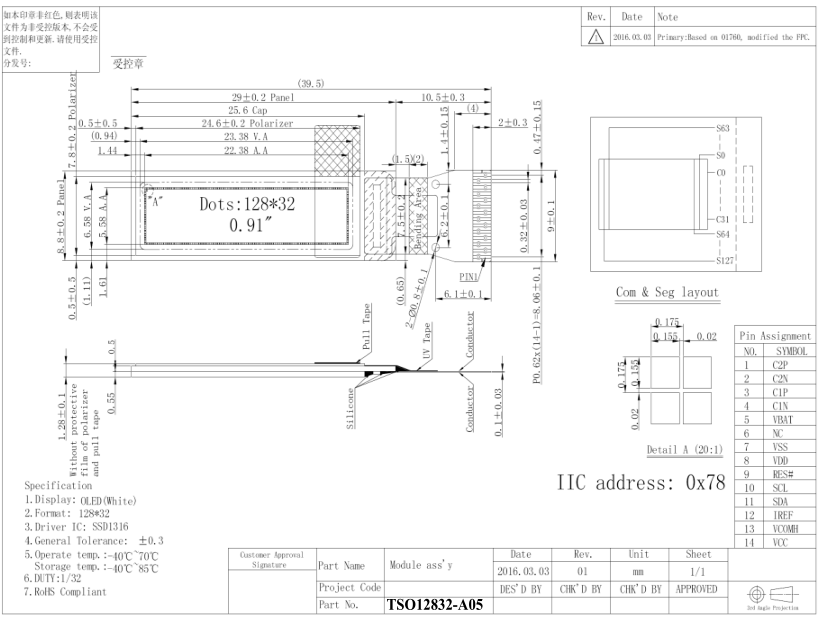

Drawing:





Specification



General Specification

Dot Matrix

128(W)×32(H)

Dot Size

0.155(W)×0.155(H)

Dot Pitch

0.175(W)×0.175(H)

Aperture Rate

78

Active Area

22.38 (W)×5.58 (H)

Panel Size

29(W)×8.8(H) ×1.05(T)

Module Size

39.5(W)×8.8(H) ×1.28(T)

Diagonal A/A Size

0.91

Module Weight

0.7±10%







Pins Description

Pin No.

Symbol

Description

1

C2P



C1P/C1N – Pin for charge pump capacitor; Connect to each other with a capacitor.

C2P/C2N – Pin for charge pump capacitor; Connect to each other with a capacitor.

2

C2N



3

C1P



4

C1N



5

VBAT

Power supply for charge pump regulator circuit

6

NC

NO connected

7

VSS

This is a ground pin.

8

VDD

ower supply pin for core logic operation.



9

RES#

This pin is reset signal input. When the pin is LOW, initialization of the chip

is executed.

10

SCL

The serial clock pin.

11

SDA

The serial data pin.

12

IREF

This pin is segment current reference pin. A resistor should be connected between

this pin and VSS.

13

VCOMH

This pin is the input pin for the voltage output high level for COM signals.

A capacitor should be connected between this pin and VSS.

14

VCC

Power supply for panel driving voltage. This is also the most positive power

voltage supply pin. When charge pump is enabled, a capacitor should be

connected between this pin and VSS.



Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
